Original price was: $26,780.00.$13,659.00Current price is: $13,659.00.

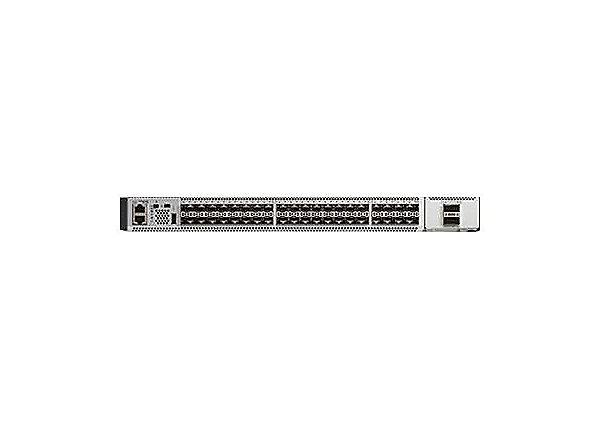

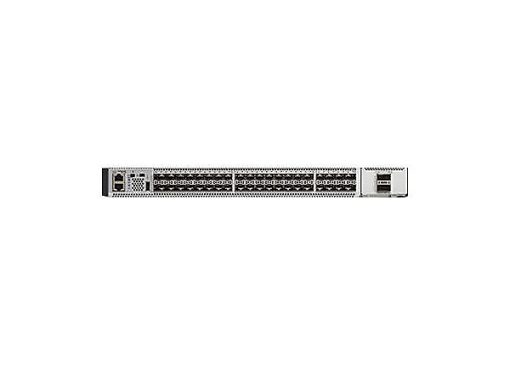

Cisco Catalyst 9500 40-port 10G switch, NW Adv. License
Call 1.888.428.6677 Option 1 To Order or For Pricing
-
Header
- Cisco Unified Computing Disti
- Cisco
- Cisco Catalyst
- 9500
- Network Advantage
- 1
-
Chassis
- RFID tag
-
Processor
- 1
- 2.4 GHZ
-
RAM
- DIMM 288-pin
- DDR4 SDRAM
- 16 GB
-
Flash Memory
- 16 GB
-
Performance
- Forwarding rate: 720 Mpps, Switching capacity (full duplex): 480 Gbps
-
Capacity
- VLAN IDs: 4000, Host IPv6 routes: 16000, Routing table entries: 64000, Indirect IPv4 routes: 64000, FNF entries: 512000, Host IPv4 routes: 32000, QoS ACL scale: 18000, Multicast scale: 48000, Security ACL scale: 18000, Switched virtual interfaces (SVIs): 4000, Indirect IPv6 routes: 32000
-
Networking
- Switch
- Network hubs and switches
- 10 Gigabit Ethernet
- Rack-mountable
- 40
- Layer 3
- RIP-2, IGMP, MSDP, PIM-SSM, VRRP, IS-IS, RIPng, BGP, OSPF, MPLS, EIGRP, RIP-1, PIM-SM
- 64K entries
- 9198 bytes
- Yes
- SNMP 2c, RMON 1, TFTP, RESTCONF, NETCONF, SNMP 3, RMON 2, SNMP 1, SNMP
- UPOE
- Non-Stop Routing (NSR), IGMP snooping, Stateful switchover (SSO), Open Shortest Path First (OSPF), Security Group Tag (SGT) caching, Class-Based Weighted Fair Queuing (CBWFQ), Location ID Separation Protocol (LISP), Third-party IP Address Management (IPAM) integration, DHCP support, Non-Stop Forwarding (NSF), Remote Switch Port Analyzer (RSPAN), TrustSec support, Cisco StackWise Virtual, Flexible NetFlow (FNF), NAT support, Hierarchical Virtual Private LAN Service (H-VPLS), Ethernet over MPLS (EoMPLS), NetFlow, Layer 3 VPN (L3VPN) support, VLAN Double Tagging (Q-in-Q), Syslog support, Zero-touch provisioning (ZTP), Encapsulated Remote SPAN (ERSPAN), Access Control List (ACL) support, PAT support, MLD snooping, Application Visibility and Control (AVC), Virtual Extensible LAN (VXLAN), Security Group Access Control List (SGACL), MACsec support, LLDP support, CoAP support, IT Service Management (ITSM) integration, Weighted Random Early Detection (WRED), Virtual Routing and Forwarding (VRF), Control plane protection (CoPP), Quality of Service (QoS), Switched Port Analyzer (SPAN), Built-in ASIC, IPv6 support, Virtual Route Redundancy Protocol (VRRP) support
- IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1x, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.3x, IEEE 802.1ae, IEEE 802.3u
-
Ports
- 40
- 10 Gigabit SFP+
-
Interface Provided
- 2 x USB 3.0, 40 x 10GBase-X SFP+
-
Power Device
- Internal power supply
- Hot-plug
- Optional
- 1+1
- 1
- 2
- 950 watt
- AC 120/230 V
- 50 – 60 hertz
- Front-to-rear air?ow
-
Miscellaneous
- Gray
- 1
- 256-bit AES
- 180,640 Hours
- FCC CFR47 Part 15, ICES-003 Class A, EN 61000-3-3, EN 60950-1, IEC 60950-1, UL 60950-1, CNS 13438 Class A, AS/NZS 60950-1, CISPR 24, CAN/CSA C22.2 No. 60950-1, EN 300386, EN 61000-3-2, EN55024, EN 55022 Class A, KN 61000-4, KN22 Class A, KN24, EN 61000-6-1, CISPR 22 Class A, Plug and Play, VCCI Class A, EN50082-1, GB 4943, CAN/CSA-C22.2 No. 60950-1, EN 300 386
-
Dimensions & Weight
- 17.5 inch
- 21.5 inch
- 1.7 inch
-
Service & Support
- Limited lifetime warranty
-
Service & Support Details
- Technical support – consulting – 90 days, Limited warranty – replacement – lifetime – response time: next business day
-
Environmental Parameters
- 32 degree Fahrenheit
- 104 degree Fahrenheit
- -4 degree Fahrenheit
- 149 degree Fahrenheit
- 5 – 90% (non-condensing)
- 5 – 95% (non-condensing)
