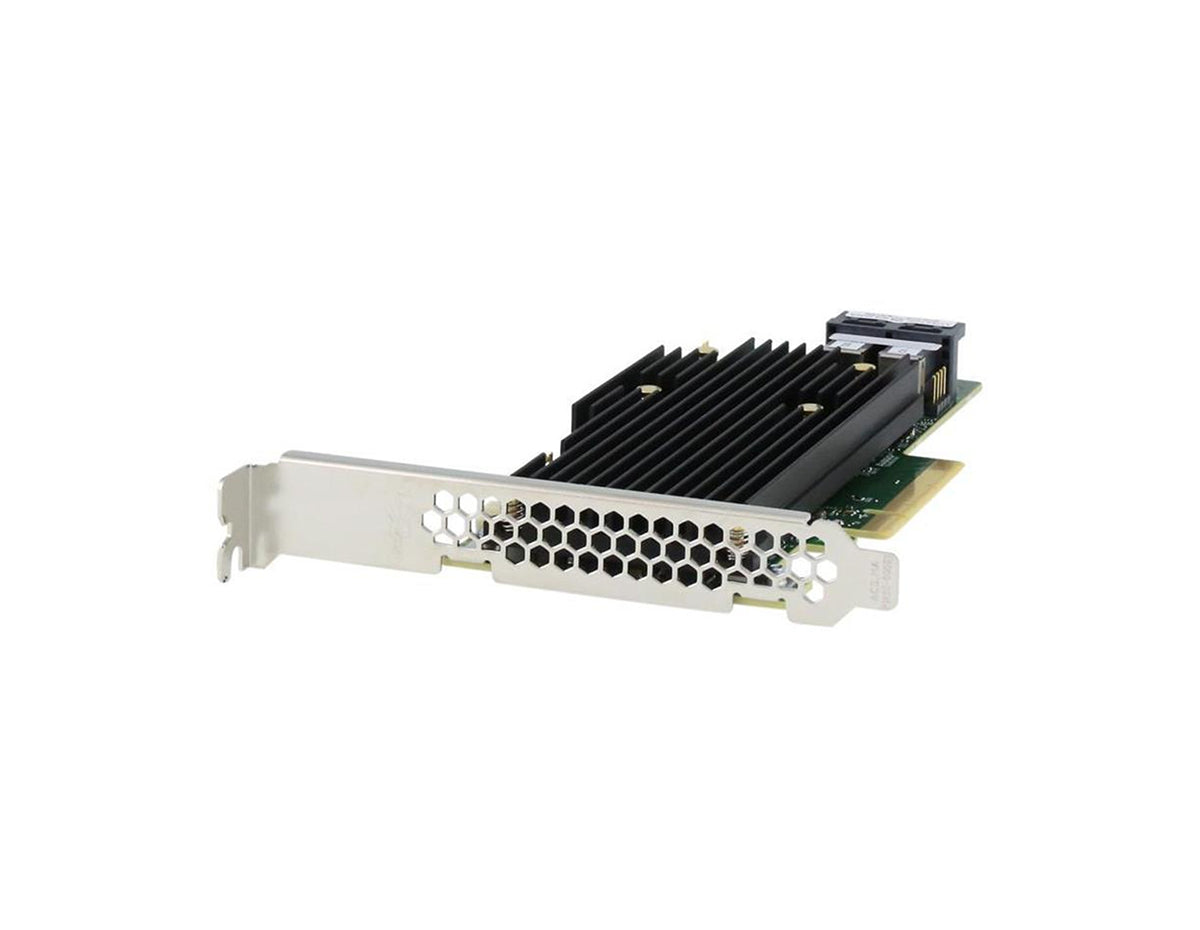

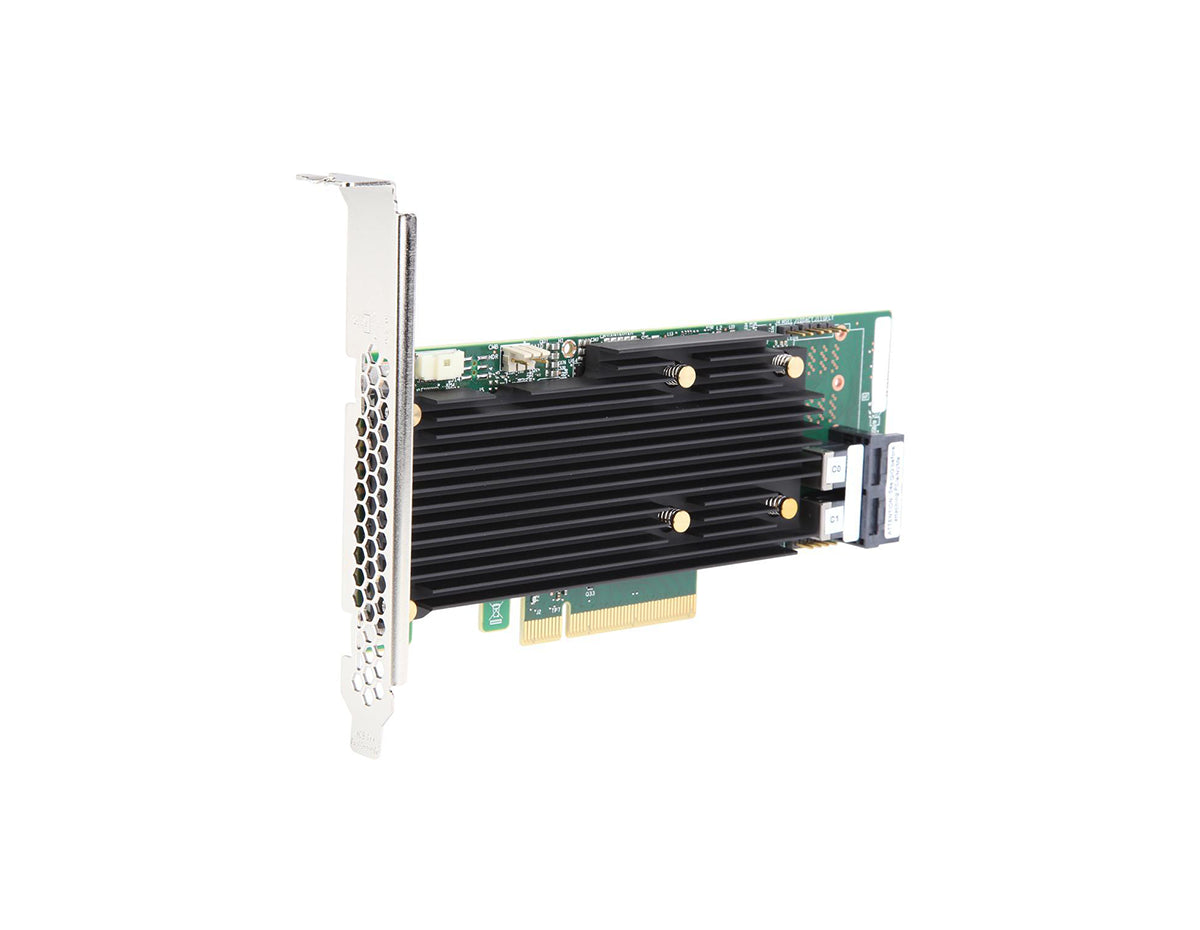

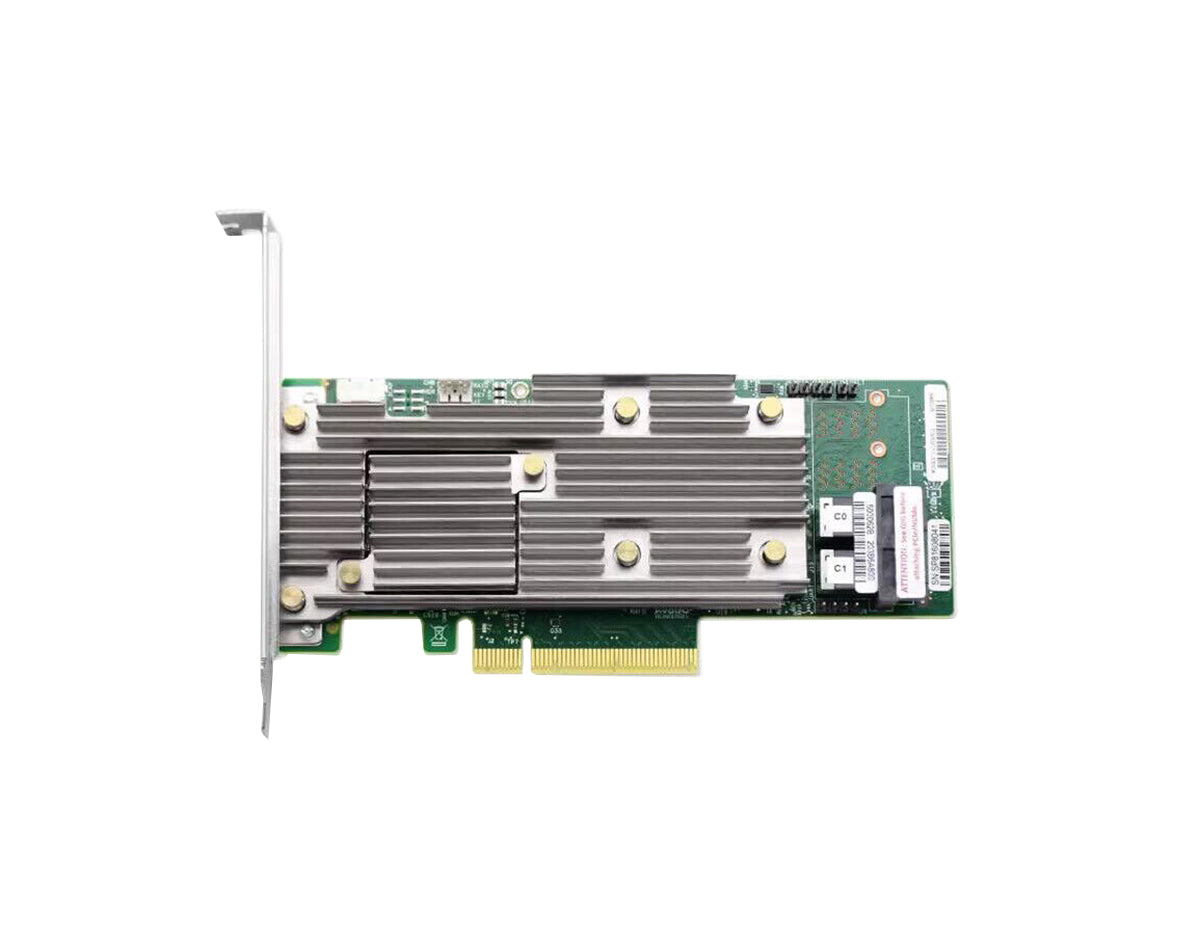

Broadcom 05-50011-02 Tri-Mode PCIe RAID Controllers
The Broadcom 05-50011-02 Tri-mode PCIe Raid controllers are an ideal solution for enterprises seeking dependable, scalable, and high-performance storage. These controllers are compatible with a diverse array of storage devices, such as NVMe, SAS, and SATA, and offer multiple RAID levels to ensure data protection. Leveraging a PCIe 3.1 host interface, these controllers can deliver a throughput of up to 12Gb/s. Furthermore, in addition to their scalability and high performance, the Broadcom 05-50011-02 Tri-mode PCIe Raid controllers also incorporate various features designed to safeguard data, including CacheVault flash cache protection and support for RAID levels 0, 1, 5, 6, 10, 50, and 60.
Quick Specs:
- Supports 12, 6, and 3Gb/s SAS and 6, 3Gb/s SATA data transfer rates
- PCIe 3.1 Host Interface
- Up to 8 storage interface PCIe links. Each link supporting x4 or x2* link widths up to 8.0 GT/s (PCIe Gen3) per lane
- RAID levels 0, 1, 5, 6, 10, 50 and 60
Please see the related tabs for the 05-50011-02 datasheet and compatible accessories.
Properties
| Product Name | Broadcom 9460-8i / 05-50011-02 Tri-Mode PCIe RAID Controller |
| Product Description | 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe RAID Controller with 8 internal ports, providing high performance and scalability for enterprise storage solutions. |
| Interface | PCIe 3.1 x8 |
| Port Configuration | 8 internal ports |
| Supported Devices | Supports NVMe, SAS, and SATA devices |
| RAID Levels | 0, 1, 5, 6, 10, 50, and 60 |
| Connector Type | Two (x4) SFF-8643 |
| Cache Memory | 2 GB 2133 MHz DDR4 SDRAM |
| Cache Protection | CacheVault flash cache protection |
| Performance Feature | Up to 12Gb/s throughput |
| Intended Application | Enterprise storage requiring reliable, scalable performance and data protection |
| Controller Type | SAS3508 |
Specifications
| Interface Type | PCIe 3.1 x8 |
| Internal Ports | 8 |
| Connector Type | Two (x4) SFF-8643 |
| Device Compatibility | SAS, SATA, and NVMe with Tri-Mode support |
| Maximum Device Support | SAS/SATA: 240, NVMe: 24 |
| Cache Memory | 2 GB 2133 MHz DDR4 SDRAM |
| Power Consumption | Typical 14.16W |
| Operating Voltage | 12V ±8%; 3.3V ±9% |
| Reliability | MTBF > 3,000,000 hours at 40°C |
| Management Software | LSA, StorCLI, HII |
| OS Compatibility | Windows, VMware vSphere/ESXi, Red Hat, SUSE, Ubuntu, Citrix XenServer, CentOS, Debian, Oracle Linux, Fedora, FreeBSD |
| Certifications | FCC 47 CFR part 15 Subpart B, Class B |
| Physical Dimensions | 6.127 in x 2.712 in |
| Operating Temperature Range | 0°C to 55°C |
