Description

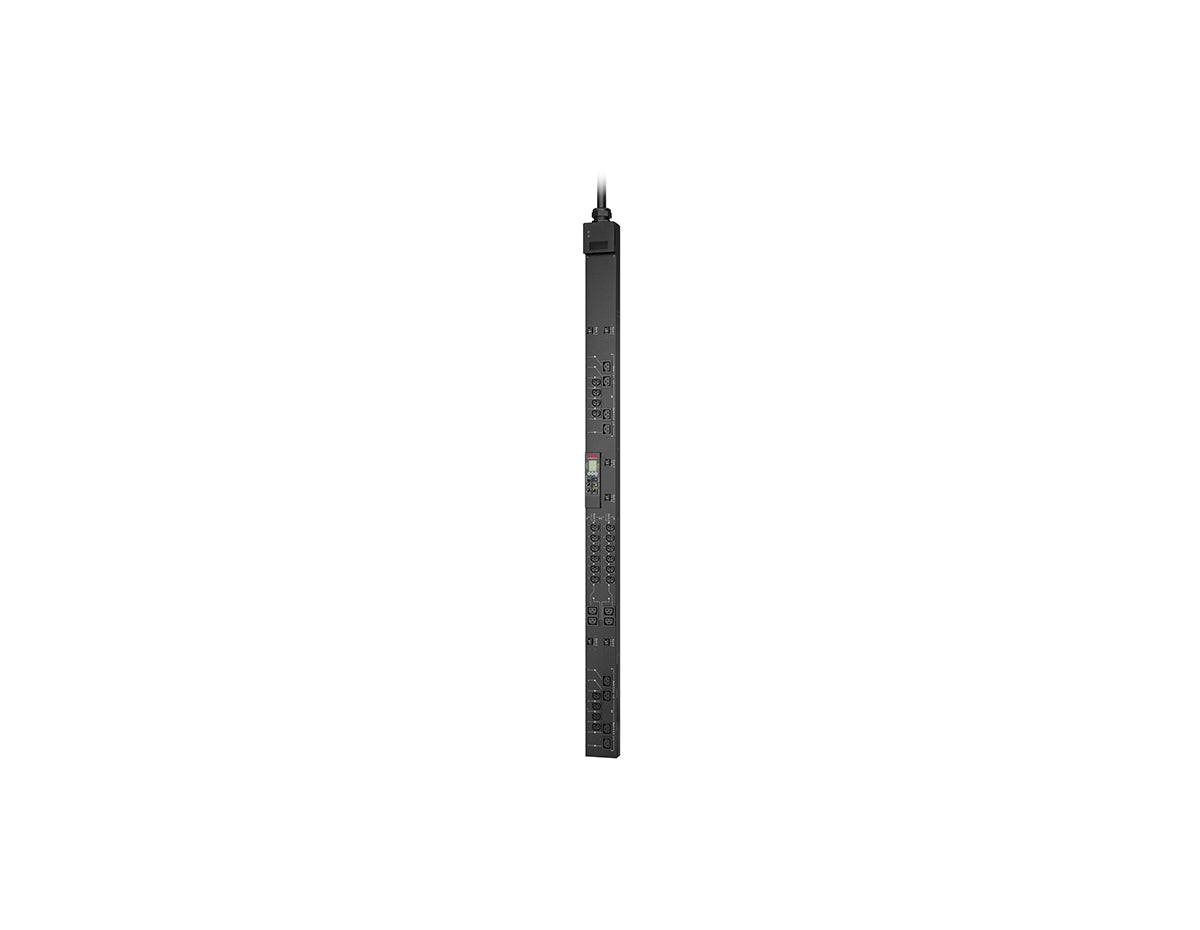

APC Rack PDU 9000 Switched APDU9966, 0U, 17.3kW

The APC Rack PDU 9000 Switched APDU9966 provides advanced, high-capacity power management for enterprise environments. With a 3-phase 208V input and a line current limit of 48A, this PDU delivers a total load capacity of 17.3kW. It features 20 C13/C15 and 12 C19/C21 output sockets, powered by an IEC 60309 60A input plug with a 6 ft (1.8 m) cord.

This switched PDU enables remote outlet control, load monitoring, and advanced configuration options. It supports secure protocols such as SNMP and Redfish, allowing seamless integration with APC’s data center management solutions. The unit operates at 50/60 Hz and can handle environmental conditions ranging from -5°C to 60°C with up to 95% humidity tolerance.

Built to meet rigorous standards, including UL, FCC Part 15, and IEC 62368-1, the APDU9966 ensures secure, scalable power distribution in mission-critical infrastructure.

Key Features:

• Load Capacity: 17.3kW with a 48A line current and 60A input current limit.
• Outlets: 20 C13/C15 and 12 C19/C21 output sockets.
• Input Plug: IEC 60309 60A 3P+PE with a 6 ft cord.

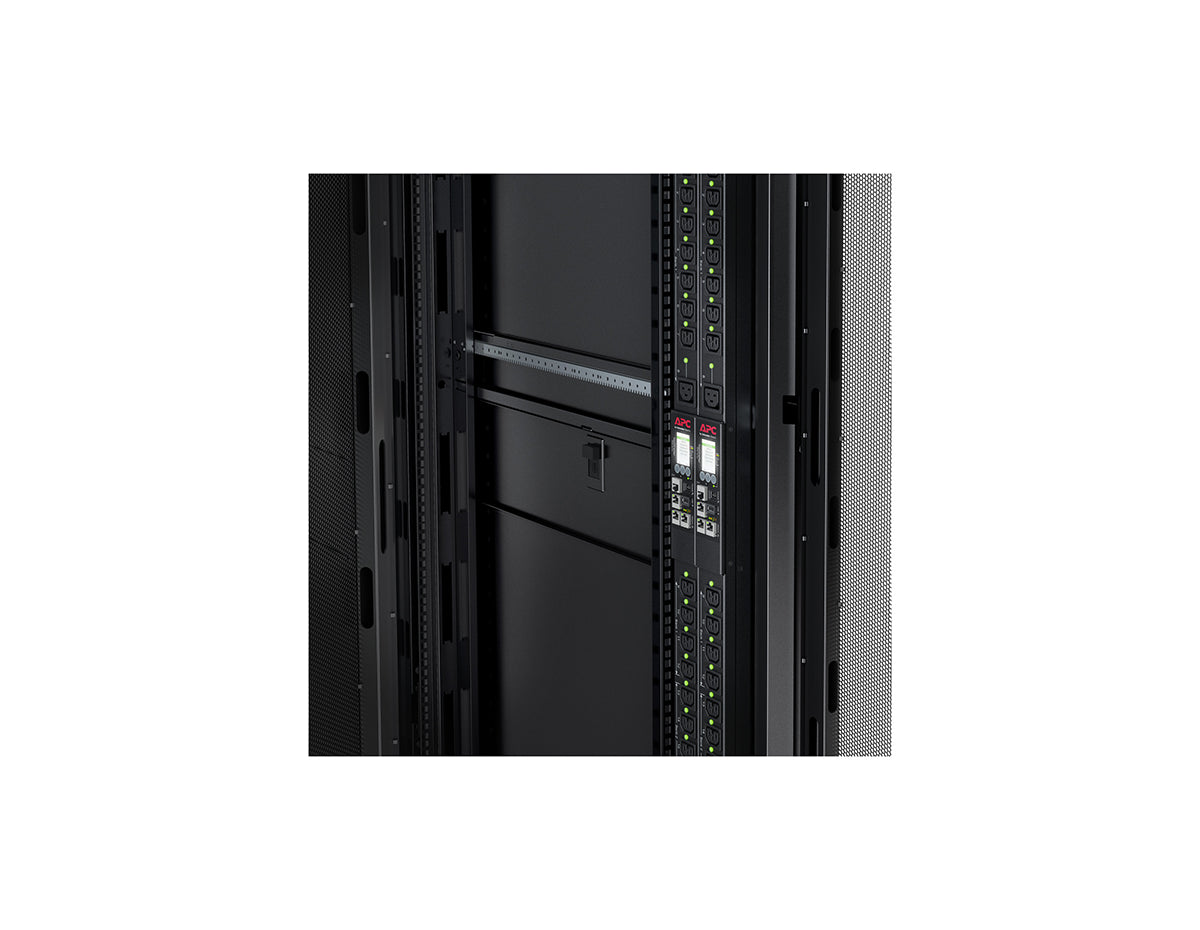

• Design: 0U vertical rack-mounted for optimal space use.
• Advanced Features: Remote outlet control, secure management protocols (SNMP, Redfish), and load monitoring.
• Input Voltage: 208V 3-phase at 50/60 Hz.
• Weight: 30.9 lbs (14 kg) with dimensions of 72.17″ height, 4.37″ width, and 2.99″ depth.
• Compliance: UL Listed, FCC Part 15 Class A, IEC 62368-1 certified.
• Included Accessories: Installation guide, rack mounting brackets, and safety guide.

Why Choose the APC Rack PDU APDU9966?

This PDU offers powerful, scalable, and secure power distribution for large-scale enterprise applications. Its switched outlet control and remote management capabilities ensure uptime and efficiency for critical IT environments.

Invest in the APC Rack PDU 9000 Switched APDU9966 to optimize your infrastructure power management.
