Call for Price
60 GHz radar for area and traffic monitoring 24/7, 95° coverage to detect, classify, and track objects, Area and road monitoring profiles, Monitor vehicle speeds up to 200 km/h (125 mph), Easily connect using PoE out and edge-to-edge, Compact design with integrated LED strip
Description

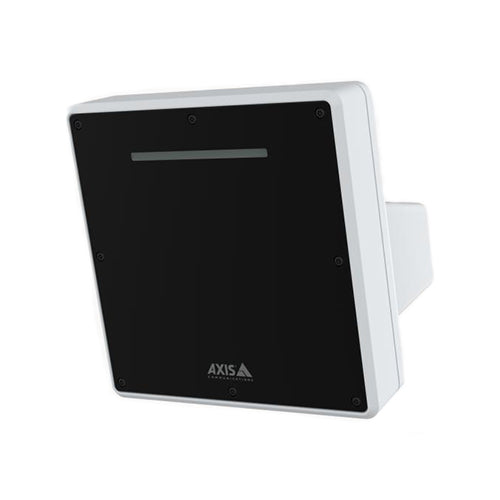

AXIS D2210-VE Security Radar, Black front. 61.0–61.5 GHz, FMCW, for pole and wall mount. Reliable 95 degrees horizontal field of detection 24/7 with built-in analytics including classification of humans and vehicles. Optimized for both area monitoring and traffic monitoring. Complement to video surveillance enables filtering on distance, customized detection zones, Radar Autotracking and Radar Autotracking for PTZ cameras. Trigger events to activate camera recording, audio notification or light source for deterrence. Integrated dynamic LEDs for deterrence. Open API for software integration, microSD/SDHC memory card slot for edge storage. 30W PoE out to power an additional device, 1 input and 1 output ports, 24 V DC. Powered by PoE (IEEE 802.3bt, Type 3 Class 6) or DC 8-28V. IP66, IK08 and NEMA 4. Operating conditions -40°C to 60°C (-40°F to 140°F).
Properties
| Product Name | AXIS D2210-VE Security Radar (02770-001) |
| Description | 60 GHz radar for continuous area and traffic monitoring, with object detection, classification, and tracking capabilities. |
| Frequency Range | 61.0–61.5 GHz FMCW for high-accuracy object detection and tracking. |
| Field of Detection | 95° horizontal field of view, ideal for both area and traffic monitoring applications. |
| Object Classification | Built-in analytics classify objects as humans or vehicles for accurate monitoring. |
| Detection Range | Monitors vehicle speeds up to 200 km/h (125 mph). |
| Profiles | Includes area and road monitoring profiles to optimize for specific monitoring scenarios. |
| Connection | Type PoE+ (IEEE 802.3bt, Type 3 Class 6) with PoE out up to 30W to power an additional device; also supports 24 V DC input. |
| Integrated LEDs | Dynamic LED strip for visual deterrence and status indication. |
| Memory | Supports microSD/SDHC card slot for edge storage. |
| Event Management | Triggers events for integrated or external devices to activate camera recording, audio notification, or light deterrence. |
| API Compatibility | Open API allows integration with third-party software, enabling customized use cases. |
| Housing Color | Black front for discreet installations. |
| Mounting Options | Supports pole and wall mounting for flexible installation. |
| IP and IK Ratings | IP66-rated for water and dust resistance; IK08-rated for impact protection. |
| Temperature Range | Operates reliably in temperatures from -40°C to 60°C (-40°F to 140°F). |
| Weatherproofing | Complies with NEMA 4 standards for outdoor resilience. |
| PTZ Integration | Supports radar autotracking for PTZ cameras, enhancing tracking capabilities. |
Specifications
| Radar Frequency | 61.0–61.5 GHz FMCW for precise object detection. |
| Field of Detection | 95° horizontal detection angle for area and traffic applications. |
| Object Tracking | Continuous tracking with classification of humans and vehicles. |
| Detection Speed | Capable of detecting and monitoring vehicle speeds up to 200 km/h (125 mph). |
| Connection Type | Powered by PoE+ (IEEE 802.3bt, Type 3 Class 6) or 24 V DC. |
| PoE Output | Provides up to 30W PoE out to power an additional device. |
| Event Triggers | Customizable triggers for activating cameras, audio, or lights upon detection. |
| LED Strip | Integrated dynamic LED for visual deterrence and status display. |
| Edge Storage | microSD/SDHC memory card slot supports local storage. |
| Environmental Rating | IP66-rated for dust and water resistance; IK08 for impact resistance. |
| Operating Temperature Range | -40°C to 60°C (-40°F to 140°F). |
| Mounting Compatibility | Pole and wall mounting options for varied installations. |
| API Integration | Open API for third-party software compatibility. |
| Profiles | Area and road monitoring profiles for tailored detection. |
| PTZ Camera Support | Enables radar autotracking with compatible PTZ cameras. |
| Certifications | Compliant with NEMA 4 for reliable outdoor performance. |
