Call for Price
Zone 1-certified high-speed PTZ dome camera, HDTV 1080p at 50/60 fps, with 40x optical zoom, Axis Lightfinder 2.0, Autotracking 2 and orientation aid, TPM, FIPS 140-2 level 2 certified, ATEX, IECEx, EAC and IA; Zone 1, 21
Description

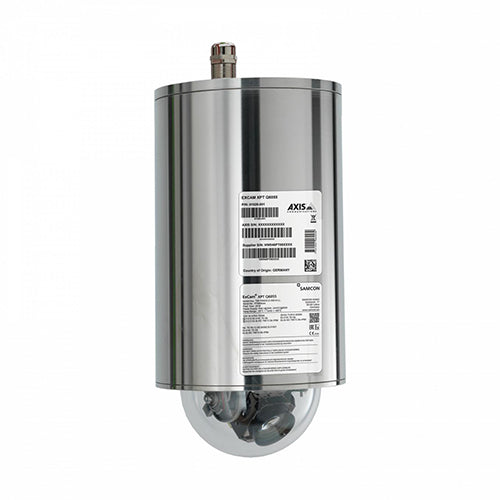

AXIS ExCam XPT Q6075 Explosion-Protected PTZ Camera (01928-001)
The ExCam XPT Q6075 is a high-quality camera that provides 40x optical zoom and excellent video resolution in HDTV 1080p. It also comes equipped with several Axis analytic applications that ensure the safety of personnel and equipment. This PTZ dome camera is much lighter than traditional positioning cameras, weighing only 20 kg, and it is enclosed in a robust stainless-steel explosion-protected housing. Furthermore, it is certified (ATEX, IECEx, EAC, and IA) for use in potentially combustible environments.
Quick Specs:
- TPM, FIPS 10-2 level 2 certified
- Autotracking 2 and orientation aid
- HDTV 1080p at 50/60 fps, with 40x optical zoom
- ATEX, IECEx, EAC and IA; Zone 1,21
Please see the related tabs for the 01928-001 datasheet and compatible accessories.
Properties
| Properties | XPT Q6075 |
| Description | AXIS ExCam XPT Q6075 is a high-performance PTZ camera that offers superior light sensitivity for a clear, sharp overview and remarkable detail in near darkness. Enclosed in a stainless-steel housing, it’s certified (ATEX, IECEx, EAC, and IA) for use in potentially combustible environments. |
| Product Family | Axis Excam Cameras |
| Product Type | Explosion-protected Camera |
| Image sensor | 1/2.8″ progressive scan RGB CMOS |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR |
| PoE Class | 4 |
| Connectors | EXTB-3 Junction Box ExCam: 10 terminal clamps UT 2.5 2 conductor terminal USLKG 5.3 3 M20 cable entries |
| Signed firmware | Yes |
| Secure boot | Yes |
| TPM | Yes |
| Remote focus | – |
| Remote zoom | – |
| Local storage (memory card slot) | Yes |
| Outdoor Ready | Yes |
| IP rating | IP66, IP68 |
| DC input voltage | 22-26 V |
| Max consumption | 60 W |
| Dimensions | ø 195 mm (7 11/16 in) x 378 mm (14 7/8 in) |
| Weight | 20 kg (44.1 lb) |
| Operating Temperature | -50 °C to 50 °C (-58 °F to 122 °F) |
| Event actions | Day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap PTZ: PTZ preset, start/stop guard tour |
| File upload via FTP, SFTP, HTTP, HTTPS network share and email | |
| Notification via email, HTTP, HTTPS and TCP | |
| MQTT publish | |
| Applications | AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, autotracking 2, active gatekeeper Basic analytics (not to be compared with third-party analytics): object removed, enter/exit detector, object counter Support for AXIS Camera Application Platform enabling installation of third-party applications |
Specifications
| Specifications | XPT Q6075 |
| System on chip (SoC) Model | ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Min illumination/ light sensitivity (Color) | 0.1 lux |
| Min illumination/ light sensitivity (B/W) | 0.002 lux |
| Max video resolution | 1920×1080 |
| Max frames per second | 50/60 |
| Electronic image stabilization | – |
| Focal length | 4.25 – 170 mm |
| Pan/Tilt/Zoom | Pan: 360° endless, 0.05°–450°/s Tilt: 180°, 0.05°–450°/s Zoom: 40x optical, 12x digital, Total 480x zoom E-flip, 256 preset positions, tour recording (max 10, max duration 16 minutes each), guard tour (max 100), control queue, on-screen directional indicator, orientation aid PTZ, set new pan 0°, adjustable zoom speed, focus recall |
| Horizontal field of view | 65.1-2 ° |
| Vertical field of view | 39.1-1.18 ° |
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| Motion JPEG | Yes |
| Cybersecurity | Signed firmware, brute force delay protection, digest authentication, password protection, AES-XTS-Plain64 256bit SD card encryption, Axis Edge Vault cybersecurity platform TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure keystore, secure boot, IEEE 802.1X (EAP-TLS), HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| Certifications | Model key: T08-TNXCD-LL.H-005.A-T ATEX: II 2G Ex d IIC T6 Gb, II 2D Ex tb IIIC T80°C Db Certificate: TÜV 18 ATEX 8218X IECEx: Ex d IIC T6 Gb, Ex tb IIIC T80°C Db Certificate: IECEx TUR 18.0023X EAC Ex: Ex d IIC T6 Gb, Ex tb IIIC T80°C Db Series: T8, Model: T08-TNXCD. Certificate: RU C-DE.HA65.B.01652/22 IA: Ex d IIC T6 Gb, Ex tb IIIC T80°C Db Certificate: MASC MS/18-3256X UKCA: II 2 G Ex db IIC T5 Gb, II 2 D Ex tb IIIC T95 °C Db Certificate: TÜV 22 UKEX 7137 X EXTB-3 Junction Box ExCam: Model key: T12-3M20 ATEX: II 2 G Ex eb IIC T5 Gb, Ex II 2 D Ex tb IIIC T95°C Db IP66 Certificate: PTB 99 ATEX 3103 IECEx: Ex e IIC T5 Gb, Ex IIIC T95°C Db IP66 Certificate: IECEx PTB 06.0026 EAC Ex: 1Ex e IIC T5 Gb X, Ex tb IIIC T95°C Db X Certificate: RU C-DE.AA71.B.00120 |
Accessories
| Included accessories | Pre-connected 5 m (16 ft) ASKDP03-T Armoured Cable ExCam, AXIS T8154 60 W SFP Midspan, EXTB-3 Junction Box ExCam, AXIS Surveillance Card 128 GB, Installation guide, Windows® decoder 1-user license |
| SKDP03-T | Non-armored data and power cable |
| ASKDP03-T | Armored data and power cable |
| ExConnection Rail 4-Port PoE | Four 30 W PoE ports |
| ExConnection Rail 8-Port PoE | Eight 30 W PoE ports |
| Pole Mount 110-150 mm, stainless steel | |
| Wall Mount ExCam XPT | |
| Ceiling Mount ExCam XPT | |
