Description

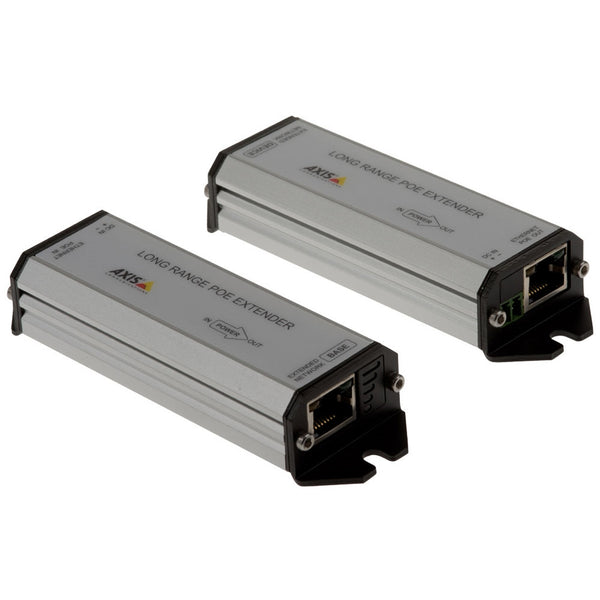

AXIS Long Range PoE Extender Kit

The AXIS Long Range PoE Extender Kit is a robust and cost-effective solution designed to extend the reach of your network and Power over Ethernet (PoE) connections. This kit allows for the installation of Axis network devices at distances far beyond the standard 100 m (328 ft) Ethernet cable limit, supporting connections up to 1000 m (3280 ft). It is compatible with both IEEE 802.3af and IEEE 802.3at PoE devices, providing flexibility for various network setups. The rugged design makes it ideal for harsh environmental conditions, with an extended temperature range and NEMA TS 2 compatibility for reliable outdoor and industrial applications.

Key Features:

• Extends Ethernet and PoE Connections: Supports distances up to 1000 m (3280 ft), allowing for installations far from the power source.
• IEEE 802.3af and IEEE 802.3at Support: Compatible with a wide range of PoE and PoE+ devices.
• Rugged Design: Built to withstand harsh environments with a wide operating temperature range from -40 °C to 70 °C (-40 °F to 158 °F).
• Cost-Efficient Solution: Eliminates the need for additional network infrastructure, reducing overall installation costs.
• NEMA TS 2 Compatible: Ensures reliable performance in industrial and transportation applications.

Technical Specifications:

• Data Rate: 100 Base-TX, 10 Base-T
• Maximum Distance: Up to 1000 m (3280 ft)
• Connectors: RJ45, 2-pin DC power
• Network Cables: CAT5e, CAT6
• Power Input: PoE (IEEE 802.3af Type 1 Class 3) or PoE+ (IEEE 802.3at Type 2 Class 4), DC power 57 V
• Power Output: PoE (IEEE 802.3af Type 1 Class 3) or PoE+ (IEEE 802.3at Type 2 Class 4)
• Operating Conditions: -40 °C to 70 °C (-40 °F to 158 °F), max humidity 85% (non-condensing)
• Dimensions: 120 x 36 x 23 mm (4.7 x 1.4 x 0.9 in)
• Weight: 100 g (0.2 lb)
• Approvals: EMC, Safety, NEMA TS 2, Environment

For more information about the AXIS Long Range PoE Extender Kit, visit the Axis product page.
