Call for Price
Provides sharp and clear video for effective indoor surveillance, Offers a 128° horizontal field of view ideal for covering large areas, 2688×1520 (4 MP) to 320×240.
Description

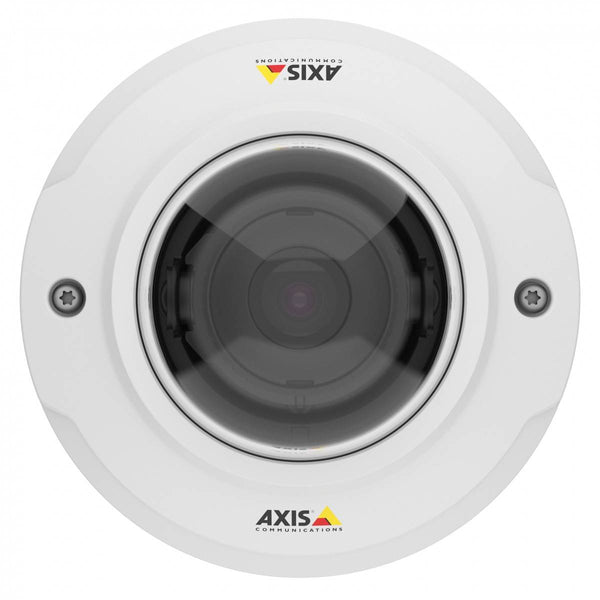

AXIS M3046-V 2.4 mm Network Camera
The AXIS M3046-V 2.4 mm Network Camera is a compact, fixed mini dome camera that delivers excellent 4 MP video quality. With Wide Dynamic Range (WDR) and HDMI support, it is ideal for surveillance in areas with varying light conditions. The camera features a 2.4 mm lens offering a wide field of view, making it suitable for retail stores, offices, and other indoor spaces. AXIS Zipstream technology reduces bandwidth and storage requirements without sacrificing image quality. The vandal- and dust-resistant design makes it a reliable choice for demanding environments.
Key Features:
- 4 MP Video Quality: Provides sharp and clear video for effective indoor surveillance.
- WDR for Challenging Lighting: Ensures high-quality images in scenes with both bright and dark areas.
- 2.4 mm Wide-Angle Lens: Offers a 128° horizontal field of view, ideal for covering large areas.
- HDMI Support: Enables live streaming to public view monitors for enhanced security.
- Axis Zipstream Technology: Reduces bandwidth and storage requirements while maintaining image quality.
- Vandal- and Dust-Resistant Design: IK08 and IP42-rated for protection against impacts and dust.
Technical Specifications:
- Image Sensor: 1/3” progressive scan RGB CMOS
- Lens: 2.4 mm, F2.2, horizontal field of view 128°, vertical field of view 72°
- Resolution: 2688×1520 (4 MP) to 320×240
- Video Compression: H.264, Motion JPEG
- Power: Power over Ethernet (PoE) IEEE 802.3af/at, max 3.2 W
- Operating Conditions: 0 °C to 40 °C (32 °F to 104 °F)
- Dimensions: Height: 56 mm (2.2 in), Diameter: 101 mm (4.0 in)
- Weight: 180 g (0.40 lb)
For more information about the AXIS M3046-V 2.4 mm Network Camera, visit the Axis product page.
This product has reached its end-of-life. The recommended replacement model is M3066-V (01708-001)
Properties
| Product Name | AXIS M3046-V 2.4 mm Network Camera |
| Description | The AXIS M3046-V is a compact fixed mini dome network camera offering 4 MP resolution, ideal for indoor surveillance. Equipped with WDR, HDMI output, and a wide-angle lens, it provides reliable monitoring in varying light conditions. Its IK08 and IP42 ratings ensure durability in demanding environments. |
| Resolution | 2688×1520 (4 MP) at 30 fps |
| Optical Technology | Wide Dynamic Range (WDR) for enhanced image quality in challenging lighting |
| Lens | 2.4 mm, F2.2, horizontal field of view 128°, vertical field of view 72° |
| Power Supply | Power over Ethernet (PoE) IEEE 802.3af/at, max 3.2 W |
| Dimensions | Height: 56 mm (2.2 in), Diameter: 101 mm (4.0 in) |
| Weight | 180 g (0.40 lb) |
| Mounting Options | Ceiling or wall mount for flexible installation |
| Environmental Suitability | Indoor-rated with vandal resistance |
| Impact Resistance | IK08-rated for impact resistance |
| Ingress Protection | IP42-rated against dust ingress |
| Bandwidth Optimization | Axis Zipstream technology with H.264 and Motion JPEG support |
| HDMI Output | Supports HDMI output for live video streaming to public view monitors |
| Usage Environments | Suitable for retail stores, offices, and similar indoor areas |
| Color | Standard Axis white finish for indoor settings |
| Compliance | RoHS and REACH compliant |
Specifications
| Image Sensor | 1/3” progressive scan RGB CMOS |
| Field of View | Horizontal: 128°, Vertical: 72° |
| Low-Light Performance | Day/night functionality for reliable performance in low-light conditions |
| Bandwidth Efficiency | Axis Zipstream technology reduces storage needs by up to 50% |
| Temperature Range | Tested to operate from 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity Range | Supports 10% to 85% relative humidity (non-condensing) |
| Material Composition | Constructed from durable materials suitable for indoor public areas |
| Noise Reduction | Integrated noise reduction for clear imaging in low-light scenes |
| Color Consistency | White finish to match indoor Axis camera installations |
| Reliability | Verified for stable operation in continuous 48-hour testing |
| Certifications | CE, FCC, UL certified for indoor use |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU) |
| Video Compression | Supports H.264 and Motion JPEG formats for efficient data streaming |
| Reliability Rating | Verified for up to 10 years operational life in indoor environments |
| Firmware Updates | Supports remote firmware updates for security |
| Installation | Factory-focused lens for quick installation |
