Description

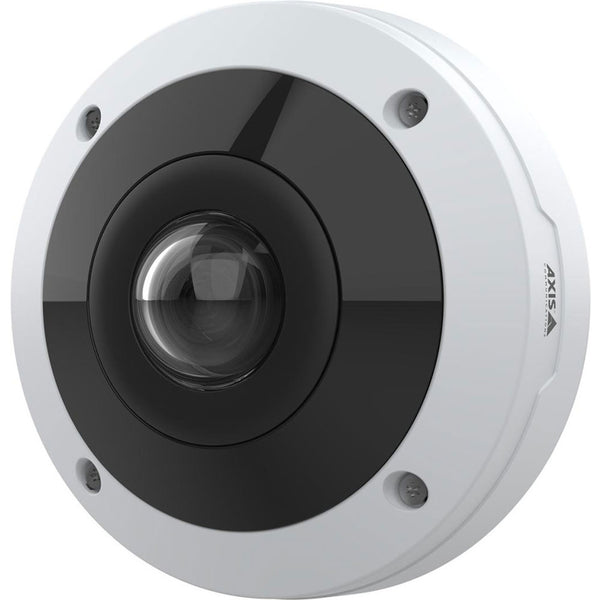

AXIS M4318-PLR 12MP 360° Fisheye Panoramic Camera (02834-001)

The AXIS M4318-PLR is a high-performance panoramic camera that ensures total situational awareness with its 360° fisheye lens. Designed for versatile environments, this camera features built-in IR illumination for clear imagery in complete darkness, Forensic WDR for enhanced details in challenging lighting, and Lightfinder technology for exceptional color clarity in low light. With advanced analytics powered by deep learning, the M4318-PLR enhances security and operational efficiency.

Key Features:

• 360° Panoramic View: Captures comprehensive coverage for maximum surveillance.
• High-Resolution Sensor: Equipped with a 12MP fisheye lens for sharp and detailed imaging.
• Built-In IR Illumination: Ensures visibility up to 15 meters even in complete darkness.
• Advanced Analytics: Features deep learning processing for intelligent object detection and classification.
• Forensic WDR: Provides up to 120 dB for excellent detail in high-contrast lighting conditions.
• Lightfinder Technology: Offers vibrant, full-color video in near darkness.
• Durable Design: IP66 and IK10 rated for protection against harsh environments.

Technical Specifications:

• Image Sensor: 1/2.3” progressive scan RGB CMOS
• Resolution: 2992×2992 (overview mode), other customizable options
• Lens: 1.2 mm fixed focal length, 182° horizontal/vertical field of view
• Minimum Illumination: 0.19 lux (color), 0.04 lux (B/W), 0 lux with IR
• Compression: H.264, H.265, Motion JPEG with Zipstream technology
• Built-in Analytics: AXIS Object Analytics and AXIS Scene Metadata
• Network: PoE, IPv4/IPv6 support, HTTPS, and other advanced protocols
• Operating Conditions: -40 °C to 50 °C (-40 °F to 122 °F)
• Weight: 860 g (1.9 lb)
• Power: Power over Ethernet (PoE) IEEE 802.3af/802.3at
