Call for Price
Situational awareness camera with built-in PTZ, 3x 5MP sensors for situational awareness, Total overview, zoomed-in details, Covers indoor areas up to 400 m2 (4300 ft2), 10x optical zoom with HDTV 1080p, Z-Wave™ for smart home devices
Description

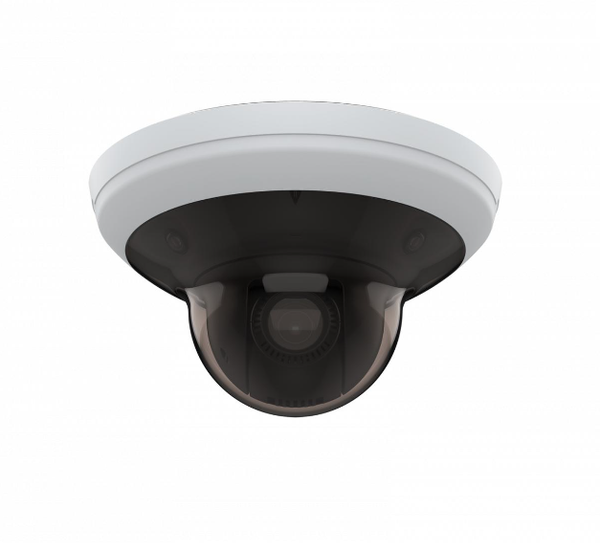

AXIS M5000-G PTZ Camera (02188-004)
The AXIS M5000-G provides comprehensive monitoring capabilities for indoor spaces spanning up to 400 m2 (4300 ft2). Equipped with three 5 MP sensors and a PTZ camera boasting 10x optical zoom and HDTV 1080p resolution, this system enables users to obtain broad panoramic views as well as detailed close-ups. Additionally, the AXIS M5000-G supports wireless I/O connectivity with Z-Wave Plus devices, allowing the camera to interact with a maximum of six devices within a configured system.
Quick Specs:
- 3x 5 MP sensors for situational awareness
- Total overview, zoomed-in details
- Covers indoor areas up to 400m2
- Z-Wave for smart home devices
| Feature | AXIS M5000 | AXIS M5000-G | AXIS M5074 | AXIS M5075 | AXIS M5075-G |
|---|---|---|---|---|---|
| Max video resolution | 1920×1080 | 1920×1080 | 1280×720 | 1920×1080 | 1920×1080 |
| Horizontal field of view | 61.8-6.7 | 61.8-6.7 | 71-14 | 71-14 | 71-14 |
| Alarm inputs/outputs | – | – | – | – | – |
| Local storage (memory card slot) | ✔ | ✔ | ✔ | ✔ | ✔ |
| Wide dynamic range | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR |
| Zipstream | ✔ | ✔ | ✔ | ✔ | ✔ |
| Optical zoom | 10 | 10 | 5 | 5 | 5 |
| Digital zoom | 12 | 12 | 12 | 12 | 12 |
| Built-in microphone | – | – | ✔ | – | 1 |
| Audio detection | ✔ | ✔ | ✔ | ✔ | ✔ |
| Vandal rating | – | – | – | – | – |
Please see the related tabs for the 02188-004 datasheet and compatible accessories.
Properties
| Properties | AXIS M5000-G PTZ Camera |
| Description | The AXIS M5000-G PTZ Camera offers comprehensive indoor surveillance (up to 400 m2) with three 5 MP sensors and 10x optical zoom. Switch effortlessly between panoramic and detailed views. It supports HDTV 1080p and integrates with Z-Wave for smart home connectivity, managing up to six devices. This all-in-one solution combines the functionality of four cameras in a single unit for efficient security and smart home applications. |
| Product Family | AXIS M5000-G PTZ Camera |
| Product Type | Camera |
Specifications
| Specifications | AXIS M5000-G PTZ Camera |
| Camera | |
| Image sensor | PTZ camera: |
| 1/2.8” progressive scan RGB CMOS | |
| Overview cameras: | |
| 1/2.8” progressive scan RGB CMOS | |
| Lens | PTZ camera: |
| Varifocal, 4.7–47 mm, F1.6–3.0 | |
| Horizontal field of view: 61.8°–6.7° | |
| Vertical field of view: 36.3°–3.8° | |
| Autofocus, auto-iris, P-Iris control | |
| Overview cameras: | |
| Focal length 2.39 mm, F2.0 | |
| Horizontal field of view: 360° | |
| Vertical field of view: 93° | |
| Day and night | PTZ camera: |
| Automatically removable infrared-cut filter | |
| Minimum illumination | PTZ camera: |
| Color: 0.09 lux at 30 IRE F1.6 | |
| B/W: 0.01 lux at 30 IRE F1.6 | |
| Color: 0.1 lux at 50 IRE F1.6 | |
| B/W: 0.01 lux at 50 IRE F1.6 | |
| Overview cameras: | |
| Color: 0.08 lux at 30 IRE F2.0 | |
| B/W: 0.03 lux at 30 IRE F2.0 | |
| Color: 0.4 lux at 50 IRE F2.0 | |
| B/W: 0.03 lux at 50 IRE F2.0 | |
| Shutter speed | PTZ camera: |
| 1/66500 s to 2 s | |
| Overview cameras: | |
| 1/50000 s to 2 s | |
| Pan/Tilt/Zoom | PTZ camera: |
| Pan: 360° with autoflip, 1.8°–150°/s | |
| Tilt: 180°,1.8°–150°/s | |
| 10x optical zoom, 12x digital zoom, total 120x zoom | |
| 100 preset positions, limited guard tour, control queue, on-screen | |
| directional indicator, E-flip, click-in-image | |
| System on chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 2048 MB RAM, 512 MB Flash |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | PTZ camera: |
| 1920×1080 to 320×180 | |
| Overview cameras: | |
| 2592×1944 to 320×180 | |
| Frame rate | PTZ camera: |
| Up to 25/30 fps with power line frequency 50/60 Hz | |
| Overview cameras: | |
| Up to 12 fps with power line frequency 50/60 Hz | |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG | |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| Low latency mode | |
| Video streaming indicator | |
| Image settings | Saturation, contrast, brightness, sharpness, WDR – forensic |
| capture, white balance, day/night threshold, tone mapping, | |
| exposure mode, exposure zones, compression, Z-Wave overlay, | |
| text and image overlay, polygon privacy masks, image freeze on | |
| PTZ, local contrast, max shutter, max gain, noise/motion priority, | |
| aperture lock, exposure level | |
| Scene profiles: indoor, forensic | |
| Audio | |
| Audio streaming | Two-way, full duplex |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/44.1 kHz, G.711 PCM 8 kHz, G.726 |
| ADPCM 8 kHz, Opus 8/16/48 kHz | |
| Configurable bit rate | |
| Audio input/output | External microphone input or line input, line output, automatic |
| gain control | |
| Network | |
| Security | IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, user access log, centralized certificate management |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), Z-Wave PlusTM v2 |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-click cloud connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and | |
| ONVIF® Profile T, specification at onvif.org | |
| Onscreen controls | Focus recall area |
| Video streaming indicator | |
| Privacy masks | |
| Day/night shift | |
| Event conditions | Audio: audio clip playing |
| Device status: above operating temperature, above or below | |
| operating temperature, below operating temperature, IP address | |
| removed, network lost, new IP address, storage failure, system | |
| ready, within operating temperature | |
| Edge storage: recording ongoing, storage disruption, storage | |
| health issues detected | |
| I/O: manual trigger, virtual input | |
| MQTT subscribe | |
| PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position | |
| reached, PTZ ready | |
| Scheduled and recurring: scheduled event | |
| Video: average bitrate degradation, day-night mode, live stream | |
| open | |
| Event actions | Audio clips: play, play while the rule is active, stop playing |
| Guard tours: Run while the rule is active, start | |
| MQTT publish | |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap | |
| Record video: SD card and network share | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share and email | |
| Day-night mode, overlay text, preset positions, WDR mode | |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter |
| Analytics | |
| Applications | Included |
| AXIS Loitering Guard, AXIS Video Motion Detection, audio | |
| detection, shock detection, advanced gatekeeper | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| Cybersecurity | |
| Edge security | Software: Signed firmware, brute force delay protection, digest |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization | |
| Code Flow for centralized ADFS account management, password | |
| protection, AES-XTS-Plain64 256bit SD card encryption | |
| Hardware: Axis Edge Vault cybersecurity platform | |
| Secure element (CC EAL 6+), Axis device ID, secure keystore, | |
| signed video, secure boot | |
| Network security | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)* , IEEE 802.1AR, HTTPS/HSTS* , TLS v1.2/v1.3* , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| General | |
| Casing | IP51-rated |
| Repaintable plastic casing, polycarbonate (PC) dome | |
| Sustainability | PVC free, BFR/CFR free |
| Power | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 |
| Typical 7.6 W, max 13.4 W | |
| 20–28 V DC, typical 6.6 W, max 12.1 W | |
| (PoE midspan and power supply not included) | |
| Connectors | RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| DC input terminal block | |
| Audio: mic/line in, line out terminal block | |
| Storage | Support for SD/SDHC/SDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Support for recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity 10–85% RH (non-condensing) | |
| Storage conditions | (-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) | |
| Approvals | EMC |
| EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, | |
Accessories
| Optional accessories | • AXIS TM5601 Conduit Back Box • AXIS TM5801 Black Dome |
