Call for Price
Fully featured, all-around 4K surveillance, Lightfinder 2.0, Forensic WDR, OptimizedIR, Analytics with deep learning, Audio and I/O connectivity, Built-in cybersecurity features, Impact and weather resistant
Description

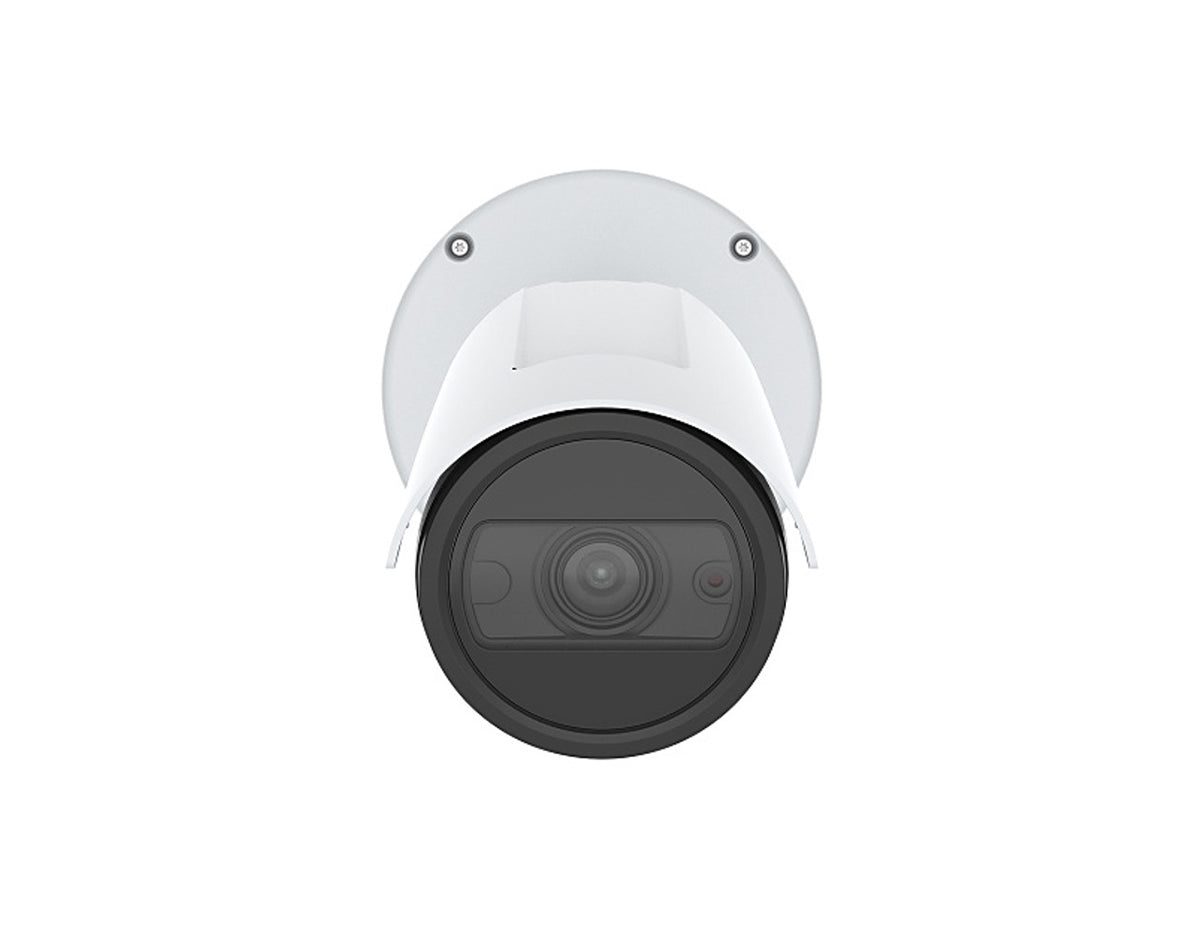

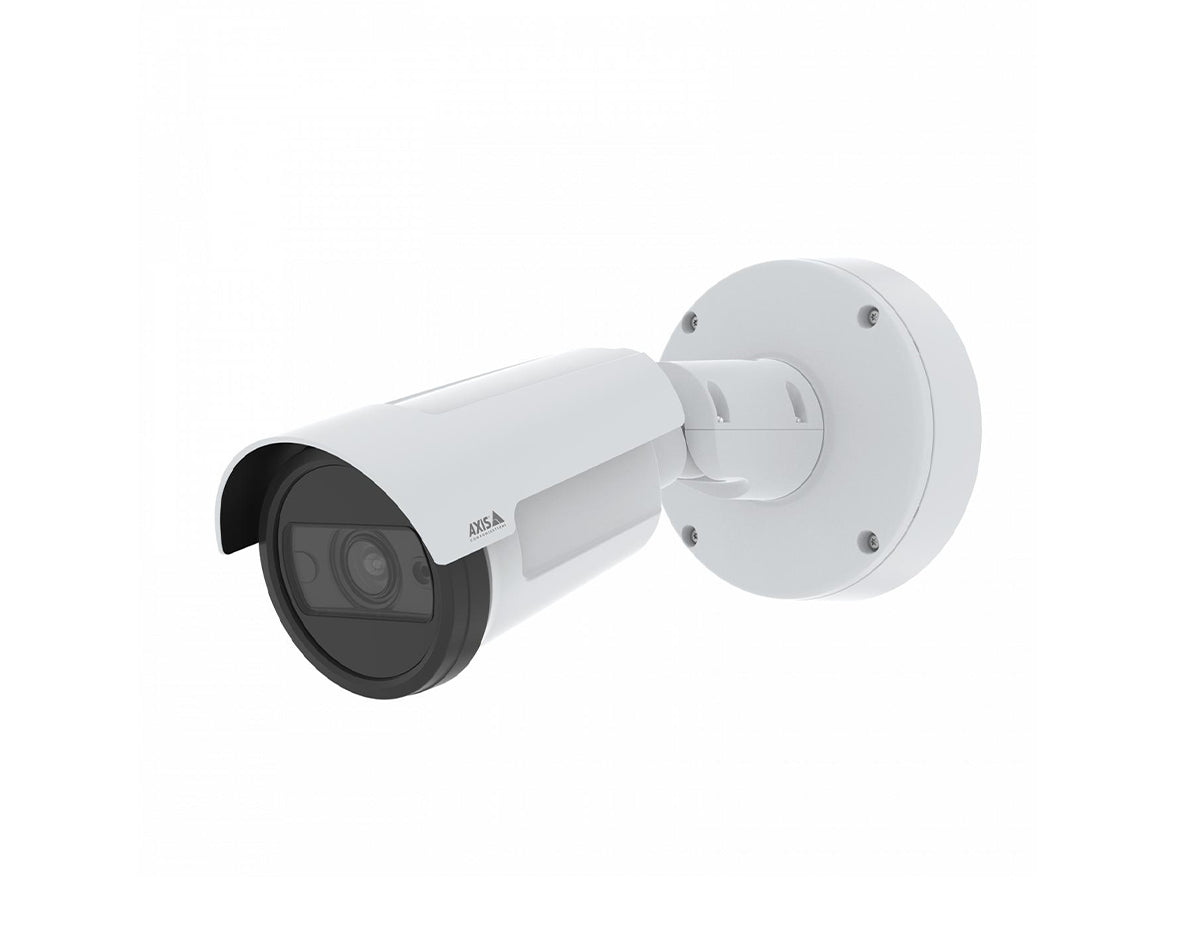

AXIS P1468-LE Bullet Camera (02342-001)
The AXIS P1468-LE presents high-quality imaging and sophisticated analytics utilizing deep learning at the edge. Equipped with integrated cybersecurity measures, this durable outdoor camera is well-suited for diverse surveillance applications. It uses a 1/1.2″ progressive scan RGB CMOS sensor to record video at a resolution of 3840 x 2160 and a frame rate of 60 fps. Additionally, it features IR LEDs that offer night vision capabilities up to 131 feet.
Quick Specs:
- Lightfinder 2.0, Forensic WDR, OptimizedIR
- Built-in cybersecurity features
- Audio and I/O connectivity
- Impact and weather resistant
Please see the related tabs for the 02342-001 datasheet and compatible accessories.
| Feature | AXIS P1455-LE | AXIS P1465-LE | AXIS P1465-LE-3 | AXIS P1467-LE | AXIS P1468-LE |
|---|---|---|---|---|---|
| Max video resolution | 1920×1080 | 1920×1080 | 1920×1080 | 2592×1944 | 3840×2160 |
| Horizontal field of view | 29-11 / 114-37 | 29 – 11 / 117 – 37 | 29 – 11 | 106 – 38 | 108 – 49 |
| OptimizedIR | ✔ | ✔ | ✔ | ✔ | ✔ |
| Alarm inputs/outputs | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 |
| Lightfinder | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR | Forensic WDR |
| Zipstream | ✔ | ✔ | ✔ | ✔ | ✔ |
| Remote focus | ✔ | ✔ | ✔ | ✔ | ✔ |
| Remote zoom | ✔ | ✔ | ✔ | ✔ | ✔ |
| Analytics compute capability | MLPU | DLPU | DLPU | DLPU | DLPU |
| Axis Edge Vault | ✔ | ✔ | ✔ | ✔ | ✔ |
| Edge to edge | Network speakers | Network speakers | Network speakers, Radar pairing | Network speakers | Network speakers |
Properties
| Properties | AXIS P1468-LE |
| Description | AXIS P1468-LE Bullet Camera is fully featured, all-around 4K surveillance. It offers analytics with deep learning and built-in cybersecurity features. Ideal for a variety of surveillance scenarios. |
| Product Family | Axis Cameras |
| Product Type | Bullet Camera |
| Image sensor | 1/1.2″ progressive scan RGB CMOS |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR |
| PoE Class | IEEE 802.3af/802.3at Type 1 Class 3 |
| Wireless | – |
| Connectors | Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T |
| 3.5 mm mic/line in | |
| Terminal block for 1 supervised alarm input and 1 output (12 V | |
| DC output, max. load 25 mA) | |
| DC input | |
| Signed firmware | Yes |
| Secure boot | Yes |
| Remote focus | Yes |
| Remote zoom | Yes |
| Built-in IR | Yes |
| Local storage (memory card slot) | Yes |
| Outdoor Ready | Yes |
| Vandal rating | IK10 |
| IP rating | IP66,IP67 |
| Designed for repaint | Yes |
| Power (max) | 13.0 W |
| Power (average) | 7.6 W |
| DC input voltage | 10-28 V |
| Dimensions | Ø132 x 280 mm (Ø5.2 x 11.0 in) |
| Weight | With weather shield: 1.2 kg (2.65 lb) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Event actions | Day-night mode, overlay text, WDR mode |
| Audio clips: play, stop | |
| I/O: toggle I/O once, toggle I/O while the rule is active | |
| Illumination: use lights, use lights while the rule is active | |
| MQTT: publish | |
| Notification: HTTP, HTTPS, TCP and email | |
| Record video: SD card and network share | |
| SNMP traps: send, send while the rule is active | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email | |
| Applications | AXIS Object Analytics, AXIS Video Motion Detection, active tampering, shock detection, audio detection, orientation aid |
| Supported | AXIS Perimeter Defender, AXIS Digital Autotracking |
| Support for AXIS Camera Application Platform enabling installation of third-party applications | |
| Cybersecurity | Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Axis Edge Vault cybersecurity platform | |
| Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) | |
| Network security: IEEE 802.1X (EAP-TLS)b, IEEE 802.1AR, HTTPS/HSTSb, TLS v1.2/v1.3b, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering | |
| IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)b, IEEE 802.1AR, HTTPS/HSTSb , TLS v1.2/v1.3b , Network Time Security (NTS), X.509 | |
| Certificate PKI, IP address filtering |
Specifications
| Specifications | AXIS P1468-LE |
| System on chip (SoC) Model | ARTPEC-8 |
| Memory | 2 GB RAM, 8 GB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Min illumination/ light sensitivity (Color) | 0.07 lux |
| Min illumination/ light sensitivity (B/W) | 0 lux |
| Max video resolution | 3840×2160 |
| Max frames per second | 50/60 |
| Electronic image stabilization | – |
| Multi-view streaming | Up to 8 individually cropped out view areas |
| Pan/Tilt/Zoom | Digital PTZ, digital zoom, Optical zoom 2.08, Guard tour (max 100), control queue, fixed orientation aid |
| Focal length | 6.2 – 12.9 mm |
| Horizontal field of view | 108-49 ° |
| Vertical field of view | 58 – 27 ° |
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| Motion JPEG | Yes |
| Audio streaming | Audio in, simplex, two-way audio via edge-to-edge technology |
| Audio input/output | External microphone input or line input, digital audio input, ring power, network speaker pairing |
| Sustainability | BFR/CFR free, PVC free |
Accessories
| Included accessories | |
| AXIS T94F01S | Mount Bracket |
| AXIS TP1803-E Front Window Kit | Front window spare part in polycarbonate |
| AXIS TQ3901 | Gasket M20 Cable |
| AXIS P14 | Weathershield Kit A |
| AXIS Connector A 4-pin 2.5 Straight, 10 pcs | |
| Optional accessories | |
| AXIS T8129 | PoE Extender |
| AXIS T8129-E | Outdoor PoE Extender |
| AXIS Long Range PoE Extender Kit | Robust solution for covering long distances |
| AXIS Surveillance Card 1 TB/ 512 GB/ 256 GB/128 GB/ 64 GB | High endurance microSDXC™ cards |
| AXIS T98A17-VE | Media Converter Cabinet A |
| AXIS T98A17-VE | Robust surveillance cabinet |
| AXIS T8351 Mk II Microphone 3.5 mm | High-performance, low noise analog microphone for superior audio |
| AXIS T8353A Microphone 3.5 mm | For professional audio surveillance |
| AXIS T8355 Digital Microphone 3.5 mm | Digital microphone with lossless interface for superior audio |
| AXIS TU1001-V Microphone | A robust microphone for indoor usage |
| AXIS TU1001-VE | A robust microphone for outdoor usage |
| AXIS T91B47 | Pole Mount |
| AXIS T94F01M J-Box/Gang Box Plate | For versatile mounting |
| AXIS T94F01P Conduit Back Box | For ½″ conduits and M20 pipes |
| AXIS T94P01B | Corner Bracket |
| AXIS T94V01C | Dual Camera Mount |
| AXIS TP1601 | Adapter Plate accessory |
| AXIS TP3603 | Conduit Back Box |
| AXIS TQ1602-E | Conduit Back Box |
| AXIS T8120 | Midspan 15 W 1-port |
| AXIS T8061 Ethernet Surge Protector | Protects outdoor devices from power surges |
| AXIS TU8001 Ethernet Surge Protector | For use indoors or in an enclosure |
| AXIS T8604 | Media Converter Ethernet to fiber 12 V DC |
| AXIS T8606 | Media Converter Switch 24 V DC |
| AXIS T8640 PoE+ over Coax Adapter Kit | Cost-efficient migration to network video for smaller installations |
| AXIS T8645 PoE+ Over Coax Compact Kit | Compact, cost-efficient single-channel migration to IP |
| AXIS T8007 PS24 | Versatile 24 V DC power supply |
