Call for Price
6 MP corner camera with no blind spots, Full coverage and no blind spots, 6 MP with stereographic lens, Built-in microphone and AXIS Audio Analytics, Vandal-resistant (IK10) and IP66-rated dust protection, Built-in cybersecurity with Axis edge vault
Description

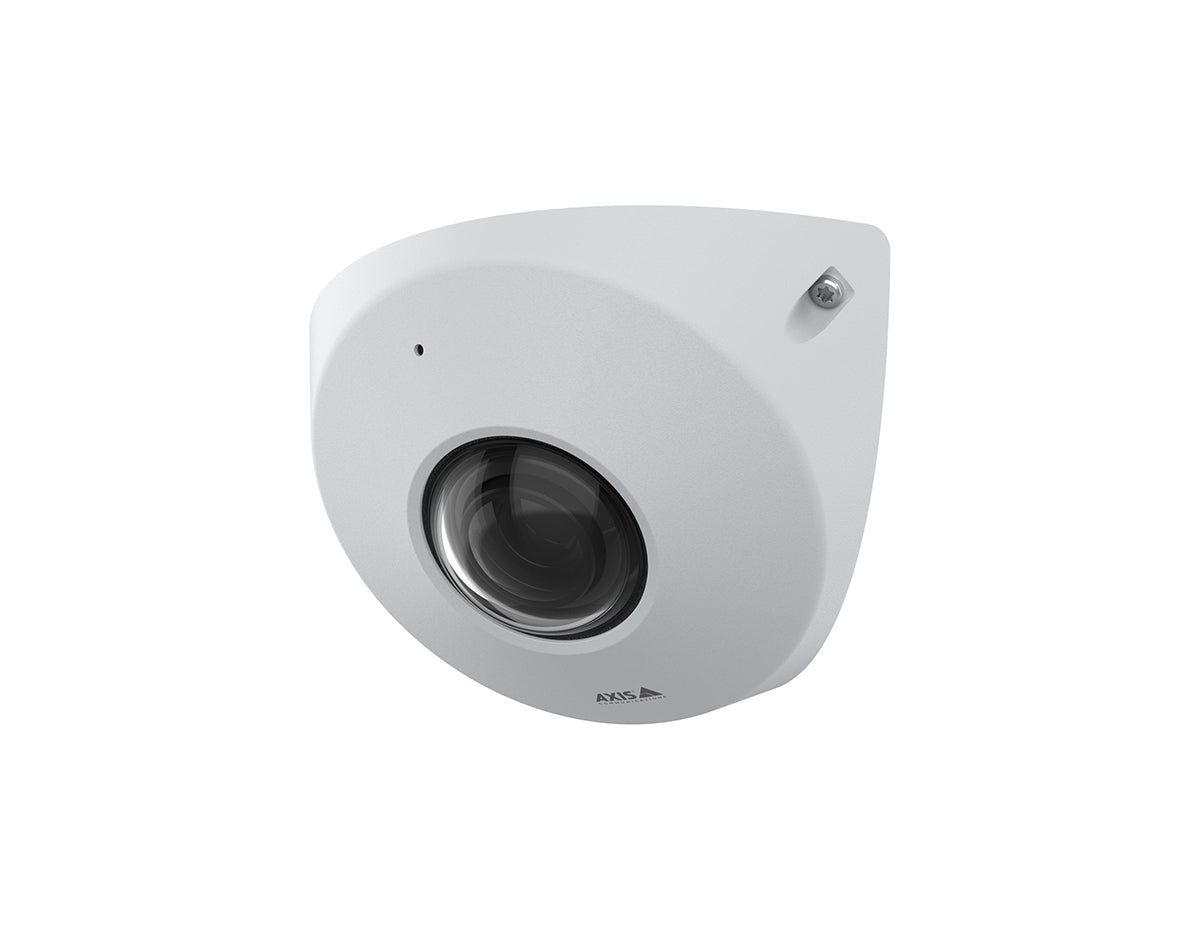

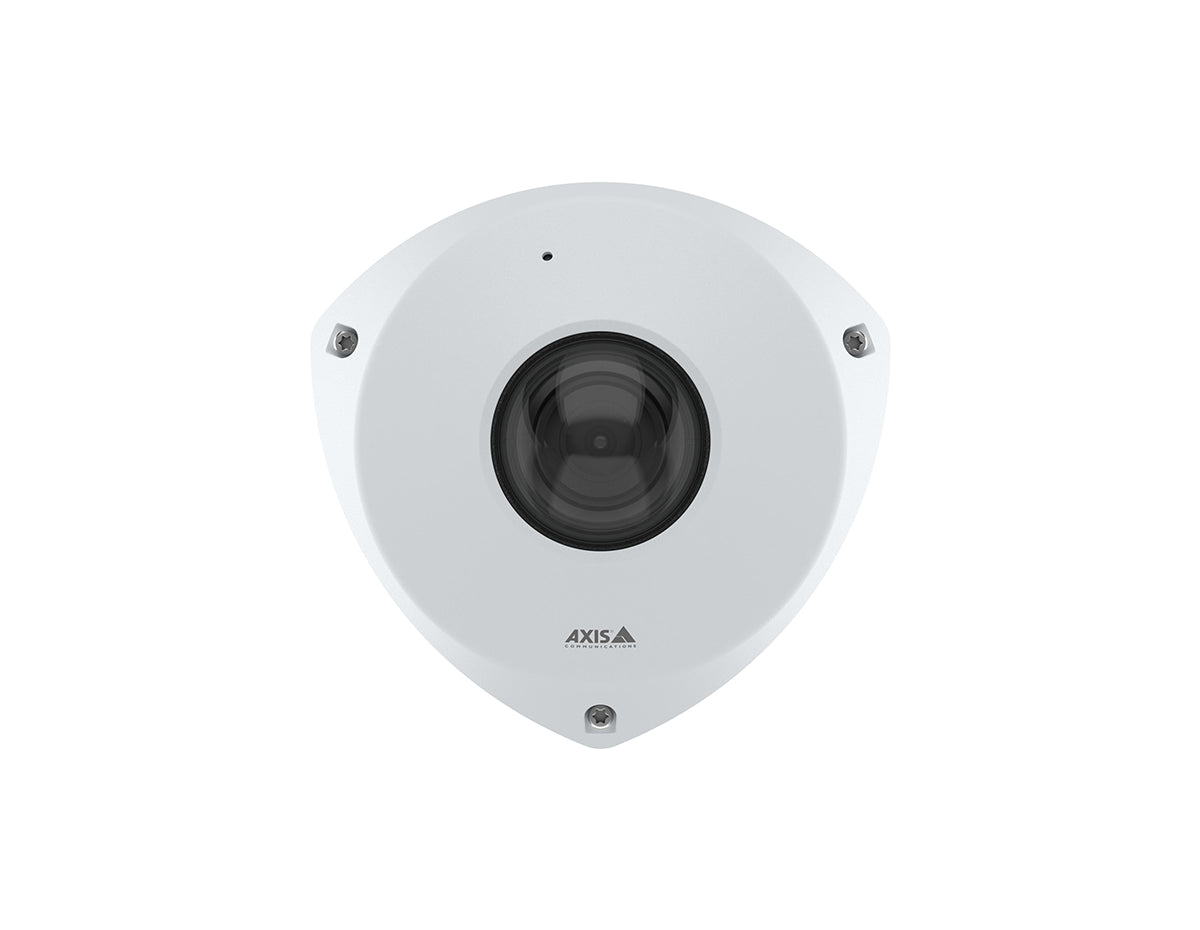

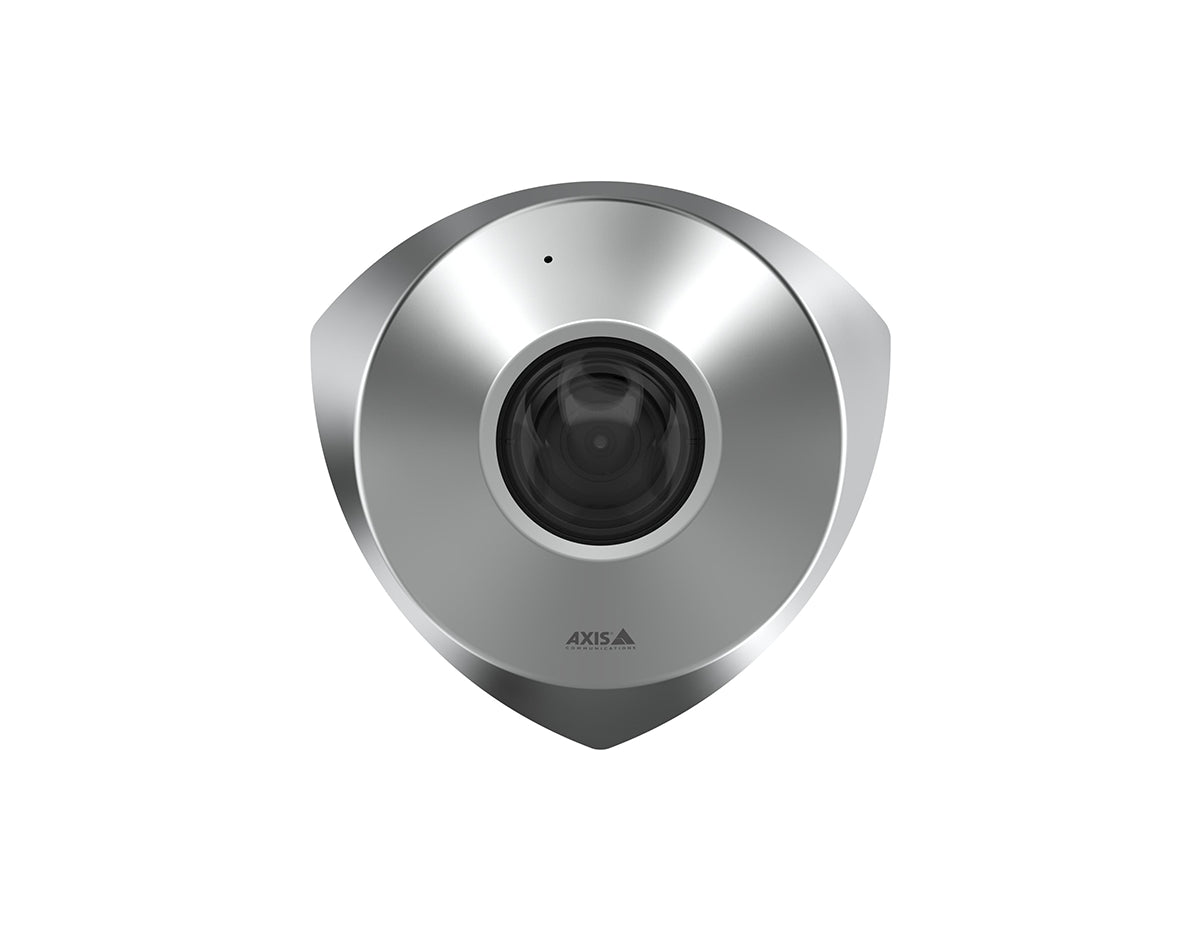

AXIS P9117-PV indoor corner mounted camera with 6 MP sensor and stereographic lens, that can deliver multiple 360° or 180° panoramic views at up to 30 fps with no blind spots. Built on ARTPEC-8, it offers powerful artificial intelligence and deep learning analytics on the edge. including AXIS Object Analytics, it can accurately detect and classify moving objects for more effective monitoring. The camera can stream multiple, individually configurable H.264, H.265 and Motion JPEG streams, with support for digital PTZ. The product as well has a in built mic supporting audio analytics out of the box. Has an elevator door state detector ACAP pre-installed. Vandal-resistant (IK10) and IP66-rated dust protection. Product comes in white while steel variant cover purchased in a 4 pack separately.
Properties
| Product Name | AXIS P9117-PV Corner Camera |
| Product Description | 6 MP indoor corner-mounted camera with stereographic lens for full 360° panoramic coverage |
| Image Sensor | 6 MP (3072×2048) 1/1.8” progressive scan RGB CMOS |
| Lens | Stereographic lens with 1.1 mm focal length, F2.2 aperture |
| Field of View | Horizontal: 176°; Vertical: 176° |
| Frame Rate | Up to 30 fps at 6 MP resolution |
| Day/Night Functionality | Automatic IR-cut filter for day and night modes |
| Wide Dynamic Range | Forensic WDR for clarity in varying light conditions |
| Low-Light Performance | Lightfinder 2.0 technology ensures true colors in low-light environments |
| Audio Support | Built-in microphone with support for AXIS Audio Analytics |
| Video Compression | Supports H.264, H.265 with Zipstream, and Motion JPEG formats |
| Analytics | AXIS Object Analytics, video motion detection, active tampering alarm, and elevator door state detector |
| Cybersecurity | AXIS Edge Vault with FIPS-certified TPM for enhanced security |
| Local Storage | microSD/SDHC/SDXC card slot for edge storage |
| Operating Conditions | Designed for temperatures ranging from -15°C to +50°C (5°F to 122°F) |
| Power Supply | Powered by PoE Class 3 (IEEE 802.3af) |
| Mounting | Corner-mounted design for easy installation |
| Environmental Ratings | IK10-rated for vandal resistance and IP66-rated for dust protection |
| Additional Features | Supports digital PTZ, corridor format, and scene profiles |
Specifications
| Image Sensor | 1/1.8” progressive scan RGB CMOS |
| Lens | 1.1 mm focal length, F2.2 aperture; fixed focus |
| Horizontal Field of View | 176° |
| Vertical Field of View | 176° |
| Minimum Illumination | Color: 0.17 lux at 50 IRE, F2.2; B/W: 0.04 lux at 50 IRE, F2.2 |
| Shutter Speed | 1/33500 s to 1/5 s |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG |
| Noise Reduction | Spatial (2D) and temporal (3D) noise reduction |
| Audio Input | Built-in microphone |
| Local Storage | microSD/SDHC/SDXC card slot |
| Operating Temperature | -15°C to +50°C (5°F to 122°F) |
| Power Consumption | Max 12.95 W |
| Dimensions | Height: 139 mm (5.5 in); Width: 139 mm (5.5 in); Depth: 50 mm (2.0 in) |
| Weight | 0.6 kg (1.3 lb) |
| Compliance | Certifications: CE, FCC, IC, RCM, VCCI, KC, UL, CB, IEC/EN/UL 62368-1 |
