Call for Price
For analytics with deep learning, Powerful AI with deep learning, Granular object classification, Support for 3rd-party AI applications, Edge-based processing for scalability, Premium Axis Q-line camera features
Description

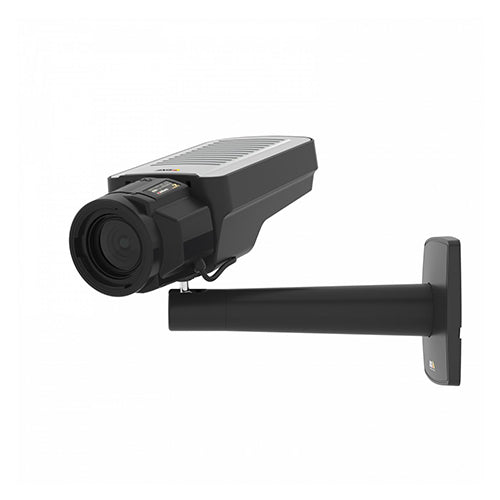

AXIS Q1615 MK III Barebone in single pack. No lens. No power supply.
This product has reached its end-of-life. The recommended replacement model is Q1715 (02220-001)
Properties
| Properties | AXIS Q1615 Mk III Barebone |
| Description | AXIS Q1615 Mk III Network Camera combines imaging and video performance with hardware and processing capabilities. Axis Object Analytics distinguishes between bikes, cars, buses, trucks, and so on with the contribution of the camera’s dual chipset. You can decide which vehicles you want to detect and trigger the alarms. Barebone version. |
| Product Family | Axis Cameras |
| Product Type | Network Camera |
| Image sensor | 1/2.8″ progressive scan RGB CMOS |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR |
| PoE Class | IEEE 802.3af/802.3at Type 1 Class 3 |
| Wireless | – |
| Connectors | Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T |
| 3.5 mm mic/line in | |
| Terminal block for 1 supervised alarm input and 1 output (12 V | |
| DC output, max. load 25 mA) | |
| DC input | |
| Signed firmware | Yes |
| Secure boot | Yes |
| Remote focus | Yes |
| Remote zoom | Yes |
| Built-in IR | – |
| Local storage (memory card slot) | Yes |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | – |
| Designed for repaint | – |
| Power (max) | 12.1 W |
| Power (average) | 8.3 W |
| DC input voltage | 10-28 V |
| Dimensions | 82 x 58 x 195 mm (3.2 x 2.3 x 7.7 in) |
| Weight | 1120 g (2.5 lb) |
| Operating Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Event actions | MQTT publish |
| Record video: SD card and network share | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email | |
| Pre- and post-alarm video or image buffering for recording or upload | |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap | |
| PTZ: PTZ preset, start/stop guard tour | |
| Overlay text, external output activation, play audio clip, zoom preset, defog mode, PTZ control | |
| Applications | AXIS Object Analytics, AXIS Video Motion Detection, active tampering, audio detection |
| Cybersecurity | Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Axis Edge Vault cybersecurity platform TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure keystore, secure boot | |
| Network security: IEEE 802.1X (EAP-TLS, PEAP MSCHAPv2), HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
Specifications
| Specifications | AXIS Q1615 Mk III Barebone |
| System on chip (SoC) Model | ARTPEC-7 |
| Memory | 2048 MB RAM, 1024 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Min illumination/ light sensitivity (Color) | 0.05 lux |
| Min illumination/ light sensitivity (B/W) | 0.01 lux |
| Max video resolution | 1920×1080 |
| Max frames per second | 100/120 |
| Electronic image stabilization | Yes |
| Pan/Tilt/Zoom | Digital PTZ, uploadable PTZ driver (Pelco D pre-installed) |
| Focal length | 2.8 – 8.5 mm |
| Horizontal field of view | 116 – 40 ° |
| Vertical field of view | 61 – 22 ° |
| Lens mount | CS |
| Replaceable lens | Yes |
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | Yes |
| Motion JPEG | Yes |
| Audio streaming | Two-way, full duplex |
| Audio input/output | External microphone input, line input, digital input with ring power, built-in microphone (can be disabled), balanced microphone, balanced input, automatic gain control, line output 24 bit AD/DA-conversion |
| Sustainability | BFR/CFR free, PVC free |
Accessories
| Included accessories | |
| AXIS Connector A 2-pin 2.5 Straight, 10 pcs | |
| AXIS Connector A 2-pin 3.81 Straight, 10 pcs | |
| AXIS Connector A 6-pin 2.5 Straight, 10 pcs | |
| AXIS T91B21 Stand Black | |
| Optional accessories | |
| AXIS T8129 | PoE Extender |
| AXIS Surveillance Card 1 TB/ 512 GB/ 256 GB/128 GB/ 64 GB | High endurance microSDXC™ cards |
| AXIS T8351 Mk II Microphone 3.5 mm | High-performance, low noise analog microphone for superior audio |
| AXIS T8353A Microphone 3.5 mm | For professional audio surveillance |
| AXIS T8355 Digital Microphone 3.5 mm | Digital microphone with lossless interface for superior audio |
| AXIS TU1001-V Microphone | A robust microphone for indoor usage |
| AXIS TU1001-VE | A robust microphone for outdoor usage |
| Lens CS 4-10 mm F0.9 P-Iris | Extreme light sensitivity with precise iris control |
| Lens i-CS 9-50 mm F1.5 8 MP | For versatile mounting |
| Lens CS 12-50 mm F1.4 P-Iris 8 MP | Telephoto lens for long reach |
| Ricom 2MP Lens DC-iris 8-26 mm F0.9 | Extremely light-sensitive |
| AXIS T8120 | Midspan 15 W 1-port |
| AXIS T8640 PoE+ over Coax Adapter Kit | Cost-efficient migration to network video for smaller installations |
| AXIS T8645 PoE+ Over Coax Compact Kit | Compact, cost-efficient single-channel migration to IP |
| AXIS T8415 | Wireless Installation Tool |
| AXIS T99A10 | Positioning Unit 24 V AC/DC |
|
AXIS T91A04 Camera Holder ¾” NPS |
For cameras with standard UNC thread |
|
AXIS T91A05 Camera Holder 1.5″ NPS |
For cameras with standard UNC thread |
|
AXIS T91B50 Telescopic Ceiling Mount |
Telescopic ceiling mount with swivel action |
|
AXIS T92E20 |
Outdoor Housing |
|
AXIS TQ1809-LE |
Housing T92G |
| AXIS T90D20 IR-LED | High-performance infrared LED illuminator with ease of installation |
| AXIS T90D20 PoE W-LED | High-performance infrared LED illuminator with ease of installation |
| AXIS T90D25 IR-LED | High-performance infrared LED illuminator with ease of installation |
| AXIS T90D25 PoE W-LED | High-performance infrared LED illuminator with ease of installation |
| AXIS T90D30 IR-LED | High-performance infrared LED illuminator with ease of installation |
| AXIS T90D30 PoE W-LED | High-performance infrared LED illuminator with ease of installation |
| AXIS T90D35 IR-LED | High-performance infrared LED illuminator with ease of installation |
| AXIS T90D35 PoE W-LED | High-performance infrared LED illuminator with ease of installation |
| AXIS T90D40 IR-LED | High-performance infrared LED illuminator with ease of installation |
| AXIS T90D40 PoE W-LED | High-performance infrared LED illuminator with ease of installation |
