4K UHD PTZ with quick-zoom and laser focus, 1/2″ sensor with 31x optical zoom, IR illumination, D/N functionality, Laser focus for precise focus, AXIS Object Analytics, Autotracking 2, TPM, FIPS 140-2 level 2 certified
Description

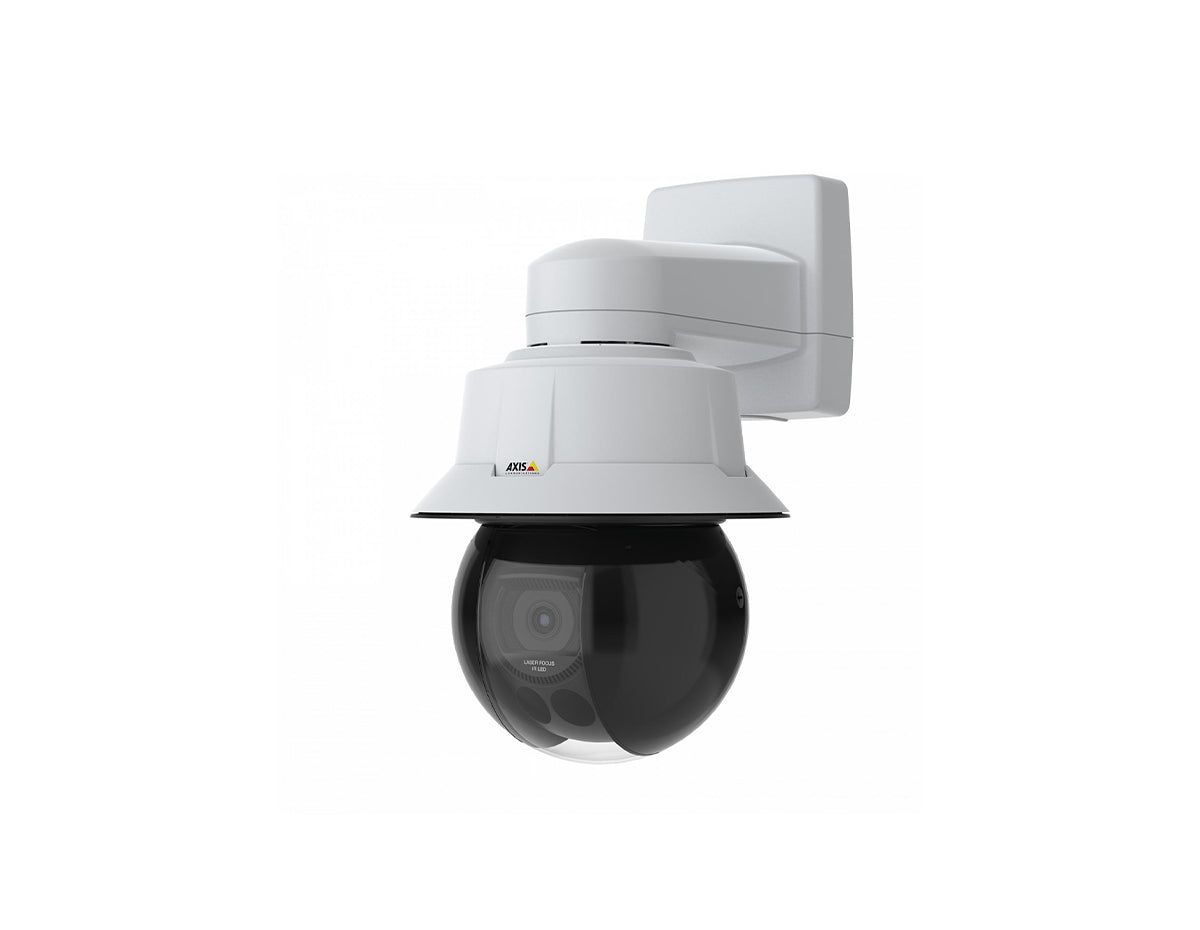

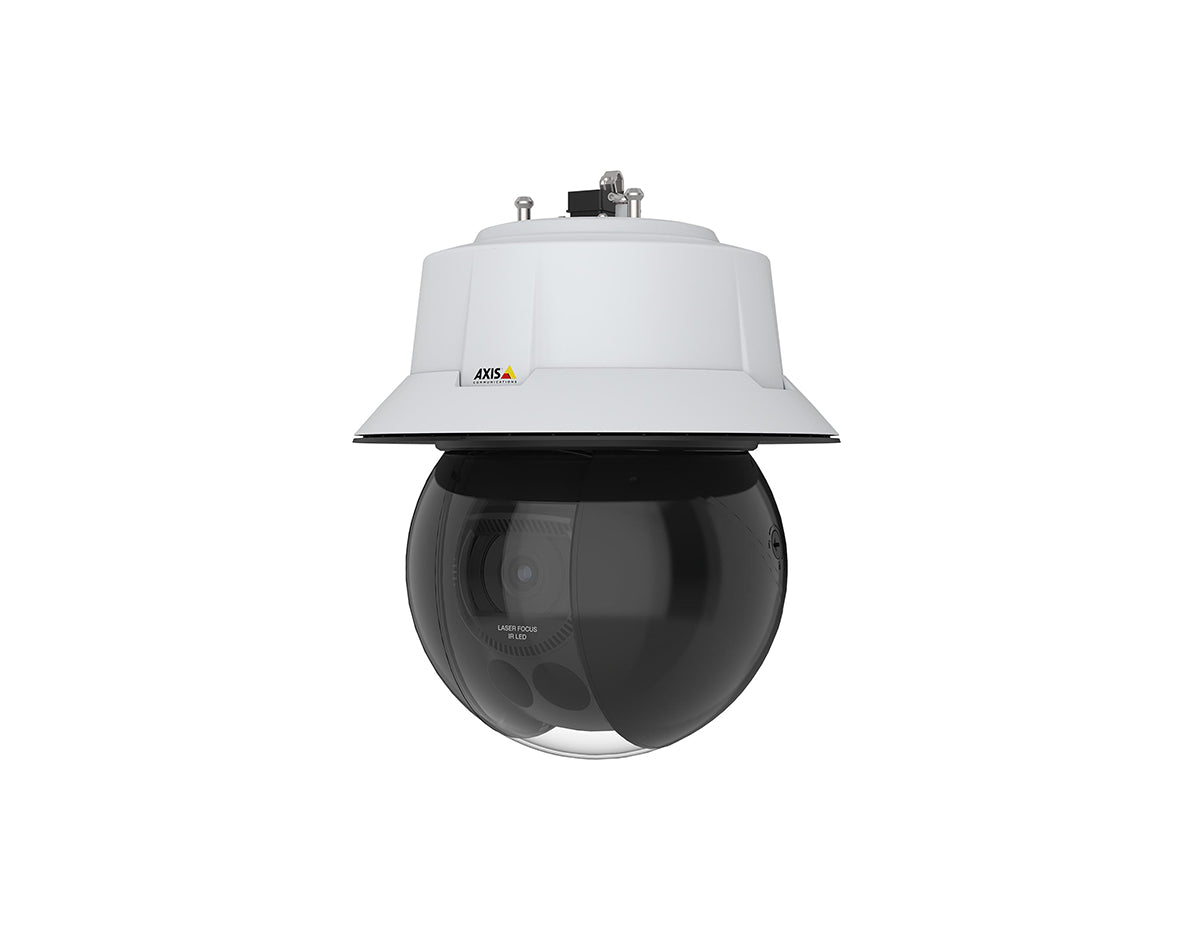

AXIS Q6318-LE 60 Hz PTZ Camera (02447-004)
The AXIS Q6318-LE provides high-quality 4K UHD resolution to capture intricate details. Equipped with a 1/2 sensor, it produces sharp and luminous images while effectively managing shadows in difficult lighting situations. This device boasts continuous panning, a tilt range of -90 to 20°, and a 31x optical zoom capability. Additionally, this camera holds an IP66 rating and is designed to withstand vandalism, ensuring protection against dust and high-pressure water jets from all angles.
Quick Specs:
- 1/2 sensor with 31x optical zoom
- IR illumination, D/N functionality
- Laser focus for precise focus
- AXIS Object Analytics
Please see the related tabs for the 02447-004 datasheet and compatible accessories.
| Feature | AXIS Q6315-LE | AXIS Q6318-LE |
|---|---|---|
| Max video resolution | 1920×1080 | 3840×2160 |
| Horizontal field of view | 60.6 – 2.0 | 58.5 – 2.3 |
| Alarm inputs/outputs | – | – |
| Lightfinder | Lightfinder 2.0 | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR | Forensic WDR |
| Zipstream | ✔ | ✔ |
| Electronic image stabilization | ✔ | ✔ |
| Optical zoom | 31 | 31 |
| Pan range | 360 endless | 360 endless |
| Tilt range | +20 to -90 | +20 to -90 |
| Autotracking version | Autotracking 2 | Autotracking 2 |
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | AXIS Q6318-LE 60 Hz PTZ Camera |
| Description | The AXIS Q6318-LE PTZ Camera offers superior 4K UHD resolution with a 31x optical zoom and quick-zoom laser focus for swift tracking. Equipped with IR illumination and day/night functionality, it ensures clear surveillance even in darkness. Features include auto tracking, AXIS Object Analytics, and FIPS 140-2 level 2 certified TPM for enhanced security. |
| Product Family | AXIS Q6318-LE PTZ Camera Series |
| Product Type | Camera |
Specifications
| Specifications | AXIS V5925 60 Hz PTZ Network Camera |
| Camera | |
| Image sensor | 1/2” progressive scan CMOS |
| Lens | Focal length: 6.91 – 214.64 mm, F1.36 – F4.6 |
| Horizontal field of view: 58.5°– 2.3° | |
| Vertical field of view: 34.9°– 1.4° | |
| Laser focus, autofocus, P-iris | |
| Zoom speed: <1 sec between any zoom value | |
| Day and night | Automatically removable infrared-cut filter |
| Minimum illumination | Color: 0.11 lux at 30 IRE, F1.36 |
| B/W: 0.001 lux at 30 IRE, F1.36, 0 lux with IR illumination on | |
| Color: 0.25 lux at 50 IRE, F1.36 | |
| B/W: 0.009 lux at 50 IRE, F1.36, 0 lux with IR illumination on | |
| Shutter speed | 1/8500 s to 1/5 s with 60 Hz |
| Pan/Tilt/Zoom | Pan: 360° endless, 0.05°– 550°/s |
| Tilt: +20 to -90°, 0.05°– 500°/s | |
| Zoom: 31x optical, 12x digital, Total 372x zoom | |
| Quick-zoom, nadir flip, 300 preset positions, tour recording | |
| (max 10, max duration 16 minutes each), guard tour (max 100), | |
| control queue, on-screen directional indicator, set new pan 0°, | |
| adjustable zoom speed, speed dry | |
| System on chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 2048 MB RAM, 512 MB Flash |
| Compute capabilities | Machine learning processing unit (MLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Resolution | 3840×2160 4K UHD |
| Frame rate | Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG | |
| Axis Zipstream technology in H.264 and H.265 | |
| Controllable frame rate and bandwidth | |
| VBR/ABR/MBR H.264/H.265 | |
| Low latency mode | |
| Video streaming indicator | |
| Image settings | Compression, color, brightness, sharpness, white balance, |
| exposure control, exposure zones, image freeze on PTZ, scene | |
| profiles, rotation, electronic image stabilization (EIS), defogging | |
| Contrast, local contrast, autofocus, Forensic WDR: Up to | |
| 120 dB depending on the scene, 32 individual polygon privacy masks | |
| including mosaic privacy mask | |
| Network | |
| Security | multi-level user, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)*, network access control, user access log, centralized certificate management |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, |
| TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS | |
| (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, | |
| NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, | |
| DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure | |
| syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address | |
| (ZeroConf)*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| One-Click Cloud Connection | |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and | |
| ONVIF® Profile T, specification at onvif.org | |
| Onscreen controls | IR illumination |
| Quick-zoom | |
| Enable/disable all privacy masks | |
| Speed dry | |
| Event conditions | Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, fan failure, | |
| IP address removed, network lost, new IP address, shock detected, | |
| storage failure, system ready, within operating temperature | |
| Edge storage: recording ongoing, storage disruption | |
| I/O: manual trigger, virtual input | |
| MQTT subscribe | |
| PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position | |
| reached, PTZ ready | |
| Scheduled and recurring: scheduled event | |
| Video: average bitrate degradation, day-night mode, live stream open | |
| Event actions | Record video: SD card and network share |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share and email | |
| Pre- and post-alarm video or image buffering for recording or | |
| upload | |
| Notification: email, HTTP, HTTPS, TCP and SNMP trap | |
| PTZ: PTZ preset, start/stop guard tour | |
| Overlay text, day/night mode | |
| WDR mode | |
| IR illumination | |
| MQTT publish | |
| Analytics | |
| AXIS Object Analytics | Object classes: humans, vehicles |
| Trigger conditions: line crossing, an object in the area, time in area BETA | |
| Up to 10 scenarios | |
| Metadata visualized with color-coded bounding boxes | |
| Polygon includes/exclude areas | |
| Perspective configuration | |
| ONVIF Motion Alarm event | |
| Metadata | Object data: Classes: humans, faces, vehicles, license plates |
| Confidence, position | |
| Event data: Producer reference, scenarios, trigger conditions | |
| Applications | Included |
| AXIS Object Analytics, AXIS Video Motion Detection, | |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, | |
| AXIS OSDI Zone, Orientation Aid PTZ, advanced gatekeeper, | |
| auto tracking 2 | |
| Support for AXIS Camera Application Platform enabling | |
| installation of third-party applications, see axis.com/acap | |
| Cybersecurity | |
| Edge security | Software: Signed firmware, brute force delay protection, digest authentication, password protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Secure boot, Axis Edge Vault with Axis device ID, signed video, secure keystore (CC EAL4+, FIPS 140-2 level 2 certified hardware protection of cryptographic operations and keys | |
| Network security | IEEE 802.1X (EAP-TLS)*, IEEE 802.1AR, HTTPS/HSTS*, TLS v1.2/v1.3*, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| (ZeroConf)*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Documentation | AXIS OS Hardening Guide |
| Axis Vulnerability Management Policy | |
| Axis Security Development Model | |
| AXIS OS Software Bill of Material (SBOM) To download documents, go to axis.com/support/cybersecurity/resources To read more about Axis cybersecurity support, go to axis.com/cybersecurity | |
| General | |
| Casing | IP66-, IP67, NEMA 4X- and IK10-rated |
| Color: white NCS S 1002-B | |
| Repaintable metal casing (aluminum), hard-coated Polycarbonate | |
| (PC) clear dome with Sharpdome technology | |
| Sustainability | PVC free |
| Power | Axis High PoE 60 W SFP midspan 1-port: |
| 100–240 V AC, max 1.5 A | |
| IEEE802.3bt Type 3 Class 6 | |
| Camera consumption: typical 17 W (no IR), max 51 W | |
| Connectors | RJ45 10BASE-T/100BASE-TX/1000BASE-T |
| RJ45 Push-pull Connector (IP66) | |
| IR illumination | OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reaching 200 m (656 ft) or more depending on the scene | |
| Storage | Support for SD/SDHC/SDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) | |
| Support for recording to network-attached storage (NAS) | |
| For SD card and NAS recommendations see axis.com | |
| Operating conditions | (-5 °C to 50 °C )(-23 °F to 122 °F): typical 15 W (no IR), max 30 W. |
| With IR: 44 W | |
| (-50 °C to 50 °C) (-58 °F to 122 °F): typical 15 W (no IR), max 51 W | |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) | |
| Arctic temperature control: start-up as low as -40 °C (-40 °F) | |
| Humidity: 10–100% RH (condensing) | |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5 – 95% RH (non-condensing) | |
| Approvals | EMC |
| EN 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, | |
| EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, | |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), | |
| VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, | |
| EN 50121-4, KS C 9832 Class A, KS C 9835 | |
| Safety | |
| IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, | |
| IEC/EN 62471 risk group 2, IEC 60825-1 Class 1, IS 13252 | |
| Environment | |
| IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, | |
| NEMA 250, Type 4X, NEMA TS 2 (2.2.7–2.2.9), IEC 60068-2-1, | |
| IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, | |
Accessories
| Optional accessories | • AXIS T91/T94 Mounting Accessories • AXIS T8415 Wireless Installation Tool • AXIS Surveillance Cards |
