Call for Price
Provides up to 60W of power ideal for demanding Axis network devices like PTZ cameras, Supports fiber installations through its SFP slot, Data Rate
Description

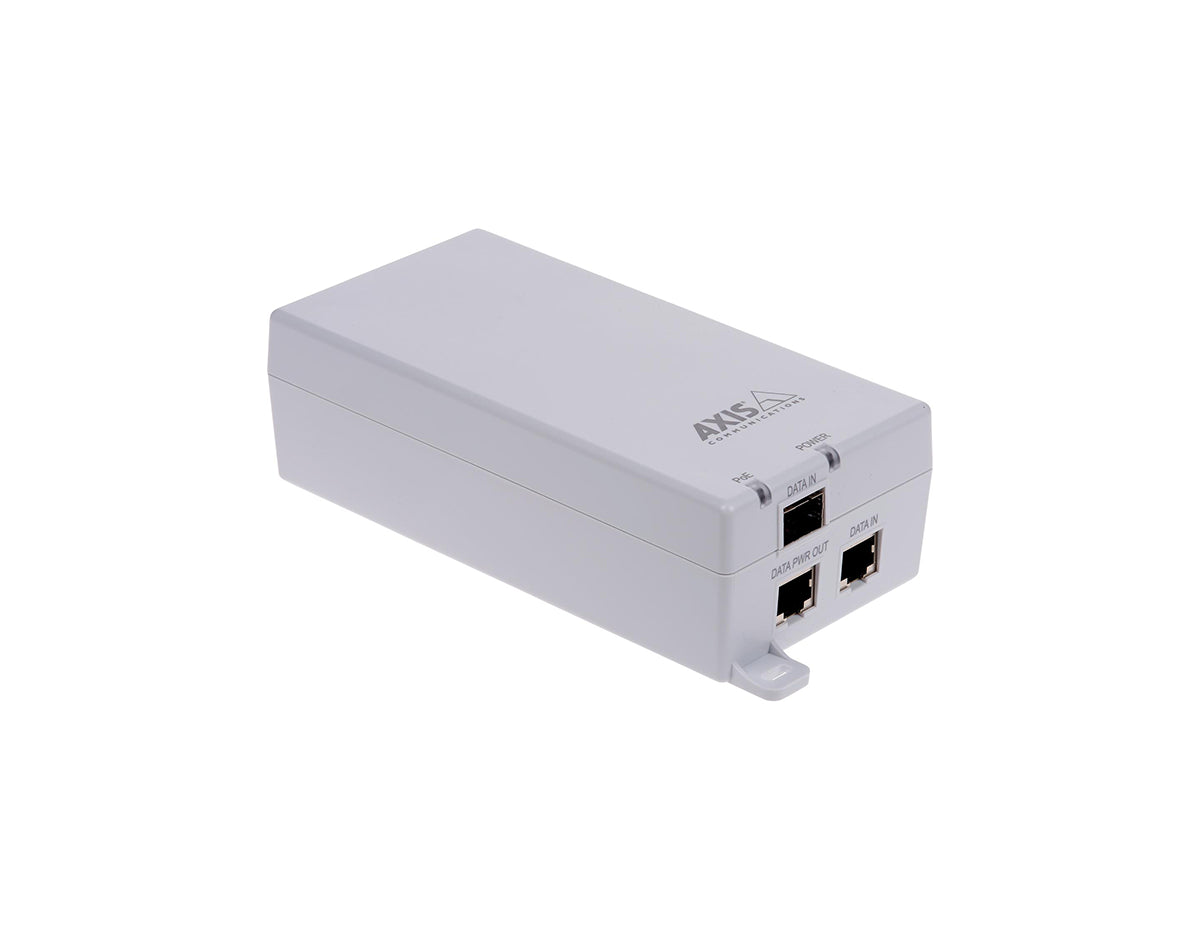

AXIS T8154 60W SFP Midspan
The AXIS T8154 60W SFP Midspan is a compact, plug-and-play solution designed for both network and fiber installations, providing Power over Ethernet (PoE) up to 60W. With an integrated power supply, it simplifies installations and minimizes the amount of required cabling. This midspan offers data input through either SFP or RJ45, making it compatible with all Axis network products that support PoE. The AXIS T8154 is ideal for scenarios requiring high power delivery, such as for powering PTZ cameras and other high-performance devices.
Key Features:
- High PoE 60W: Provides up to 60W of power, ideal for demanding Axis network devices like PTZ cameras.

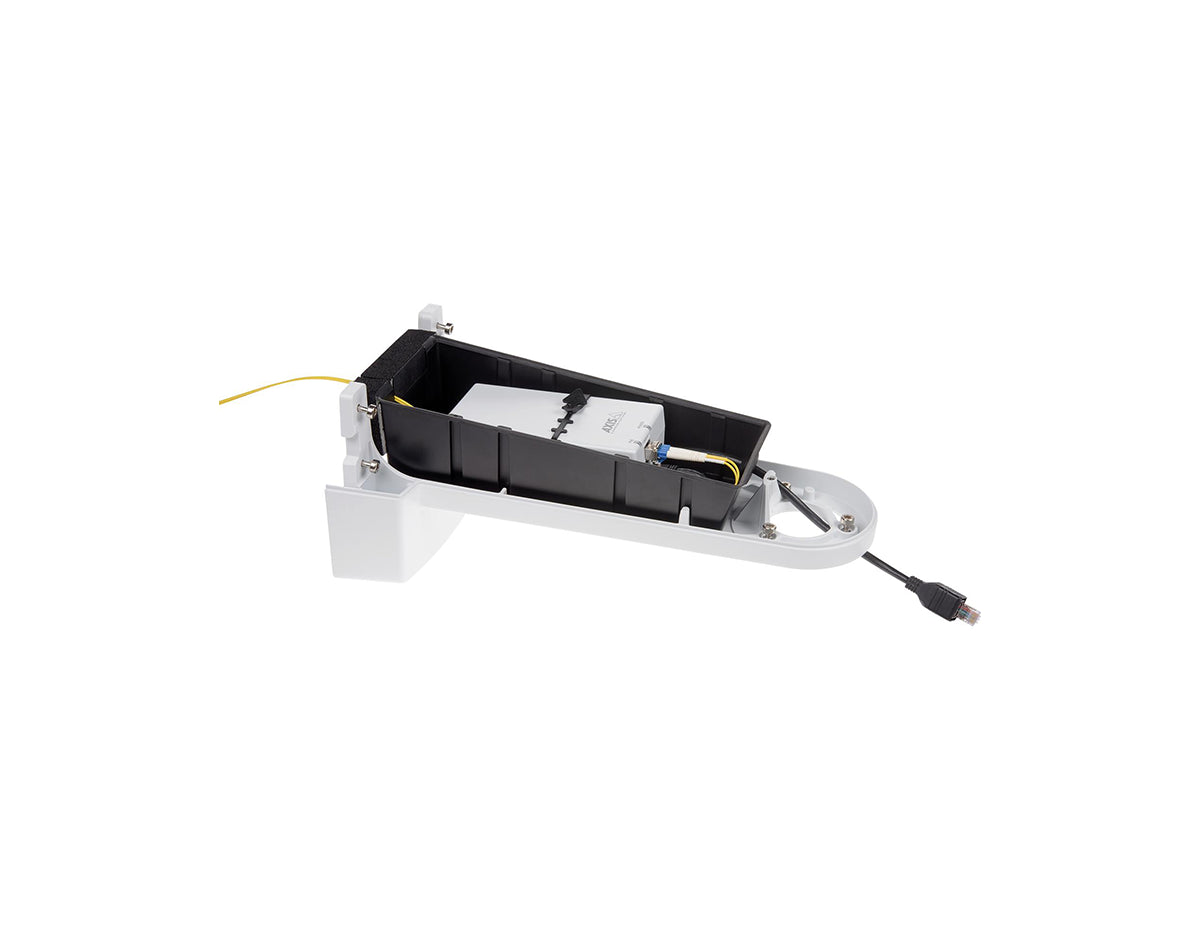

- SFP Slot for Fiber Installations: Supports fiber installations through its SFP slot, allowing for greater flexibility in network design.
- Integrated Midspan: Combines data and power transmission in one device, reducing the need for additional components.
- Plug-and-Play Installation: Automatically detects PoE-enabled devices and supplies inline power.
- Wide Compatibility: Works with all Axis network products that support PoE.
Technical Specifications:
- Power Output: 55 V DC, max 60W
- Data Rate: 10/100/1000 Mbps

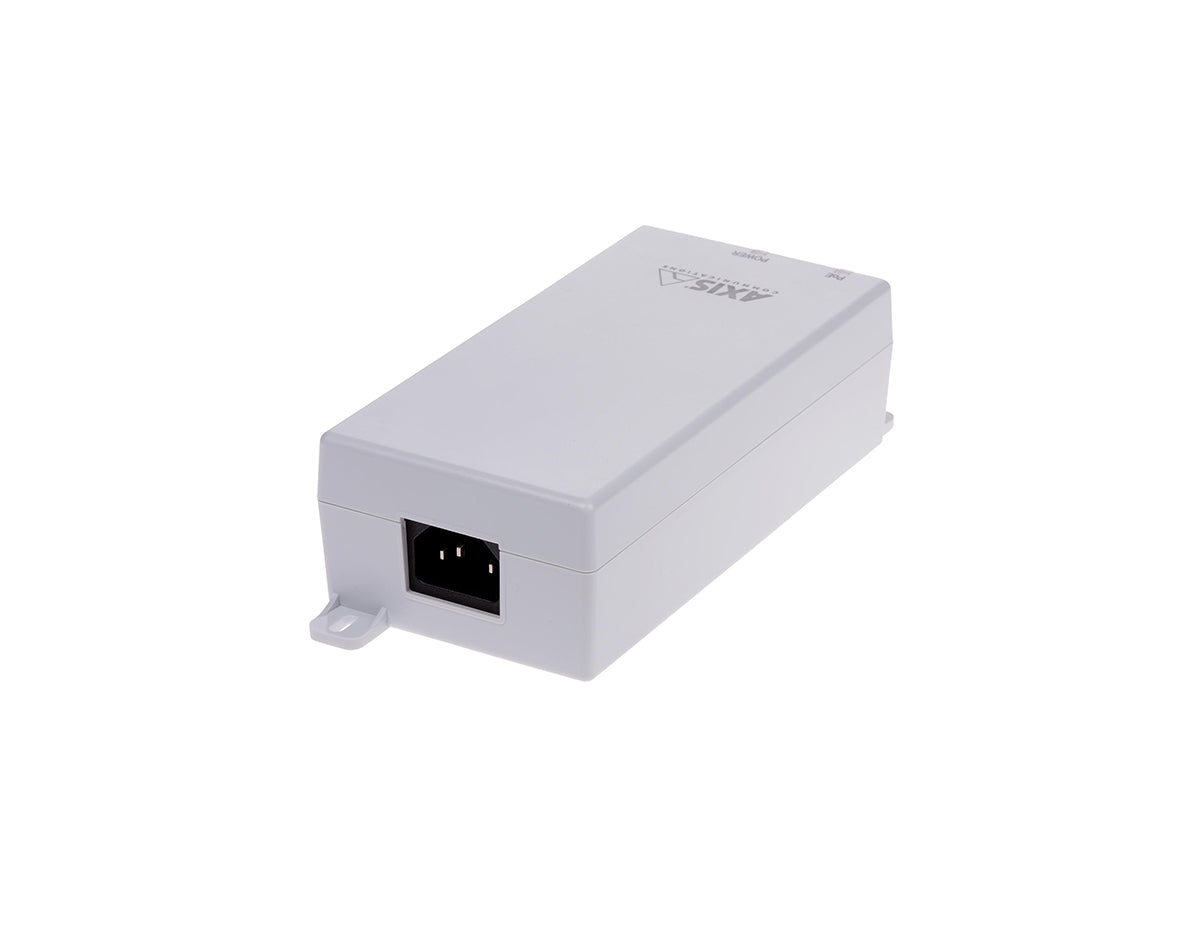

- Connectors: Shielded RJ45, SFP slot, C14 power connector
- Operating Temperature: Up to 30W: -10 °C to 55 °C (14 °F to 131 °F); Up to 60W: -10 °C to 45 °C (14 °F to 113 °F)
- Dimensions: 50 x 80 x 184 mm (2.0 x 3.1 x 7.2 in)
- Weight: 517 g (1.1 lb)
- Approvals: IEC/EN/UL 60950-1, EN 62368-1, EN 55022 Class A, FCC Part 15 Class A
For more information about the AXIS T8154 60W SFP Midspan, visit the Axis product page.
Properties
| Product Name | AXIS T8154 60W SFP Midspan |
| Description | The AXIS T8154 60W SFP Midspan is a versatile, high-power midspan designed for network and fiber installations, delivering up to 60W of Power over Ethernet (PoE). With an SFP slot for fiber, it provides flexible data input options, making it ideal for high-demand applications such as powering PTZ cameras. |
| Power Output | 55 V DC, up to 60W for PoE applications |
| Data Rate | Supports up to 10/100/1000 Mbps Ethernet speeds |
| Connectors | Shielded RJ45, SFP slot for fiber, C14 power input |
| PoE Compatibility | Compatible with all Axis network products supporting PoE |
| Operating Temperature | -10 °C to 45 °C (up to 60W), -10 °C to 55 °C (up to 30W) |
| Dimensions | 50 mm x 80 mm x 184 mm (2.0 in x 3.1 in x 7.2 in) |
| Weight | 517 g (1.1 lb) |
| Installation Type | Plug-and-play with automatic detection of PoE-enabled devices |
| Fiber Support | SFP slot for flexible fiber installation options |
| Network Compatibility | Works with PoE and PoE+ Axis devices, supporting high-power requirements |
| Color | Axis standard black finish for equipment compatibility |
| Compliance | IEC/EN/UL 60950-1, EN 62368-1 |
| Reliability | Designed for continuous, high-demand operation in controlled environments |
| Power Input | Supports standard 100–240 V AC via C14 power connector |
| Safety Certifications | UL, CE, FCC Part 15 Class A |
| Ingress Protection | Indoor-rated, suitable for network equipment rooms |
| Bandwidth Optimization | Optimized for gigabit connections with minimal data loss |
| Noise Level | Passive cooling for silent operation |
| Firmware Updates | Not applicable |
Specifications
| Supported Protocols | Compatible with standard Ethernet and fiber protocols for flexible connectivity |
| Power Consumption | Designed to supply full 60W output without power degradation over time |
| Thermal Testing | Tested for stable operation up to 45 °C under full load |
| Humidity Range | Supports up to 90% relative humidity in non-condensing environments |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU) |
| Vibration Resistance | Tested for vibration stability in typical rack and cabinet installations |
| Data Transmission | Shielded connectors reduce signal interference for reliable data transmission |
| Corrosion Resistance | Powder-coated for enhanced durability in indoor network cabinets |
| Efficiency | Efficient PoE delivery with minimal heat output, supporting high-performance Axis devices |
| Installation Compatibility | Fits standard network racks and shelves for organized setups |
| Reliability Rating | Designed for continuous operation with MTBF rating for long-term durability |
| Network Stability | Supports consistent data transmission even at maximum power output |
| Color Finish | Black, compatible with typical network equipment aesthetics |
| Maintenance | Low maintenance; designed for prolonged use with minimal servicing |
| Compliance | Complies with EN 55022 Class A, FCC Part 15 Class A for electromagnetic compatibility |
| Noise Level | Silent operation with passive cooling design |
| Reliability Tests | Tested for 48-hour continuous operation under varied load conditions |
| Firmware Compatibility | Not applicable |
