Description

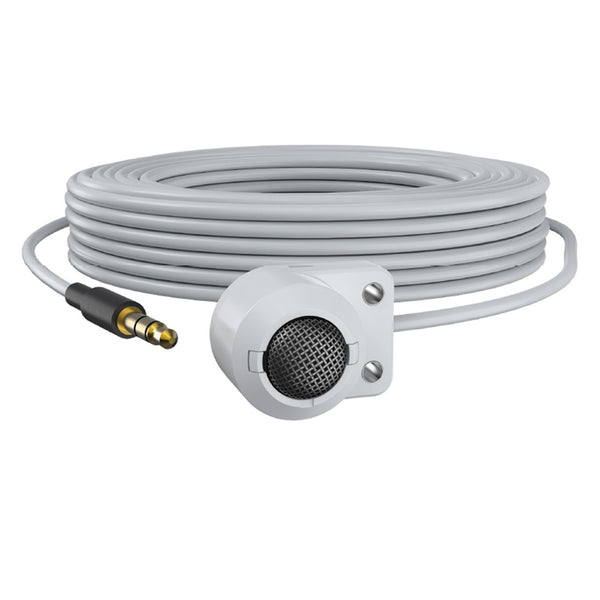

AXIS T8355 3.5 mm Digital Microphone (01561-001)

The AXIS T8355 Digital Microphone is a high-performance, discreet audio solution designed for professional surveillance environments. With a hemispherical pickup pattern, it captures sound from every direction, making it ideal for large areas. Its support for S/PDIF output ensures lossless audio signal transmission, while its robust IP65-rated design withstands challenging environmental conditions. The included 5-meter cable provides flexibility for various mounting options, ensuring seamless integration into your surveillance system.

Key Features:

• Superior Audio Quality: Supports S/PDIF output for lossless digital audio transmission.
• Hemispherical Pickup: Collects sound from all directions for comprehensive audio coverage.
• Robust Construction: IP65-rated plastic casing ensures durability in various environments.
• Flexible Installation: Compact design with a 5-meter cable and multiple mounting accessories included.
• Power Efficient: Operates on 9–13 V DC power supplied by the Axis network product.

Technical Specifications:

• Frequency Range: 20 Hz – 20 kHz
• Max SPL: 130 dB (10% THD)
• SNR: 76 dB A-weighted
• Power: 9–13 V DC, 0.1 W maximum consumption
• Connectors: 3.5 mm stereo plug or terminal block with included extender
• Cable Length: 5 meters (16.4 feet)
• Operating Conditions: -40 °C to 70 °C (-40 °F to 158 °F), 0–75% RH (non-condensing)
• Dimensions: 27 x 20 x 20 mm (1.06 x 0.79 x 0.79 in)
• Weight: 90 g (0.20 lb)
