Description

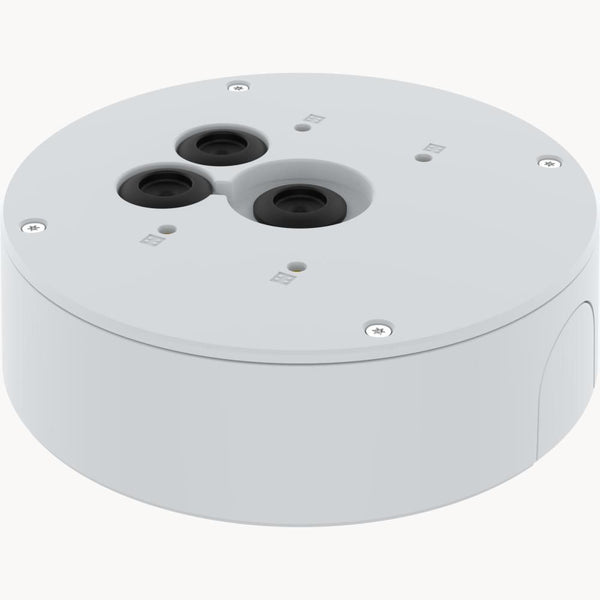

AXIS TQ3601-E Conduit Back Box (02913-001)

The AXIS TQ3601-E Conduit Back Box is a high-durability mounting accessory designed for secure cable routing and device storage in both indoor and outdoor environments. Compatible with Axis Q35, Q36, Q38, and P38 Network Camera Series, this back box provides a sealed compartment for cable slack and connectivity devices. It features an IP66/IP67-rated weatherproof casing and IK10 impact resistance, ensuring long-term reliability in challenging conditions. The box includes multiple conduit interfaces for flexible installation and comes with pre-installed gaskets and cable management accessories.

Key Features:

• Rugged Weatherproof Design: IP66/IP67-rated for protection against water and dust.
• Impact-Resistant Casing: IK10-rated for vandal resistance.
• Secure Cable Storage: Sealed compartment for connectivity devices and cable slack.
• Flexible Installation: Supports double gang, single gang, octagon, and square junction boxes.
• Multiple Conduit Interfaces: ¾” / M25 conduit entries on both sides and back.
• Compatible with Large Cameras: Designed for cameras with diameters between 184-198 mm (7.2-7.8 in).

Technical Specifications:

• Material: Powder-coated aluminum with stainless steel screws (TX20)
• Color: White (NCS S 1002-B)
• Ingress Protection: IP66/IP67
• Impact Resistance: IK10
• Cable Routing: Back (3 cable holes), sides (3/4” conduit entries), underside (4x M20 gaskets)
• Maximum Load: 5 kg (11 lb)
• Dimensions: Diameter: 197 mm (7.76 in), Height: 58.5 mm (2.30 in)
• Weight: 1.3 kg (2.87 lb)
