Class/Division 1- and Zone 1-certified camera with deep learning, Worldwide hazardous area certifications, Excellent light sensitivity, Advanced analytics preinstalled, Suitable for installation worldwide, Axis Edge Vault safeguards device
Description

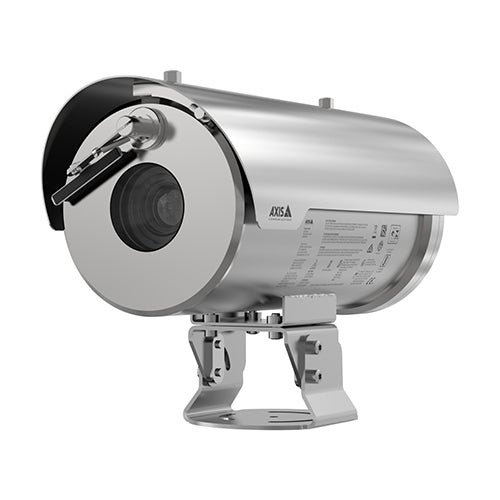

1/1.8” sensor, 4 MP, Day/night, explosion-protected fixed camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0. Includes an IR corrected varifocal 3.9-10 mm F1.5 i-CS lens with remote zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 4MP stream up to 60 fps, 30 fps with WDR. AXIS Object Analytics with PPE monitoring (missing hard hat detection), Video motion detection, shock detection and active tampering alarm. Smoke alert smoke and fire detection analytic. AXIS Edge Vault with FIPS certified TPM for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Optional analog or digital microphone, two-way audio. Supervised I/O for alarm/event handling, 128GB SD card included. Serial port for RS485 communication. PoE or 110-230VAC power input, SFP + RJ45 for network connectivity. Electropolished stainless steel (316L) enclosure, certified for use in hazardous areas according to ATEX, IECEx, cMETus. Ex db IIC T5 Gb, Ex tb IIIC T100 degreeC Db, Class I/II/III Div 1 Groups B, C, D, E, F, G, Class I Zone 1 AEx db IIC T5 Gb, Zone 21 AEx tb IIIC T100 degreeC Db. IP 66/67/68, Type 4X. Certificate: 20ATEX0651X (ATEX), EXV 20.0017X (IECEx), E115198 (cMETus), part code: F31. Swivel joint included.
Properties
| Properties | XFQ1656 |
| Description | AXIS XFQ1656 is certified worldwide for use in hazardous locations(ClassI/II/III Div 1, Zone 1,21, IIC, IIIC, and Ex I Mb certified). In addition to reinstalling a smoke-alert analytics monitor for signs of smoke or fire in explosive environments, AXIS Object Analytics can detect people in restricted areas and supports safety compliance with hardhat detection. |
| Product Family | Axis Cameras |
| Product Type | Explosion-protected Camera |
| Image sensor | 1/1.8″ progressive scan RGB CMOS |
| Lightfinder | Lightfinder 2.0 |
| Wide dynamic range | Forensic WDR |
| Multi-view streaming | Up to 8 individually cropped out view areas |
| PoE Class | 6 |
| Signed firmware | Yes |
| Secure boot | Yes |
| TPM | Yes |
| Remote focus | Yes |
| Remote zoom | Yes |
| Local storage (memory card slot) | Yes |
| Outdoor Ready | Yes |
| IP rating | IP66, IP67, IP 68 |
| AC input voltage | 100-240 V |
| Max consumption | 51 W |
| Average consumption | 11.5 W |
| Dimensions | 342 x 160 x 170 mm (13.46 x 6.3 x 6.7 in) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Event actions | Audio clips: play, play while the rule is active, stop |
| Day-night mode | |
| Defog: set defog mode, set defog mode while the rule is active | |
| I/O: toggle I/O once, toggle I/O while the rule is active | |
| MQTT: publish | |
| Notification: HTTP, HTTPS, TCP and email | |
| Overlay text | |
| Pre- and post-alarm video or image buffering for recording or | |
| upload | |
| Recordings: record, record while the rule is active | |
| SNMP traps: send, send while the rule is active | |
| Status LED | |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share and email | |
| WDR mode | |
| Wiper | |
| Applications | AXIS Object Analytics |
| AXIS Video Motion Detection, smoke alert | |
| Supported | Support for AXIS Camera Application Platform enabling installation of third-party applications. |
Specifications
| Specifications | AXIS XFQ1656 |
| System on chip (SoC) Model | ARTPEC-8 |
| Memory | 2048 MB RAM, 8192 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Min illumination/ light sensitivity (Color) | 0.05 lux |
| Min illumination/ light sensitivity (B/W) | 0.01 lux |
| Max video resolution | 2688×1512 |
| Max frames per second | 50/60 |
| Electronic image stabilization | Yes |
| Focal length | 3.9 – 10 mm |
| Optical zoom | – |
| Pan/Tilt/Zoom | Digital PTZ, digital zoom Guard tour (max 100), control queue, fixed orientation aid |
| Horizontal field of view | 81-47 ° |
| Vertical field of view | 45-27 ° |
| Zipstream | Yes |
| H.264 | Baseline, Main |
| H.265 | Yes |
| Motion JPEG | Yes |
| Audio features | AGC automatic gain control Network speaker pairing |
| Audio streaming | Configurable duplex: One-way (simplex, half duplex) Two-way (half duplex, full duplex |
Accessories
| Included accessories | Camera, installation guide, installation manual IM001, AXIS TQ1903-E Swivel Joint, AXIS TQ1924–E Washer Nozzle, AXIS TQ1917 Adapter M25x1.5-3/4 NPT, connector kit, H4 bit, owner authentication key, Declaration of Conformity |
| Optional accessories | |
| AXIS TQ1301-E | Pole Mount 50-150 mm, stainless steel |
| AXIS TQ1001-E | Wall Mount, stainless steel |
| AXIS TQ1303-E | Corner Mount, stainless steel |
| ASKDP03-T | Armored data and power cable |
| SKDP03-T | Non-armored data and power cable |
| ExConnection Rail 4-Port PoE | Four 30 W PoE ports |
| ExConnection Rail 8-Port PoE | Eight 30 W PoE ports |
