Call for Price

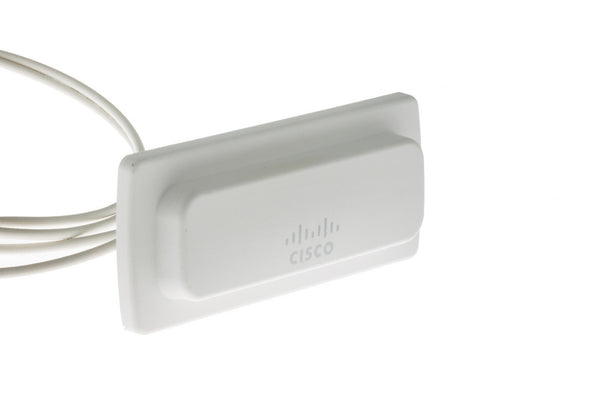

2.4 GHz2 dBi Omni Ceiling Antenna w/ RP-TNC ConnectorFor Aironet 3802E Series Access Points
Description
Cisco Aironet 2.4-GHz access point antennas are compatible with all Cisco RP-TNC-equipped access points. Coupling the appropriate antenna and access point allows for efficient coverage in any facility, as well as better reliability at higher data rates.
Properties
| Properties | Cisco AIR-ANT24020V-R 2.4-GHz Omnidirectional Antenna |
| Description | Indoor diversity omnidirectional antenna operating in the 2.4–2.5 GHz range for Cisco Aironet devices |
| Compatibility | 2.4-GHz Cisco Aironet devices with RP-TNC connectors |
| Product Type | Diversity Omnidirectional Antenna |
Specifications
| Specifications | AIR-ANT24020V-R |
| Frequency Range | 2400–2500 MHz |
| VSWR | 1.5:1 |
| Peak Gain | 2.2 dBi |
| Polarization | Linear |
| Azimuth Plane | Omnidirectional |
| Elevation Beamwidth | 97° |
| Dimensions (L x W x D) | 6.9 in x 3 in x <1 in (17.5 cm x 7.6 cm x <2.5 cm) |
| Cable | 3 ft. (91.4 cm) plenum-rated, UV-stable |
| Connector | RP-TNC |
| Operating Environment | Indoor use only |
| Temperature Range | 32°F to 131°F (0°C to 55°C) |
Accessories
| Included Accessories | Mounting hardware kit: 2 recessed ceiling T-rail spacers, 2 channel ceiling rail adapters, 2 Phillips screws |
| Suggested Cable | High-quality, low-loss coaxial cable (short length recommended to minimize signal loss) |
