Description

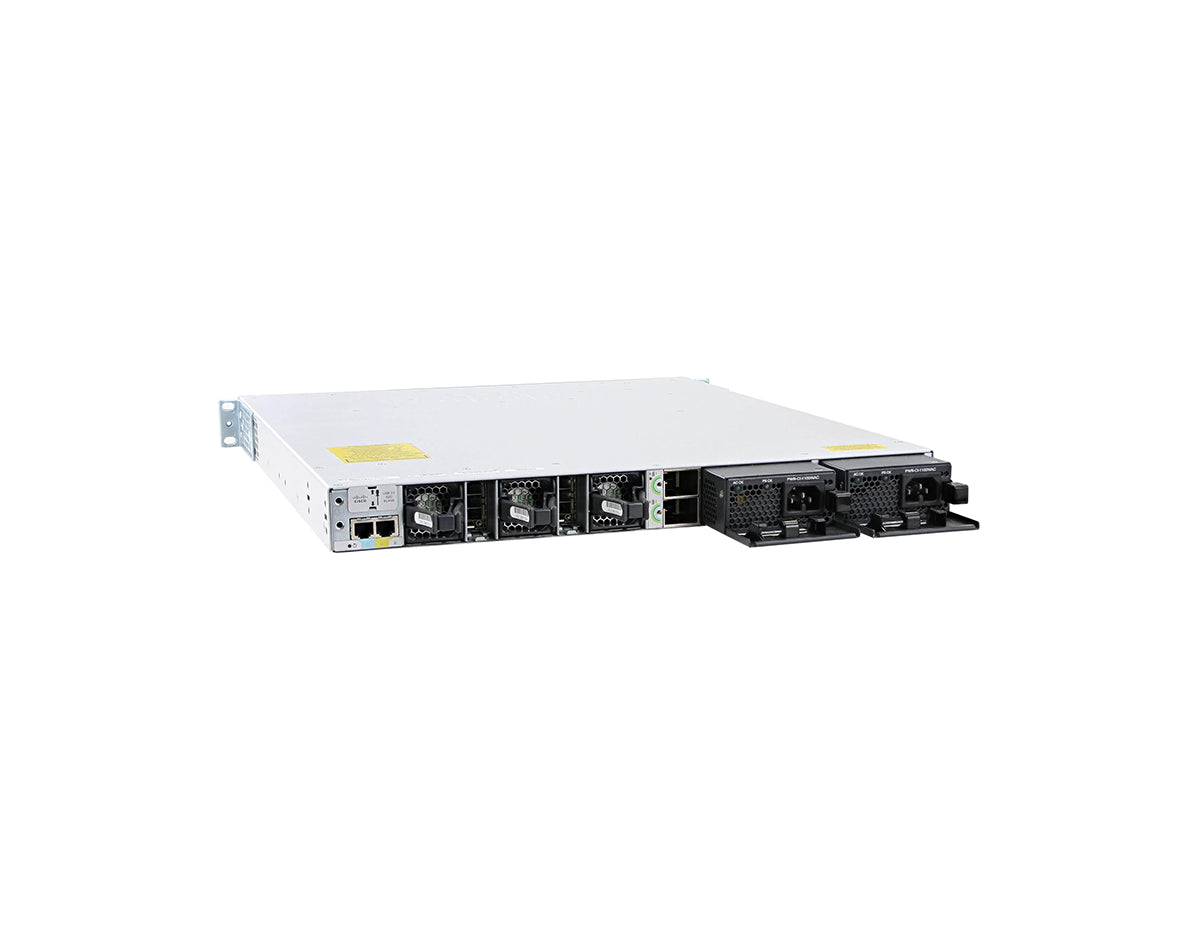

Cisco Catalyst C9300-48UXM-A Switch
The Cisco Catalyst C9300-48UXM-A Switch is a high-performance enterprise-class solution, designed to deliver advanced security, flexible management, and powerful connectivity. Featuring 48 Multigigabit UPOE ports, this switch is ideal for supporting high-density, data-intensive environments such as enterprise networks, campus deployments, and large branch offices. With its advanced Layer 3 routing capabilities and modular uplinks, the C9300-48UXM-A ensures your network remains scalable, secure, and efficient as your business grows.
Key Features:
- 48 x Multigigabit UPOE Ports: Supports speeds up to 10 Gbps and delivers up to 60W per port, ensuring reliable power and high-speed connectivity for demanding devices.
- Modular Uplinks: Includes flexible uplink options supporting 1G, 10G, and 40G, allowing for easy network expansion and future-proofing.
- Advanced Layer 3 Routing: Features protocols such as OSPF, EIGRP, and BGP, enabling sophisticated routing and efficient traffic management.
- StackWise-480 Technology: Provides up to 480 Gbps of stacking bandwidth, ensuring high availability and simplified management across multiple switches.
- Energy-Efficient Design: Compliant with IEEE 802.3az standards, optimizing power consumption while maintaining superior network performance.
- Robust Security: Integrates MACsec encryption, ACLs, and advanced security protocols to safeguard your network from unauthorized access.
Technical Overview:
- Recommended for: Large enterprises, corporate campuses, and data-driven environments.
- Ports: 48 x Multigigabit UPOE ports (100M/1G/2.5G/5G/10G) with up to 60W per port.
- Uplink Modules: Modular uplinks supporting 1G, 10G, and 40G for flexible network expansion.
- Switching Capacity: 208 Gbps.
- Forwarding Rate: 154.76 Mpps.
- Layer 3 Features: OSPF, EIGRP, BGP, VLANs, and ACLs for advanced network control.
- Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive network automation and monitoring.
- Licensing: Network Advantage.
- Security: MACsec encryption and advanced access control features.
- Energy Efficiency: Meets IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the C9300-48UXM-A datasheet.
Properties
| Properties | C9300-48UXM-A |
| Description | Catalyst 9300 48-port 2.5G (12 10G/mGig) copper with modular uplinks, UPOE, Network Advantage‚ |
| Product Family | Catalyst 9300 |
| Product Type | Ethernet Switch |
| Number of Ports | 48 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
48 port Cisco UPOE, 36 ports 100M/1G/2.5G + 12 ports Multigigabit (10G/5G/2.5G/1G/100M)‚ |
| Uplink configuration | Modular uplink options |
| Cisco IOS Software | Network Advantage |
| Default primary AC power supply |
PWR-C1-1100WAC-P |
| Available PoE power with additional secondary power supply |
1590W (With 1100W Secondary PS) |
| Fans | Three field-replaceable fans |
| Chassis + FEP + ‚ Fan Dimensions (HxWxD) Inches |
1.73 x 17.5 x 22.2 |
Specifications
| Specifications | C9300-48UXM-A |
| Console Ports | RJ-45-to-DB9 cable for PC connections‚ |
| DRAM | 8 GB‚ |
| Flash Memory | 16 GB‚ |
| Switching capacity | 580 Gbps |
| Forwarding rate‚ | 431.54 Mpps‚ |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications |
47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Accessories
| Stacking Support | Stackwise-480‚ |
| Stacking bandwidth support | 480 Gbps‚ |
| Stacking hardware‚ | StackWise Cable‚ |
| Number of members |
8 |
| Supported stack members | Other C9300 SKUs with same license level C9300 higher scale SKUs only stack with other like higher scale models |
| Stacking accessories | |
| STACK-T1-50CM‚ | Data stack 50 cm (cable option with C9300 and C9300X SKUs)‚ |
| STACK-T1-1M‚ | Data stack 1m (cable option with C9300 and C9300X SKUs)‚ |
| STACK-T1-3M‚ | Data stack 3m (cable option with C9300 and C9300X SKUs)‚ |
