Call for Price
Catalyst 9300 2 x 40GE Network Module
Description

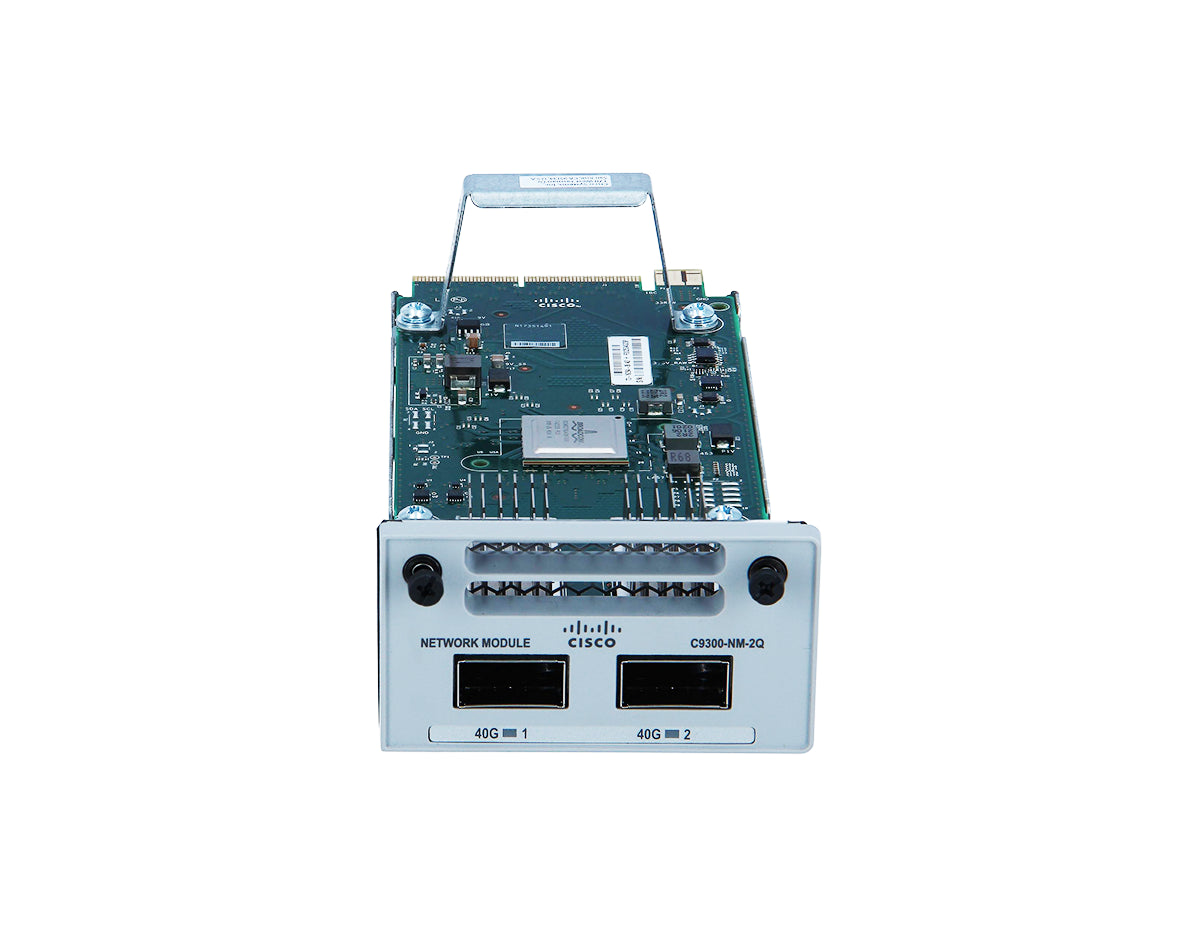

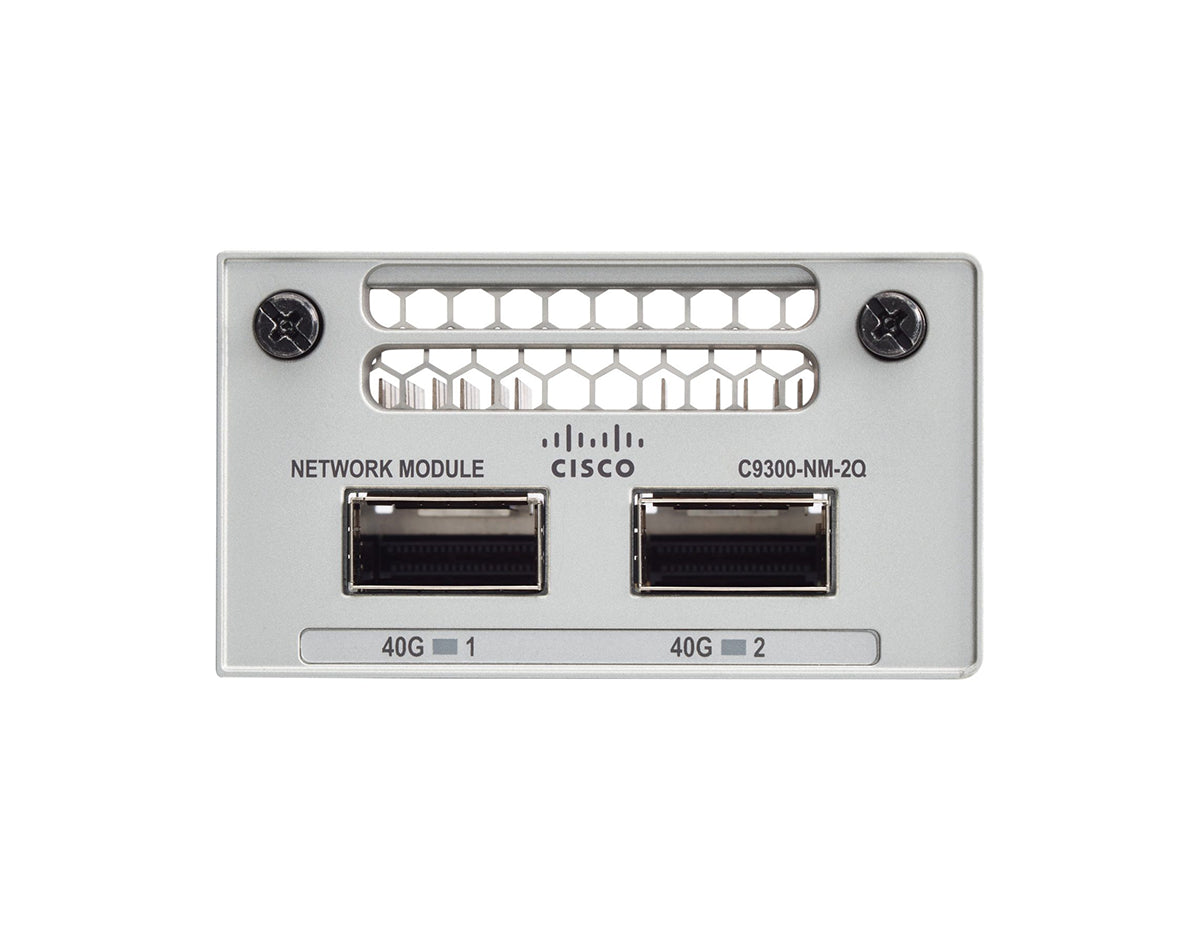

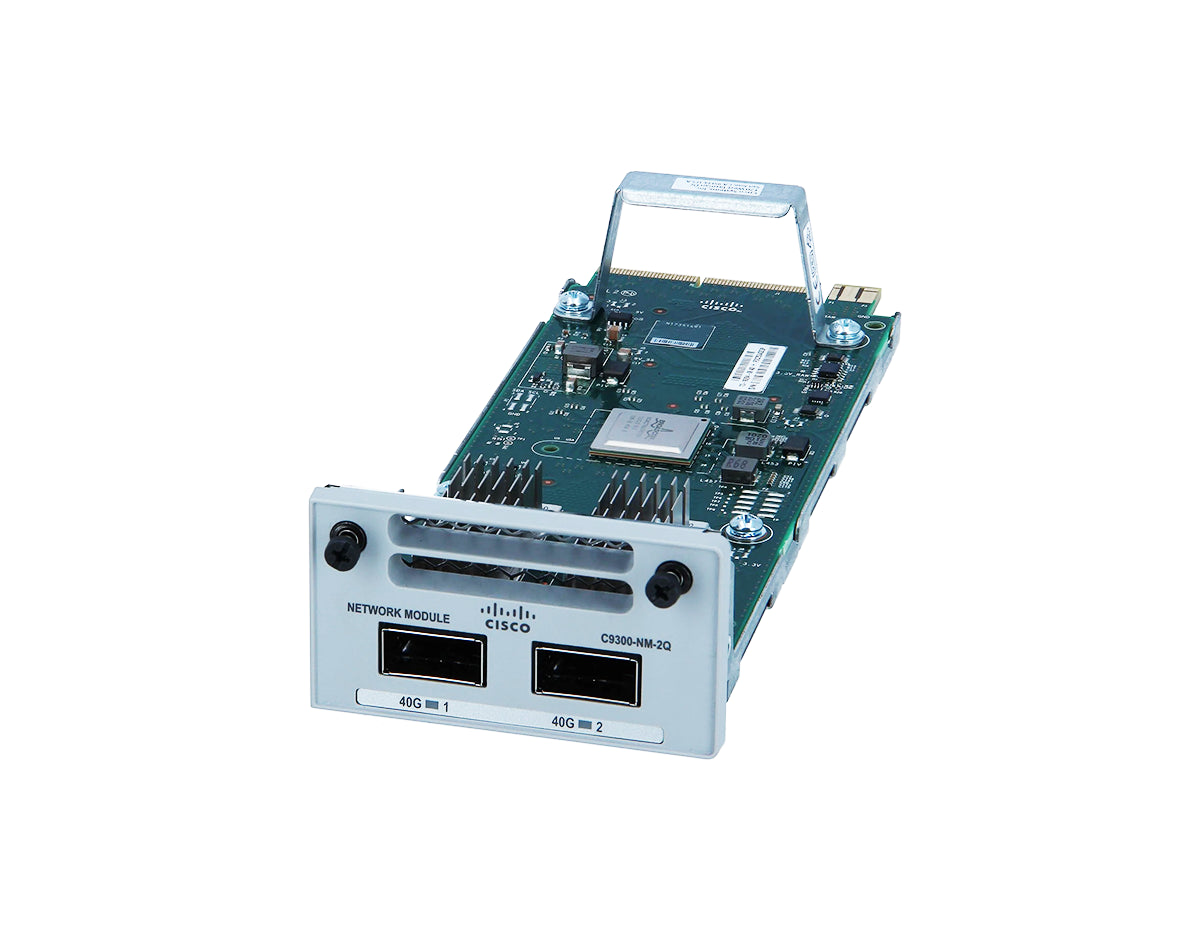

Cisco Catalyst C9300-NM-2Q Network Module
The Cisco Catalyst C9300-NM-2Q Network Module is a high-performance expansion option designed to enhance the connectivity of Cisco Catalyst 9300 Series Switches. Featuring two 40G QSFP+ ports, this network module provides ultra-fast uplink capabilities, making it ideal for enterprises that demand high-speed data transfer and robust network performance. The C9300-NM-2Q is perfect for organizations looking to upgrade their network infrastructure with scalable, future-proof solutions.
Key Features:
- Two 40G QSFP+ Ports: Offers ultra-fast uplink options to increase network capacity and speed, ideal for data-intensive environments.
- Seamless Integration: Fully compatible with Cisco Catalyst 9300 Series Switches, ensuring smooth integration and enhanced network performance.
- Scalable Design: Supports network growth and adaptation, making it an excellent choice for evolving business needs.
- Easy Installation: Designed for straightforward installation, allowing for quick and efficient upgrades to your network infrastructure.
Technical Overview:
- Recommended for: Enhancing the uplink capabilities of Cisco Catalyst 9300 Series Switches.
- Ports: 2 x 40G QSFP+ ports.
- Compatibility: Specifically designed for Cisco Catalyst 9300 Series Switches.
- Application: Ideal for enterprises requiring high-speed data transfer and expanded network capacity.
You can check the related tab for the C9300-NM-2Q datasheet.
Properties
| Properties | Cisco Catalyst C9300-NM-2Q |
| Description | Catalyst 9300 2 x 40GE QSFP Network Module |
| Product Family | Catalyst 9300 |
| Product Type | Expansion Module |
| Supported Devices | Cisco Catalyst 9300 Series Switches |
| Ports | 2 x 40G |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Mean Time Between Failures MTBF (hours) |
10,778,230 |
Specifications
| Specifications | C9300-NM-2Q |
| Connectors and cabling | 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling SFP transceivers: LC fiber connectors (single-mode or multimode fiber) SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber) QSFP+ transceivers: MPO and LC fiber connectors (single-mode or multimode fiber) QSFP+ connector SFP+ connector Cisco StackWise stacking ports: copper-based Cisco StackWise cabling Cisco StackPower: Cisco proprietary power stacking cables Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling Management console port: RJ-45-to-DB9 cable for PC connections |
| Safety certifications | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic emissions certifications | 47 CFR Part 15 CISPR22 Class A EN 300 386 V1.6.1 EN 55022 Class A EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR24 EN 300 386 EN55024 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 IEC 61000-6-1 EN 61000-6-1 Additional Certifications for C9300L SKUs: QCVN 118:2018/BTTTT CISPR24/25 CISPR 32 Class A VCCI-CISPR 32 Class A EN55035 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Accessories
| Stacking accessories | |
| STACK-T1-50CM‚ | Data stack 50 cm (cable option with C9300 SKUs) |
| STACK-T1-1M | Data stack 1m (cable option with C9300 SKUs) |
| STACK-T1-3M | Data stack 3m (cable option with C9300 SKUs) |
| C9300L-STACK-KIT | Stack kit for C9300L SKUs only: Two data stack adapters and one data stack cable |
| STACK-T3-50CM | Data stack 50cm cable (default cable with C9300L Stack Kit) |
| STACK-T3-1M | Data stack 1m cable (cable option with C9300L Stack Kit) |
| STACK T3-3M | Data stack 3m cable (cable option with C9300L Stack Kit) |
