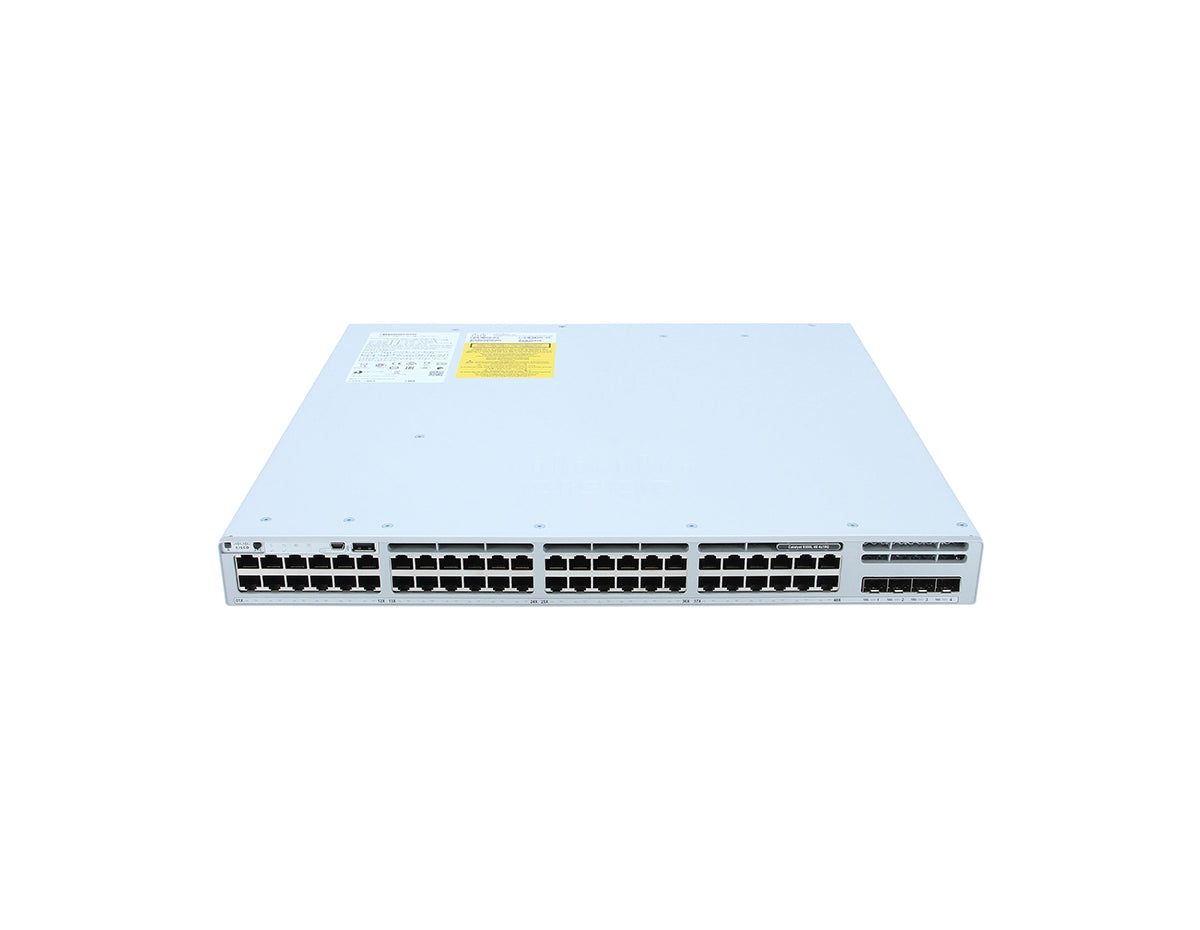

Cisco C9300L-48T-4X-A is a 48× 1G non-PoE Layer 3 switch with 4× 10G SFP+ uplinks, StackWise-320 support, and Network Advantage license.
Description
At a Glance
- Ports: 48 × 1G Ethernet (non-PoE)
- Uplinks: 4 × 10G SFP+ fixed uplinks
- Stacking: StackWise-320 (up to 8 units, 320 Gbps bandwidth)
- Software: Network Advantage License (Layer 3, SD-Access ready)
- Warranty: 1-Year Hardware Warranty by our company
Product Overview
The Cisco C9300L-48T-4X-A is an enterprise-grade Layer 3 switch designed for high-performance access deployments in campus LAN and branch environments. It features 48 non-PoE Gigabit Ethernet ports and four 10G SFP+ uplinks, making it ideal for MDF/IDF closets, server access, and high-throughput aggregation.
This model supports Cisco StackWise-320, enabling up to eight units to be managed as a single logical switch with 320 Gbps of stacking bandwidth. With the Network Advantage license pre-installed, it delivers advanced routing capabilities (OSPF, EIGRP, BGP, VRF), full access to Cisco DNA Center features, and future-ready programmability with Cisco IOS XE and UADP ASIC architecture.
The C9300L-48T-4X-A supports dual redundant power supplies (one installed by default) and three field-replaceable fan modules for high availability. It is purpose-built for secure, scalable, and highly resilient enterprise access networks.
Technical Specifications
Hardware
- Model: C9300L-48T-4X
- Ports: 48 × 10/100/1000 Ethernet ports (non-PoE)
- Uplinks: 4 × 10G SFP+ fixed uplink ports
- Stacking Support: StackWise-320
- Stacking Bandwidth: 320 Gbps
- Power Supply: 1 × 350W AC (standard efficiency)
- Fan Modules: 3 × field-replaceable fans
- Physical Dimensions: 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm)
- Weight: 15.41 lbs (7.0 kg)
Performance
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.95 Mpps
- DRAM: 8 GB
- Flash Memory: 16 GB
- VLAN Support: 4094 VLANs
- MAC Address Table Size: 32,000 entries
- Jumbo Frame Support: Up to 9198 bytes
Software & Features
- Operating System: Cisco IOS XE
- License Tier: Network Advantage
- Routing Protocols: OSPF, EIGRP, BGP, IS-IS, VRF
- Security Features: MACsec with AES-128 and AES-256 encryption, 802.1X, ACLs
Frequently Asked Questions (FAQ)
Can the C9300L-48T-4X-A be stacked with other Catalyst 9300L switches?
Yes. This model supports StackWise-320 and can stack with other compatible Catalyst 9300L switches, up to 8 units.
Does this switch support Cisco StackPower?
No. StackPower is not supported on Catalyst 9300L models. Power redundancy is achieved via optional dual PSUs.
How can I manage the switch?
You can manage it via CLI (console), Cisco DNA Center, and monitor it using the Meraki dashboard. Full programmability is available through Cisco IOS XE.
What warranty is included with this switch?
This switch includes a 1-year hardware warranty, with direct support and replacement services provided by our company.
Properties
| Properties | C9300L-48T-4X-A |
| Description | Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only Network Advantages |
| Product Family | Catalyst 9300 |
| Product Type | Ethernet Switch |
| Number of Ports | 48 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
48 port Data |
| Uplink configuration | 4x 10G/1G fixed uplinks |
| Cisco IOS Software | Network Advantage |
| Default primary AC power supply |
PWR-C1-350WAC-P |
| Available PoE power with additional secondary power supply |
No PoE |
| Fans | – |
| Chassis + FEP + Fan Dimensions (HxWxD) Inches |
1.73 X 17.5 X 17.7 |
Specifications
| Specifications | C9300L-48T-4X-A |
| Console Ports | RJ-45-to-DB9 cable for PC connections |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| Switching capacity | 176 Gbps |
| Forwarding rate | 130.95 Mpps |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 |
| Electromagnetic compatibility certifications |
47 CFR Part 15 EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386 EN 55035 TCVN 7317 V-2/2015.04 V-3/2015.04 CNS13438 KN32 KN35 QCVN 118:2018/BTTTT VCCI-CISPR 32 Class A |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
Accessories
| Stacking Support | Stackwise-320 |
| Stacking bandwidth support | 320 Gbps |
| Stacking hardware | C9300L-STACK-KIT |
| Number of members |
8 |
| Supported stack members | Other C9300 SKUs with same license level |
| Stacking accessories | |
| STACK-T3-50CM | Data stack 50cm cable (default cable with C9300L Stack Kit) |
| STACK-T3-1M | Data stack 1m cable (cable option with C9300L Stack Kit) |
| STACK T3-3M | Data stack 3m cable (cable option with C9300L Stack Kit) |
| C9300L-STACK-KIT | Stack kit for C9300L SKUs only: Two data stack adapters and one |
| C9300L-STACK-KIT2 | Stack kit for C9300LM and C9300L SKUs: Two data stack adapters and one data stack cable |
| STACK-T3A-50CM | Data stack 50cm cable (cable option with C9300L Stack Kit2) |
| STACK-T3A-1M | Data stack 1m cable (cable option with C9300L Stack Kit2) |
| STACK-T3A-3M | Data stack 3m cable (cable option with C9300L Stack Kit2) |
