Power supplyAC2100 Wattfor P/N
Description

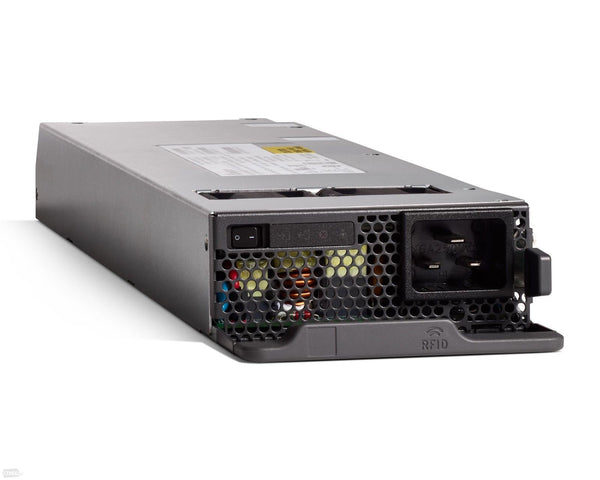

Cisco Catalyst C9400-PWR-2100AC Power Supply
The Cisco Catalyst C9400-PWR-2100AC Power Supply is a reliable and energy-efficient power source designed to support the Cisco Catalyst 9400 Series modular switches. Delivering 2100W of AC power, this power supply ensures that your network infrastructure has the stable and consistent power it needs to maintain high performance and uptime. Ideal for enterprise networks, the C9400-PWR-2100AC is engineered to meet the demands of modern networking environments, offering redundancy and resilience to keep your network running smoothly.
Key Features:
- 2100W Power Capacity: Provides ample power to support high-performance network operations, ensuring consistent and reliable performance.
- Redundant Power Support: Designed to work in tandem with other power supplies for redundancy, enhancing network reliability and minimizing downtime.
- Energy Efficient: Built with energy-efficient technologies to reduce power consumption and lower operational costs.
- Seamless Integration: Fully compatible with Cisco Catalyst 9400 Series switches, ensuring easy installation and integration.
- High Availability: Supports hot-swappable installation, allowing for maintenance without disrupting network operations.
Technical Overview:
- Recommended for: Enterprise networks requiring a reliable and redundant power solution for Cisco Catalyst 9400 Series switches.
- Power Output: 2100W AC.
- Compatibility: Fully compatible with Cisco Catalyst 9400 Series modular switches.
- Energy Efficiency: Designed to minimize power usage and reduce operational expenses.
- Installation: Supports hot-swappable installation for continuous network operation during maintenance.
You can check the related tab for the C9400-PWR-2100AC datasheet.
Specifications
| Properties | Cisco C9400-PWR-2100AC |
| Description | 2100WAC power supply |
| Product Family | Catalyst 9400 |
| Product Type | Power Supply |
| Power supply rated maximum | 2100W |
| AC-input voltage | Low-line (115 VAC nominal)¢‚¬85 VAC (min) to 132 VAC (max) High-line (230 VAC nominal)¢‚¬180 VAC (min) to 264 VAC (max) |
| AC-input current | 11.44 A at 100 VAC (950 W output) 11.44 A at 200 VAC (2112 W output) |
| AC-input frequency | 50/60Hz nominal (47 to 63Hz full range) |
| Form Factor | Plug-in module |
| Power Device Features | Integrated PoE |
| Power supply output capacity |
For 55 VDC output 940W at 115 VAC; 2102W at 230 VAC For 3.3VDC output 10W at 115 VAC; 10 W at 230 VAC |
| Power supply output | ¢‚¬¢ 100 to 120 VAC operation ‚ ‚ ‚ ¢‚¬¢ 3.0A @ 3.3 V ‚ ‚ ‚ ¢‚¬¢ 17.09A @ 55V ¢‚¬¢ 200 to 240 VAC operation ‚ ‚ ‚ ¢‚¬¢ 3.0A @ 3.3 V ‚ ‚ ‚ ¢‚¬¢ 38.21A @ 55V |
| Output holdup time | 20 ms minimum. |
| kVA rating | 2112W (total output power) or 2246.8 kVA (high-line operation)‚ |
| Heat dissipation (in British Thermal Units (BTU)) |
For 2112W¢‚¬460.0 BTU per hour For 950W¢‚¬244.0 BTU per hour |
| Weight | 5.0 lb (2.3 kg) |
| Branch circuit requirement |
Each chassis power supply should have its own dedicated, fused-branch circuit: ¢‚¬¢ North America¢‚¬15 A. ¢‚¬¢ International¢‚¬Circuits sized to local and national codes. ¢‚¬¢ All AC power supply inputs are fully isolated. |
