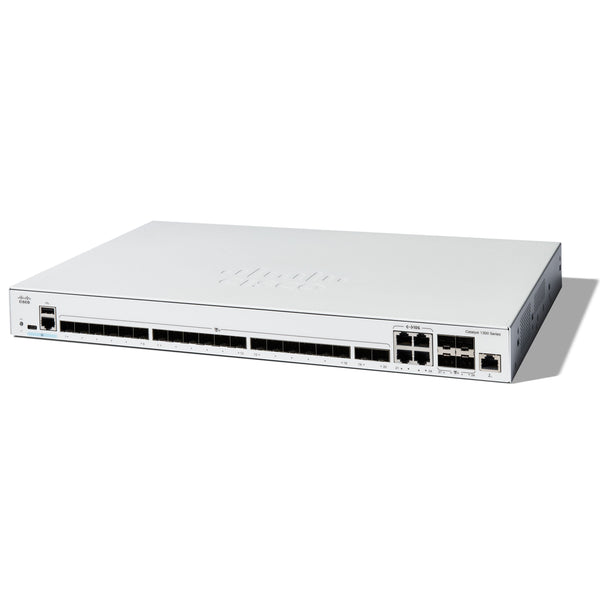

Cisco Catalyst 1300 Series 20x SFP+ 4x SFP+ Combo Managed Switch (C1300-24XS)

The Cisco Catalyst 1300 Series Managed Switch (C1300-24XS) delivers robust and reliable connectivity for businesses needing high-speed data transfer and advanced traffic management. Equipped with twenty 10G SFP+ slots and four RJ45/SFP+ combo ports, this switch enables flexible network expansion with fiber or copper options. Designed for scalability, it supports front-panel stacking of up to eight switches, allowing for centralized management through a single IP address. With a switching capacity of 480 Gb/s and enhanced security features like DHCP snooping and DoS prevention, the Catalyst 1300 is built to handle demanding network environments.

Key Features:

• High-Speed Connectivity: 20 SFP+ 10 GbE ports and 4 RJ45/SFP+ combo ports support flexible copper and fiber connections.
• Advanced Traffic Management: Dynamic Layer 3 routing and VLAN segmentation improve network efficiency.
• Stacking Support: Front-panel stacking for up to 8 switches simplifies network configuration and management.
• Strong Security: Includes DHCP snooping, RADIUS authentication, DoS attack prevention, and storm control.
• Energy Efficient: Internal power supply with a maximum draw of 49.46 W ensures optimized power usage.
• Compact Design: Rack-mountable, metal construction with low noise output (27.6 dB), ideal for space-constrained environments.

Technical Specifications:

• Ports: 20x SFP+ 10 GbE, 4x RJ45/SFP+ combo, 1x RJ45, 1x USB-A, 1x USB-C
• Switching Capacity: 480 Gb/s
• Forwarding Rate: 357.14 Mpps
• Layer Support: Layer 2, Layer 3
• Jumbo Frame Support: 9000 Bytes
• Security Features: DHCP snooping, RADIUS, DoS attack prevention, storm control
• CPU: Dual-core up to 1.4 GHz
• Memory: 1 GB DDR4
• Power Consumption: 49.46 W (max), 21.3 W (idle)
• Input Power: 100-240 VAC, 50/60 Hz
• Dimensions: 445 x 350 x 44 mm (17.5 x 13.8 x 1.7 in)
• Weight: 4.15 kg (9.15 lb)
• Operating Temperature: -5°C to 50°C
• MTBF: 0.99 million hours
