Description

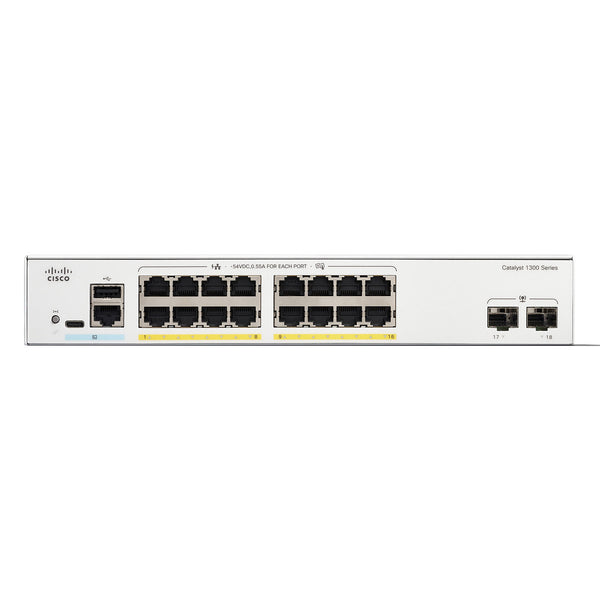

Cisco Catalyst C1300-16FP-2G 16-Port PoE+ Switch with 240W and 2 SFP

The Cisco C1300-16FP-2G is a fully managed Layer 3 Gigabit switch built to meet the evolving demands of small and medium-sized businesses. It features 16 PoE+ Gigabit Ethernet ports and 2 Gigabit SFP uplinks, delivering advanced performance and high energy efficiency. With a 240W PoE budget and fanless design, this switch is optimized for quiet office deployments while powering devices like IP phones, cameras, and access points. The switch supports Layer 3 static routing, VLAN management, and robust security protocols including 802.1X and ACLs. Managed through the Cisco Business Dashboard or mobile app, the C1300-16FP-2G offers seamless setup, visibility, and control for modern network environments.

Key Features:

• PoE+ Connectivity: 16 x 10/100/1000 Mbps PoE+ ports (up to 30W per port), with a total PoE budget of 240W.
• Uplink Flexibility: 2 x 1G SFP slots for reliable fiber or copper uplinks.
• Fanless Design: Silent operation makes it ideal for office or front-desk installations.
• Layer 3 Functionality: Includes static routing support for efficient traffic segmentation and control.
• Enhanced Security: Includes access control lists (ACLs), 802.1X, DHCP snooping, and DoS protection.
• Smart Management: Manageable via web GUI, Cisco Business Dashboard, CLI, and mobile app.
• Energy Efficiency: Compliant with IEEE 802.3az standards for reduced power consumption.

Technical Specifications:

• Model: C1300-16FP-2G
• Ports: 16 x Gigabit Ethernet PoE+ (RJ-45), 2 x 1G SFP uplinks
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.78 Mpps
• PoE Budget: 240W total (IEEE 802.3af/at)
• MAC Address Table: 8000 entries
• Layer Support: Layer 3 static routing
• VLAN Support: 255 active VLANs
• QoS: 8 queues per port with DSCP/CoS classification and scheduling
• Jumbo Frame Support: Up to 9000 bytes
• Security Features: ACLs, 802.1X authentication, port security, DoS protection, DHCP snooping
• Management: Cisco Business Dashboard, Web GUI, CLI, SNMP, mobile app
• Power Supply: Internal, 100–240V AC, 50/60 Hz
• Power Consumption: Maximum 279.80W
• Cooling: Fanless
• Form Factor: Rack-mountable (1U)
• Dimensions: 269 x 308 x 44 mm (10.6 x 12.1 x 1.7 in)
• Weight: Approx. 2.45 kg (5.4 lb)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
