Managed, Rack-mountable, 24 x 1G PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (382W), Layer 2
Description

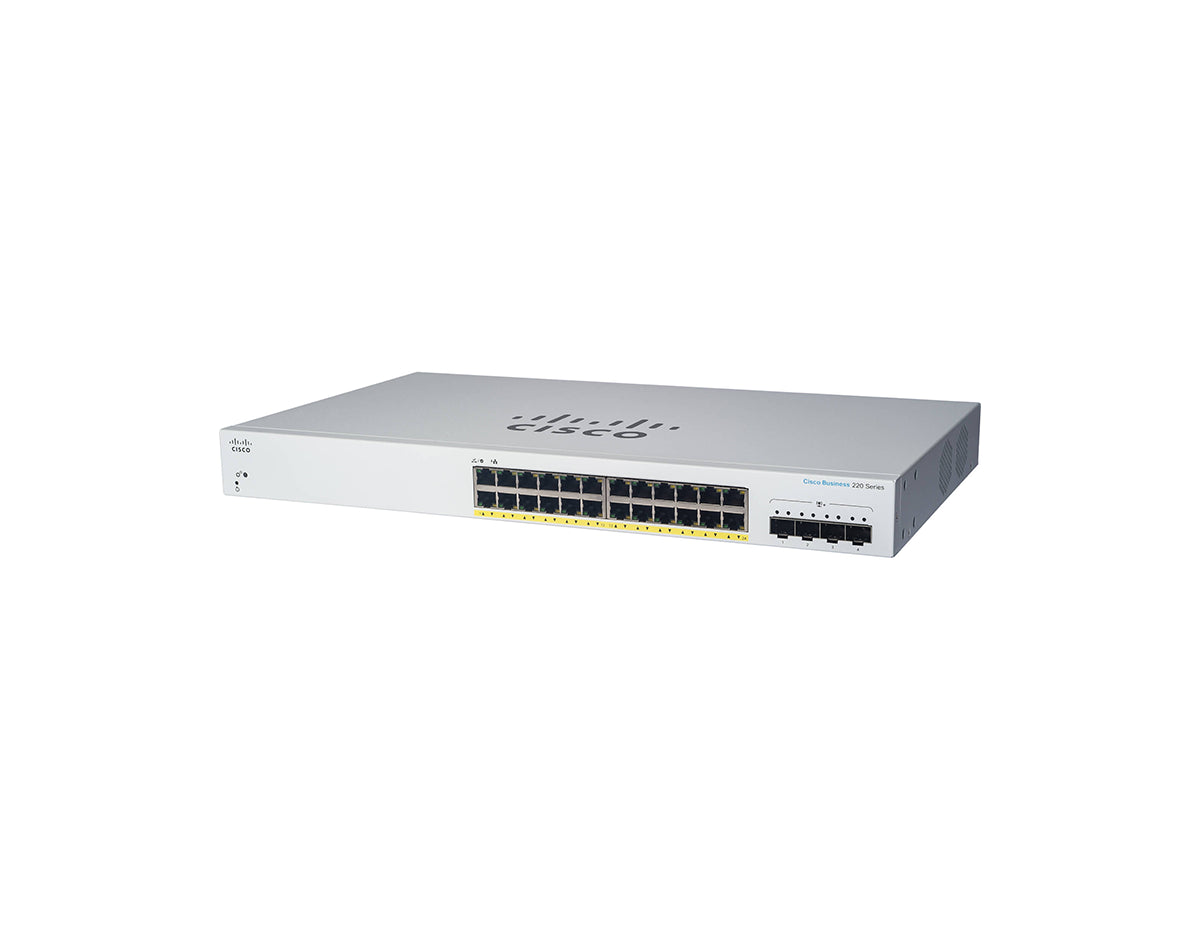

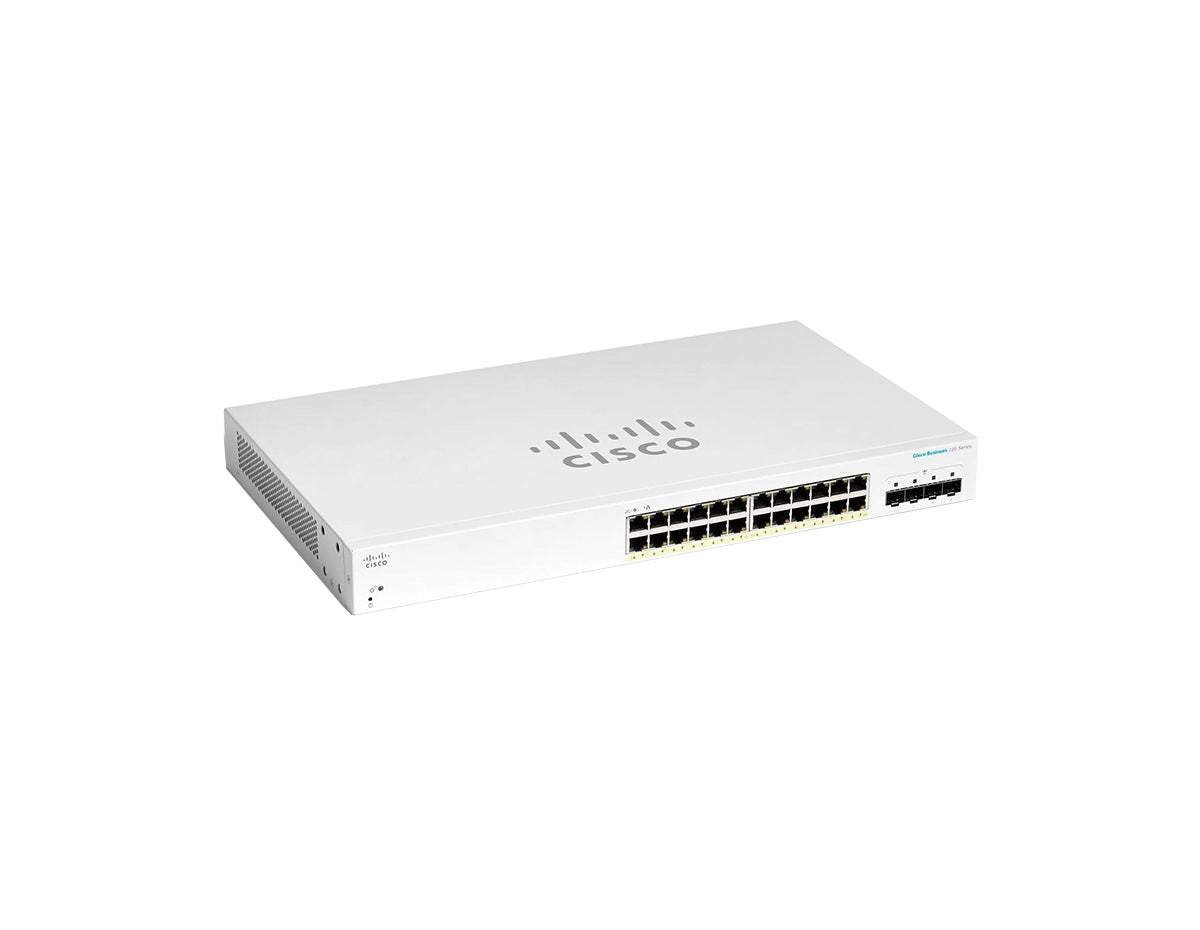

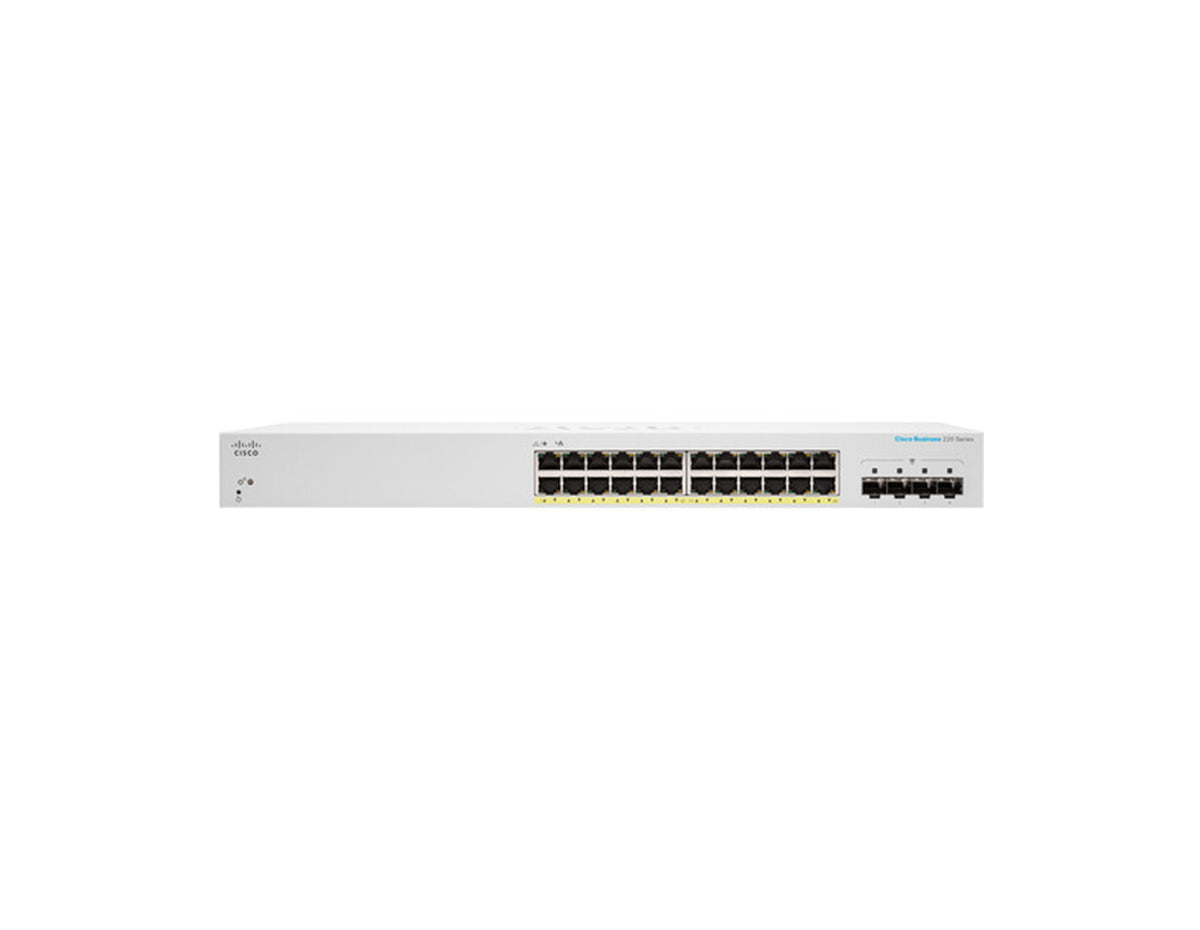

Cisco CBS220-24FP-4G Switch
The Cisco CBS220-24FP-4G is a managed 24-port Gigabit Ethernet switch with full Power over Ethernet (PoE) capabilities and 4 Gigabit SFP uplinks. This switch is ideal for small to medium-sized businesses needing high-speed connectivity and power for network devices such as IP phones, cameras, and wireless access points. With a PoE budget of 195W, the CBS220-24FP-4G allows for seamless deployment and scaling of network devices while ensuring efficient performance and robust security.
Key Features:
- 24 x Gigabit PoE Ports: Provides power and connectivity to devices like IP phones and cameras with a total PoE budget of 195W.
- 4 x Gigabit SFP Uplink Ports: Offers high-speed uplinks for seamless network expansion.
- Advanced Layer 2 Features: Includes VLAN support, QoS, and Link Aggregation for enhanced network management.
- Energy-Efficient Design: Complies with IEEE 802.3az standards to reduce power consumption during low traffic periods.
- Comprehensive Security: Supports 802.1X authentication, ACLs, and port security to protect your network from unauthorized access.
Technical Overview:
- Recommended for: Small to medium-sized businesses, retail environments, and branch offices.
- Ports: 24 x 10/100/1000 PoE Ethernet ports, 4 x 1G SFP uplinks.
- PoE Power Budget: 195W.
- Switching Capacity: 56 Gbps.
- Forwarding Rate: 41.66 Mpps.
- Energy Efficiency: Supports IEEE 802.3az standards for energy savings.
You can check the related tab for the CBS220-24FP-4G datasheet.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | CBS220-24FP-4G |
| Description | 24 10/100/1000 ports with 382W power budget 4 Gigabit SFP |
| Product Family | CBS 220 Series |
| Product Type | Small Business Switch |
| Number of Ports | 28 |
| RJ-45 ports | 24 Gigabit Ethernet |
| Downlinks total 10/100/1000 ports | 24 |
| Power dedicated to PoE | 382W |
| Number of ports that support PoE | 24 |
| Power | 100 to 240V 50 to 60 Hz, internal, universal |
| Fans | 2 |
| Unit dimensions in. (W x D x H) | 17.3 x 10.1 x 1.7 |
Specifications
| Specifications | CBS220-24FP-4G |
| Forwarding rate in millions | 41.66 mpps |
| of packets per second | |
| Switching capacity | 56.0 Gbps |
| Flash Memory | 64 MB |
| CPU Memory | 256 MB |
| Packet Buffer | 4.1 MB |
| MAC addresses | 8K |
| Jumbo frame | Up to 9,216 supported |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| Quality of Service (QoS) |
802.1p VLAN priority based, 8 hardware queues per port, priority queuing and Weighted Round-Robin (WRR)
|
| Loop detection |
Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP.
|
| Media-dependent interface |
Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
|
| Standards |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab
|
| 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE | |
| 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE | |
| 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE | |
| 802.3af, IEEE 802.3at, RFC 768, Request for Comments (RFC) 783, RFC 791, RFC 792, RFC | |
| 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, | |
| RFC 919, RFC 922, RFC 920, RFC 950, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, | |
| RFC 1157, RFC | |
| 1350, RFC 1533, RFC 1541, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC | |
| 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC | |
| 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC | |
| 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC | |
| 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC | |
| 1493, RFC 1215, RFC 3416 | |
| Operating Temperature | 0-50° C |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick |
Accessories
| Accessories | There is no additional accessories other than the power supply and the mounting kit which are included with the device package. |
| Package contents |
● Cisco Business 220 Series Smart Switch
● Power cord or adaptor ● Quick start guide ● Mounting kit |
