Call for Price
Firewall, rack-mountable, 1U, with NetMod Bay
Description

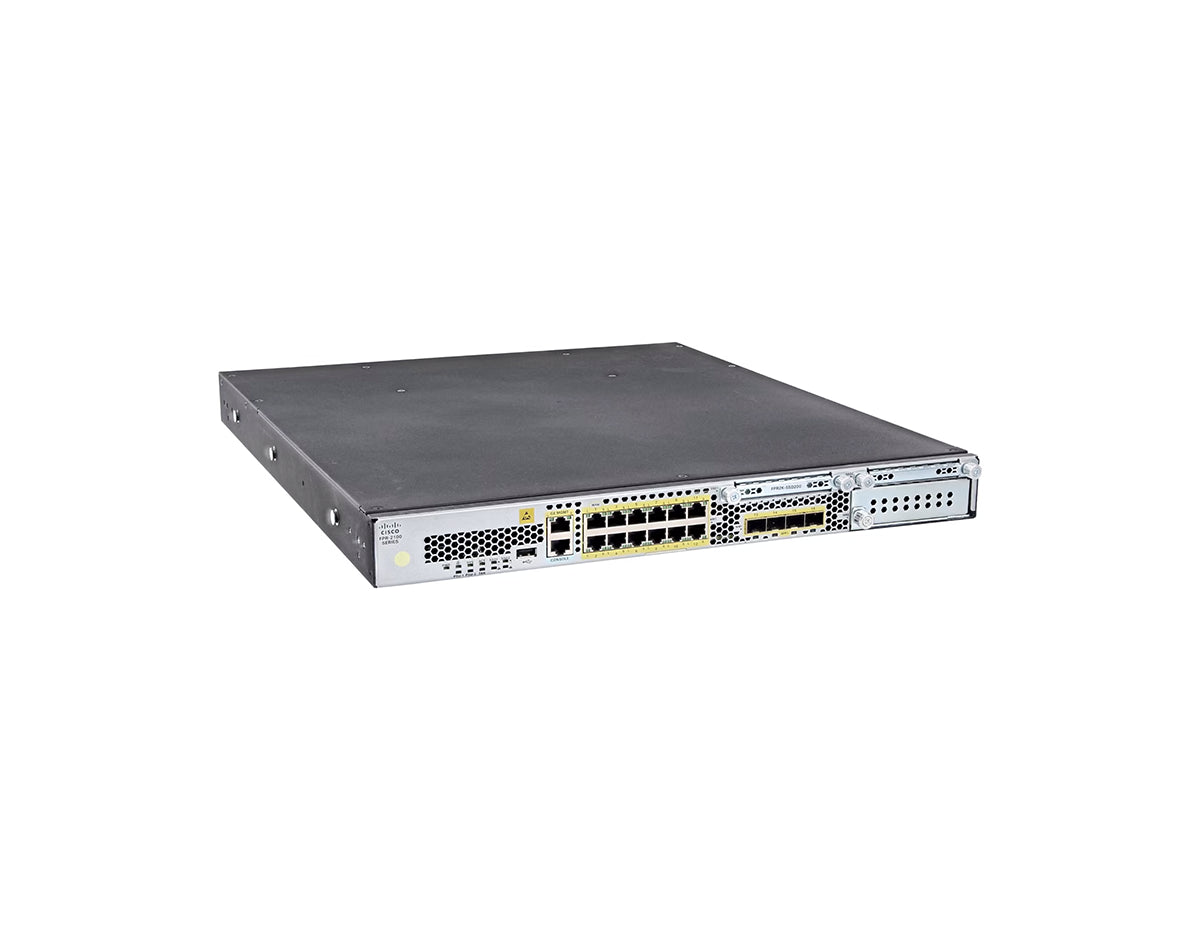

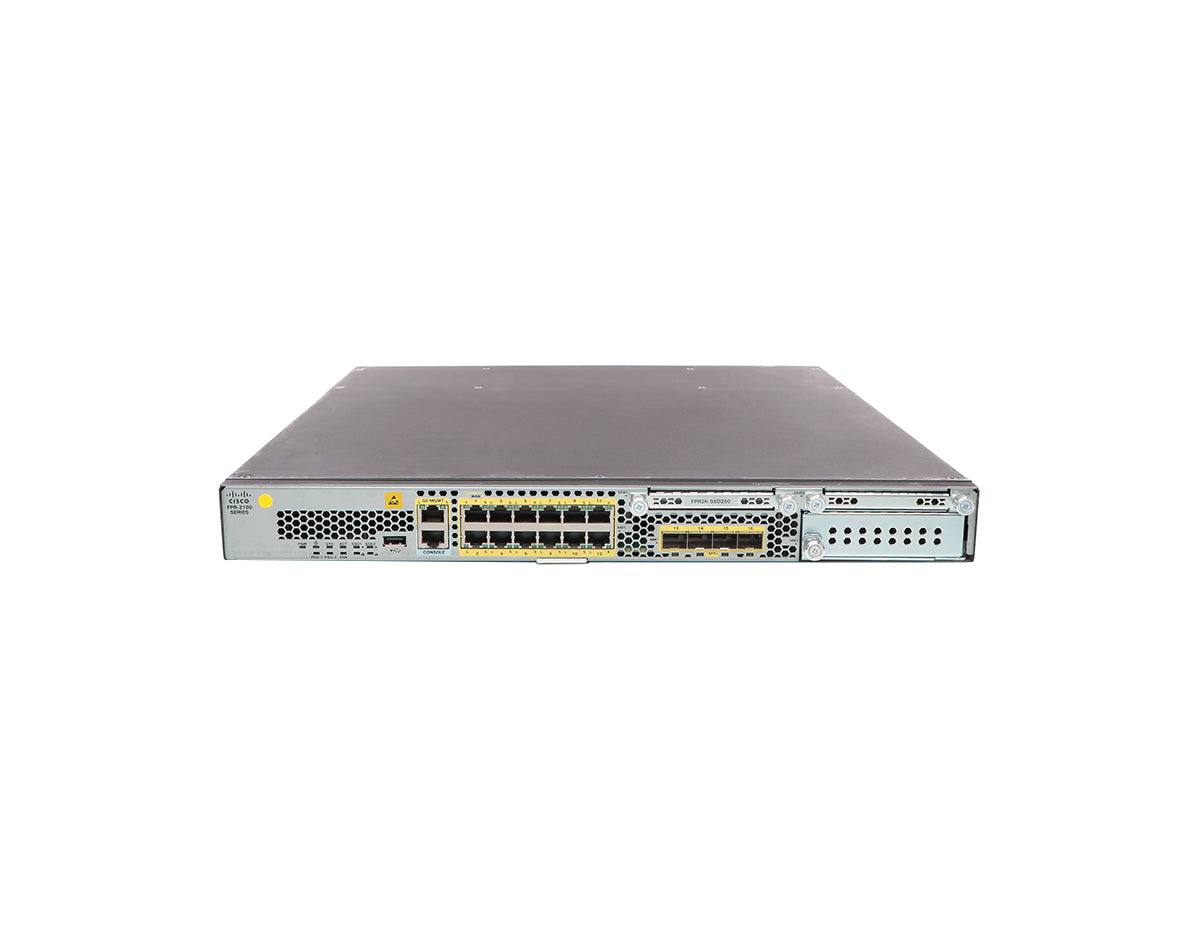

Cisco FPR2140-NGFW-K9 Firewall
The Cisco Firepower 2100 Series is a midrange Next-Generation Firewall (NGFW) that delivers consistent performance when threat inspection is activated. It provides firewall throughput capacity suitable for a variety of use cases, from the Internet edge to the data center. The Cisco Firepower 2140 NGFW Appliance, identified by the model number FPR2140-NGFW-K9, comes equipped with 12 Ethernet interfaces (RJ-45) that support 10M, 100M, and 1GBASE-T, 4 10 Gigabit Ethernet interfaces (SFP+), and 1 Network Module Bay.
Key Features:
- Throughput: FW + AVC 1024B : 8.5 Gbps
- Application Visibility and Control (AVC)
- Network Equipment Building Standards (NEBS)
Please check the FPR2140-NGFW-K9 datasheet from the tabs above for detailed specifications.
Properties
| Properties | FPR2140-NGFW-K9 |
| Product Family | Firepower 2100 Series |
| Product Type | Firewalls |
| Throughput: FW + AVC (1024B) | 9 Gbps |
| Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B) | 9 Gbps |
| Maximum concurrent sessions, with AVC | 3 million |
| Maximum new connections per second, with AVC | 57K |
| Transport Layer Security (TLS) | 1.4 Gbps |
| Throughput: IPS (1024B) | 9 Gbps |
| IPSec VPN throughput (1024B TCP w/Fastpath) | 3.2 Gbps |
| Maximum VPN Peers | 10000 |
| Cisco Device Manager (local management) | Yes |
| Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by the Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
| Cisco Security Intelligence | Standard, with IP, URL, and DNS threat intelligence |
| URL filtering: number of categories | More than 80 |
| URL filtering: number of URLs categorized | More than 280 million |
| Dimensions in. (H x W x D) | 1.73 x 16.90 x 19.76 |
| Form factor (rack units) | 1RU |
| Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ- 45), 4 x 10 Gigabit (SFP+) Ethernet interfaces |
| Integrated network management ports | 1 x 10M/100M/ 1GBASE-T Ethernet port (RJ-45) |
| Serial port | 1 x RJ-45 console |
| USB | 1 x USB 2.0 Type-A (500mA) |
| Storage | 1x 200 GB, 1x spare slot (for MSP) |
| Power supply configuration | Dual 400W AC. Single/dual 350W DC optional |
| Reduncany | 1+1 AC or DC with dual supplies |
| Fans | 1 hot-swappable fan module |
| Rack Mountable | Yes. Mount rails included (4-post EIA- 310-D rack) |
Specifications
| Specifications | FPR2140-NGFW-K9 |
| Stateful inspection firewall throughput | 20 Gbps |
| Stateful inspection firewall throughput (multiprotocol) | 10 Gbps |
| Concurrent firewall connections | 3 million |
| Firewall latency (UDP 64B microseconds) | – |
| New connections per second | 75000 |
| IPsec VPN throughput (450B UDP L2L test) | 2 Gbps |
| Maximum VPN Peers | 10000 |
| Operating Temperature | 32 to 104°F (0 to 40°C) or NEBS operation |
| Regulatory compliance | Products comply with CE markings per directives 2004/108/EC and 2006/108/EC |
| Safety | — UL 60950-1 — CAN/CSA-C22.2 No. 60950-1 — EN 60950-1 — IEC 60950-1 — AS/NZS 60950-1 — GB4943 |
| EMC: emissions | — 47CFR Part 15 (CFR 47) Class A (FCC Class A) — AS/NZS CISPR22 Class A — CISPR22 CLASS A — EN55022 Class A — ICES003 Class A — VCCI Class A — EN61000-3-2 — EN61000-3-3 — KN22 Class A — CNS13438 Class A — EN300386 — TCVN7189 |
| EMC: immunity | — EN55024 — CISPR24 — EN300386 — KN24 — TVCN 7317 — EN-61000-4-2, EN-61000-4-3, EN-61000-4-4, EN-61000-4-5, EN-61000-4-6, EN-61000-4-8, EN61000-4-11 |
