Call for Price
Catalyst IE3400 Heavy Duty, 16 x GE M12 interfaces, IP67, with Network Essentials license
Description
[specifications]
| Specifications | IE-3400H-16T-E |
| Forwarding rate | Line rate for all ports for all packet sizes |
| Number of queues | 8 |
| Unicast MAC addresses | 8000 |
| IGMP multicast groups | 1000 |
| No. of Vlans | 256 |
| IPv4 Indirect routes | 2000 |
| IPv6 Indirect routes | 512 |
| Spanning Tree Protocol instances | 128 |
| Access Control Entries (PACLs) | 3024 |
| DRAM | 4 GB |
| Flash (user accessible) | 1.5 GB |
| SD card capacity2 | 4 GB |
| Jumbo Frames | 2000 bytes |
| MTBF | 489,458 |
| Operating temperature | -40°C to +85°C |
| Industry standards | EN 61000-6-1 Immunity standards for light industrial ENV EN 61000-6-2 Immunity standards for industrial ENV EN 61000-6-4- Emission standard industrial ENV EN 61326-1 Industrial control ODVA Industrial Ethernet/IP PROFINET certification AREMA C and S section 11, 19 |
| IEEE standards | IEEE 802.1D MAC Bridges, STP IEEE 802.1p Layer 2 COS prioritization IEEE 802.1q VLAN IEEE 802.1s MSTP IEEE 802.1w RSTP IEEE 802.1X Port Access Authentication IEEE 802.1AB LLDP IEEE 802.3ad Link Aggregation (LACP) “IEEE 1588v2 PTP IEEE 802.3x full duplex on 10BASE-T IEEE 802.3 10BASE-T specification IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification” |
| PWR-IE160W-67-DC= | IP67-rated PoE DC-DC power supply, Input:18V-60V Output: 54V, 3.1A max 160W |
[/accesories]

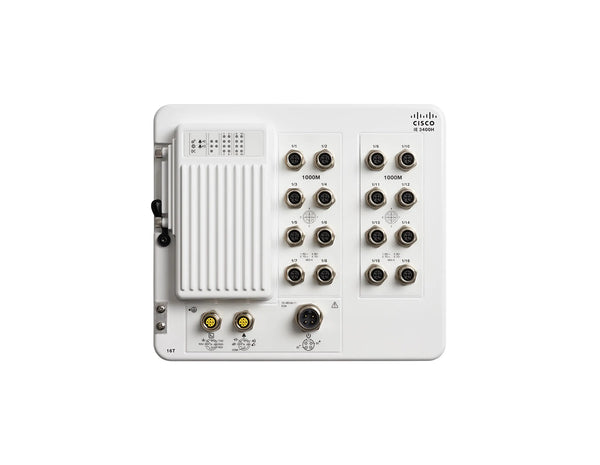

Cisco IE-3400H-16T-E Industrial Ethernet Switch
The Cisco IE-3400H-16T-E is a rugged industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh environments. This switch features 16 Gigabit Ethernet ports and advanced Layer 2 and Layer 3 management capabilities, making it an ideal solution for connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-3400H-16T-E is engineered to operate under extreme conditions, ensuring continuous operation while offering robust network security and traffic management features.
Key Features:
- 16 x Gigabit Ethernet Ports: Delivers reliable and high-speed data connectivity for a wide range of industrial devices, ensuring stable network communication.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it suitable for challenging industrial environments.
- Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
- High-Availability Design: Supports redundancy features to ensure continuous network operation in mission-critical applications.
- Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.
Technical Overview:
- Recommended for: Harsh industrial environments requiring robust Ethernet connectivity with advanced management and high-availability features.
- Ports: 16 x Gigabit Ethernet ports.
- Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-3400H-16T-E datasheet.
