Expansion moduleSFP (mini-GBIC) x 8for Catalyst IE3300 Rugged Series
Description

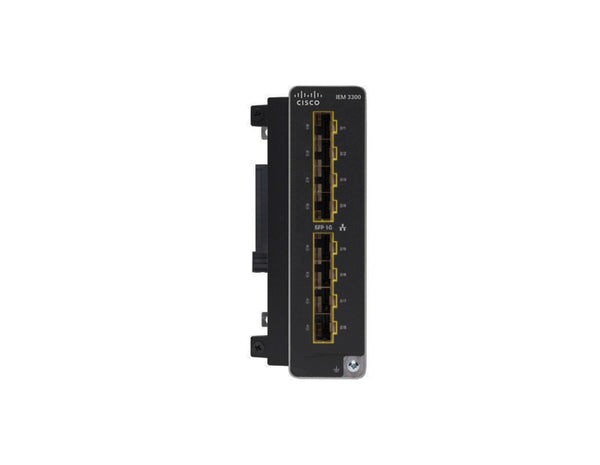

Cisco IEM-3300-8S Expansion Module
The Cisco Catalyst IE3300 Rugged Series, ideal for harsh industrial environments, is versatile for uses like outdoor enterprise areas and offers secure access for high-speed industrial applications. The Cisco IEM-3300-8S= expansion module delivers 8 GE SFP ports, forming a total of 18 system ports.
Key Features:
- Adaptability to harsh industrial environments
- 8 x 100/1000 SFP ports
- Fanless
The tabs contain the Cisco IEM-3300-8S datasheet with all the specifics you need.
Properties
| Properties | Cisco IEM-3300-8S= |
| Description | Catalyst IE3300 with 8 GE SFP ports, Expansion Module |
| Product Family | Industrial Ethernet 3300 |
| Product Type | Ethernet Switch Expansion Module |
| Switches | |
| Total ports on expansion module | 8 |
| Copper (RJ45) 10/100/1000Mbps |
– |
| SFP 100/1000Mbps |
8 |
| Copper (RJ45) 1GE/2.5G (with up to 802.3bt type 4 PoE) |
– |
| Total system ports (including expansion module) | 18 |
| PoE / PoE (+) budget | N/A |
| Dimensions (HxWxD) Inches | 6 in. X 2.6 in. X 5.3 in. 15.2 cm. x 6.6 cm. x 13.5 cm |
| Weight | 2.0 lbs (0.91 kg) |
| Mounting | DIN Rail |
Specifications
| Specifications | IE-3300-8S= |
| Power Consumption | 19W (Power consumption for non PoE supported model is measured at 12V and for the PoE supported model is measured at 54V.) |
| Operating Temperature | -40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -34°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours) |
| Storage Temperature | -40 C to +85 C |
| Operating Altitude | Up to 15,000 feet |
| Storage Altitude | 15,000 feet |
| Mean Time Between Failures (MTBF) | 6,810,960 |
| Industrial Automation Control System |
IEC 62443-4-1 IEC 62443-4-2 |
| Electromagnetic emissions | FCC 47 CFR Part 15 subpart B Class A EN 55032/CISPR 32 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A ICES 003 Class A CNS 13438 Class A KN 32 Class A EN 300 386 |
| Electromagnetic immunity | CISPR 24 EN 55024 KN 35 EN 61000-4-2 Electro Static Discharge (air 15kV, contact 8kV) EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP) EN 61000-4-4 Electromagnetic Fast Transients (4kV) EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP) EN 61000-4-6 Conducted RF (10Vrms UTP) EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-16 Conducted CM Disturbances (30V, Cont/300V, 1 sec) EN 61000-4-17 Ripple Immunity DC Power (10%) EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz) EN-61000-4-29 DC Voltage Dips and interruptions |
| Industry standards | EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity EN 61326-1 Measurement, Control and Laboratory Equipment IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking EN50121-4 Railway Signaling and Telecommunications Apparatus EN50155- Railway applications – Rolling stock ODVA Industrial EtherNet/IP NEMA TS 2-2016 IP30 |
| Marine I | DNC Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10 |
| Safety standards and certifications |
Information technology equipment: UL/CSA 60950-1, IEC 60950-1 CB with all country deviations UL/CSA 62368-1, IEC 62368-1 CB with all country deviations Industrial floor (control equipment): UL/CSA 61010-2-201 CB report and certificate to IEC/EN 61010-2-201 Hazardous locations: UL121201 (Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC) EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) Cabinet enclosure required |
| Humidity | Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30 |
| Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 3ms, half sine) IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal) MIL-STD-810, Method 514.4 IEC 60068-2-6 (vibration-sinusiodal, 5Hz-150Hz) |
| Corrosion | IEC 60068-2-52 (salt fog) IEC 60068-2-60 (flowing mixed gas) |
Accessories
| Accessories and License Upgrade PIDs | |
| STK-RACK-DINRAIL | 19 in. DIN Rail mount kit |
| IE-3300 Series Power Supplies | |
| PWR-IE50W-AC | 50W AC Power Supply |
| PWR-IE50W-AC-IEC= | 50W AC-IEC Power Supply |
| PWR-IE50W-AC-L | 50W AC-L Power Supply |
| PWR-IE65W-PC-AC | 65W PC-AC Power Supply |
| PWR-IE65W-PC-DC | 65W PC-DC Power Supply |
| PWR-IE170W-PC- AC | 170W PC-AC Power Supply |
| PWR-IE170W-PC- DC | 170W PC-DC Power Supply |
| PWR-IE240W-PCAC-L | 240W PCAC-L Power Supply |
| PWR-IE480W-PCAC-L | 480W PCAC-L Power Supply |
| *Expansion modules require an additional power supply separate from the main module’s power supply. | |
