Expansion module8 x Gigabit Ethernet (PoE+)for Catalyst IE3400 Rugged Series
Description

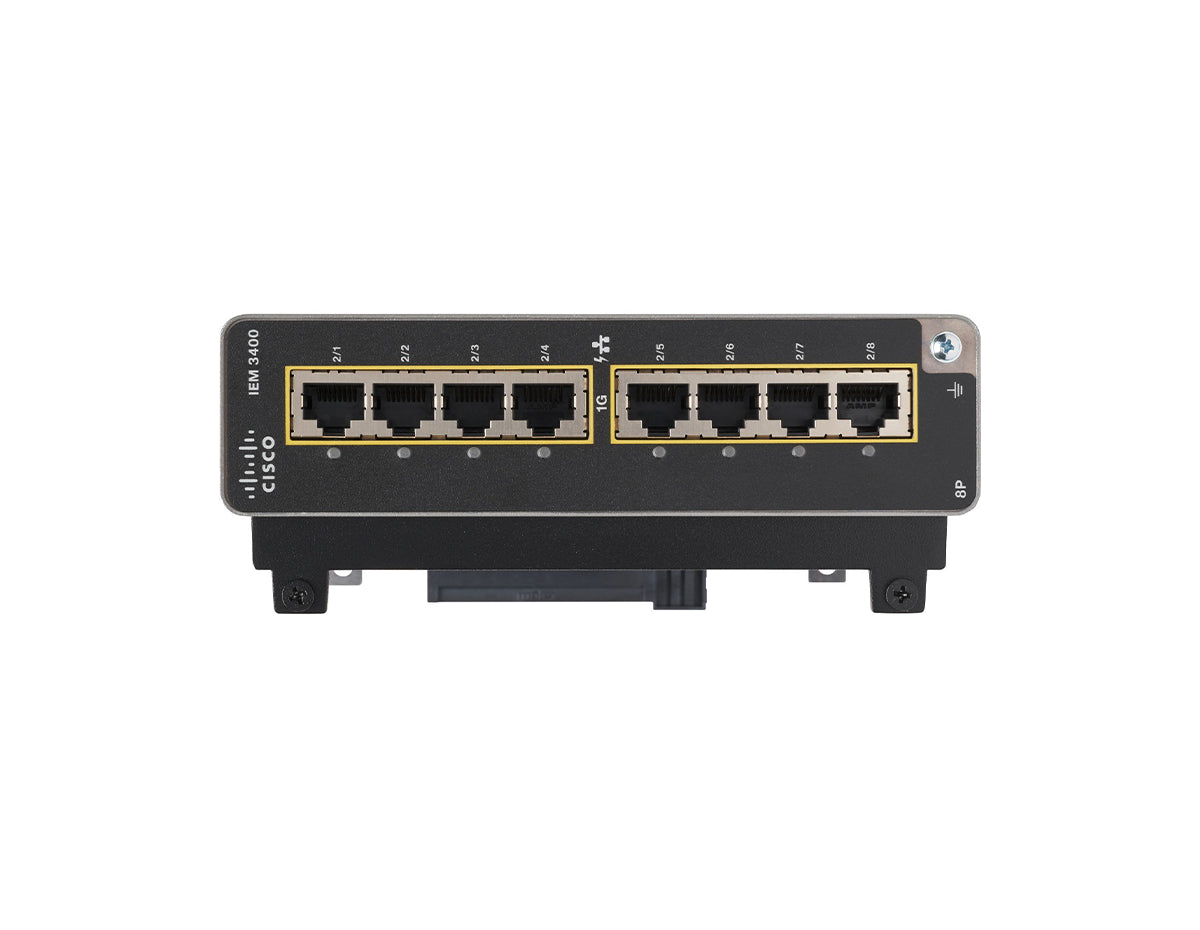

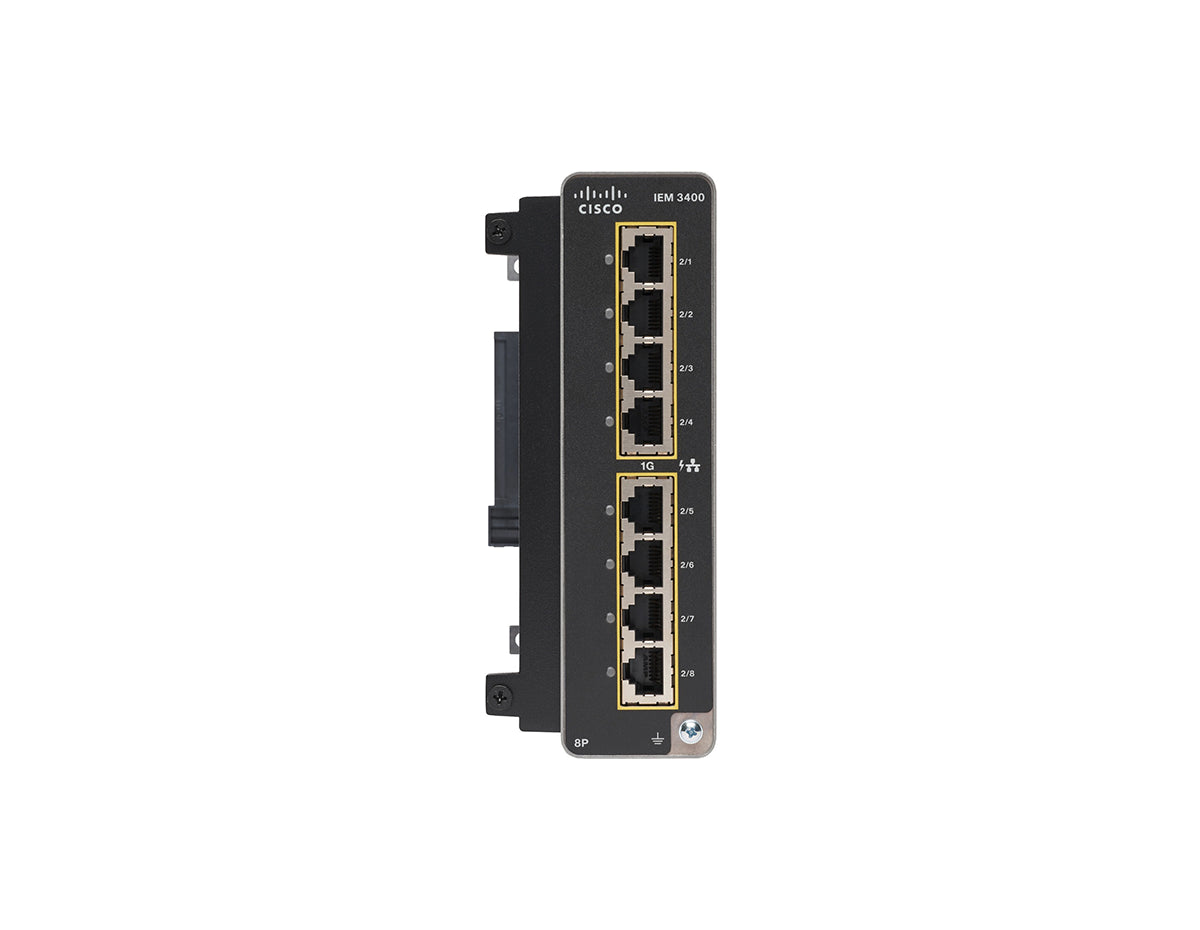

Cisco IEM-3400-8P Expansion Module
The expansion modules of the Cisco Catalyst IE3400 Rugged Series are built for use in harsh industrial environments, such as manufacturing, energy, transportation, mining, smart cities, and oil and gas. These modules are fanless, designed for convection-cooling, and hardened to withstand vibration, shock, surge, and electrical noise immunity. With the Cisco IEM-3400-8P=, switches can provide a total PoE budget of 480W.
Key Features:
- 8 GE Copper ports
- Cisco IOS XE, a next-gen operating system
- User-Friendly GUI (WebUI)
The tabs contain the Cisco IEM-3400-8P= datasheet with all the specifics you need.
Properties
| Properties | Cisco IEM-3400-8P |
| Description | Catalyst IE3400 with 8 GE Copper PoE/PoE+, Expansion Module |
| Product Family | Industrial Ethernet 3400 |
| Product Type | Expansion Module |
| Ports | |
| Total ports on expansion module | 8 |
| PoE/PoE+ | 8 |
| Total system ports (including expansion module) | 18 |
| Power Consumption | 20W |
| Rated MTBF (hours) | 1,802,010 |
| Dimensions (HxWxD) Inches | 6 in. X 2.6 in. X 5.3 in. 15.2 cm. x 6.6 cm. x 13.5cm |
| Weight | 2.0 lbs (0.9 Kg) |
| Mounting | DIN Rail |
Specifications
| Specifications | IEM-3400-8P |
| Industrial Automation Control System |
IEC 62443-4-1 IEC 62443-4-2 |
| Electromagnetic emissions | FCC 47 CFR Part 15 subpart B Class A EN 55032/CISPR 32 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A ICES 003 Class A CNS 13438 Class A KN 32 Class A EN 300 386 |
| Electromagnetic immunity | CISPR 24 EN 55024 KN 35 EN 61000-4-2 Electro Static Discharge (air 15kV, contact 8kV) EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP) EN 61000-4-4 Electromagnetic Fast Transients (4kV) EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP) EN 61000-4-6 Conducted RF (10Vrms UTP) EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-16 Conducted CM Disturbances (30V, Cont/300V, 1 sec) EN 61000-4-17 Ripple Immunity DC Power (10%) EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz) EN-61000-4-29 DC Voltage Dips and interruptions |
| Industry standards | EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity EN 61326-1 Measurement, Control and Laboratory Equipment IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking EN50121-4 Railway Signaling and Telecommunications Apparatus EN50155- Railway applications – Rolling stock ODVA Industrial EtherNet/IP NEMA TS 2-2016 IP30 |
| Marine I | DNC Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10 |
| Safety standards and certifications |
Information technology equipment: UL/CSA 60950-1, IEC 60950-1 CB with all country deviations UL/CSA 62368-1, IEC 62368-1 CB with all country deviations Industrial floor (control equipment): UL/CSA 61010-2-201 CB report and certificate to IEC/EN 61010-2-201 Hazardous locations: UL121201 (Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC) EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) Cabinet enclosure required |
| Humidity | Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30 |
| Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 3ms, half sine) IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal) MIL-STD-810, Method 514.4 IEC 60068-2-6 (vibration-sinusiodal, 5Hz-150Hz) |
| Corrosion | IEC 60068-2-52 (salt fog) IEC 60068-2-60 (flowing mixed gas) |
