Cisco IR1101-K9 Router The Cisco IR1101-K9 is a specialized 6-Port Industrial Integrated Services Router designed for industrial deployment that demands high levels of reliability, stability, and uninterrupted connectivity. Specifically engineered…
Description

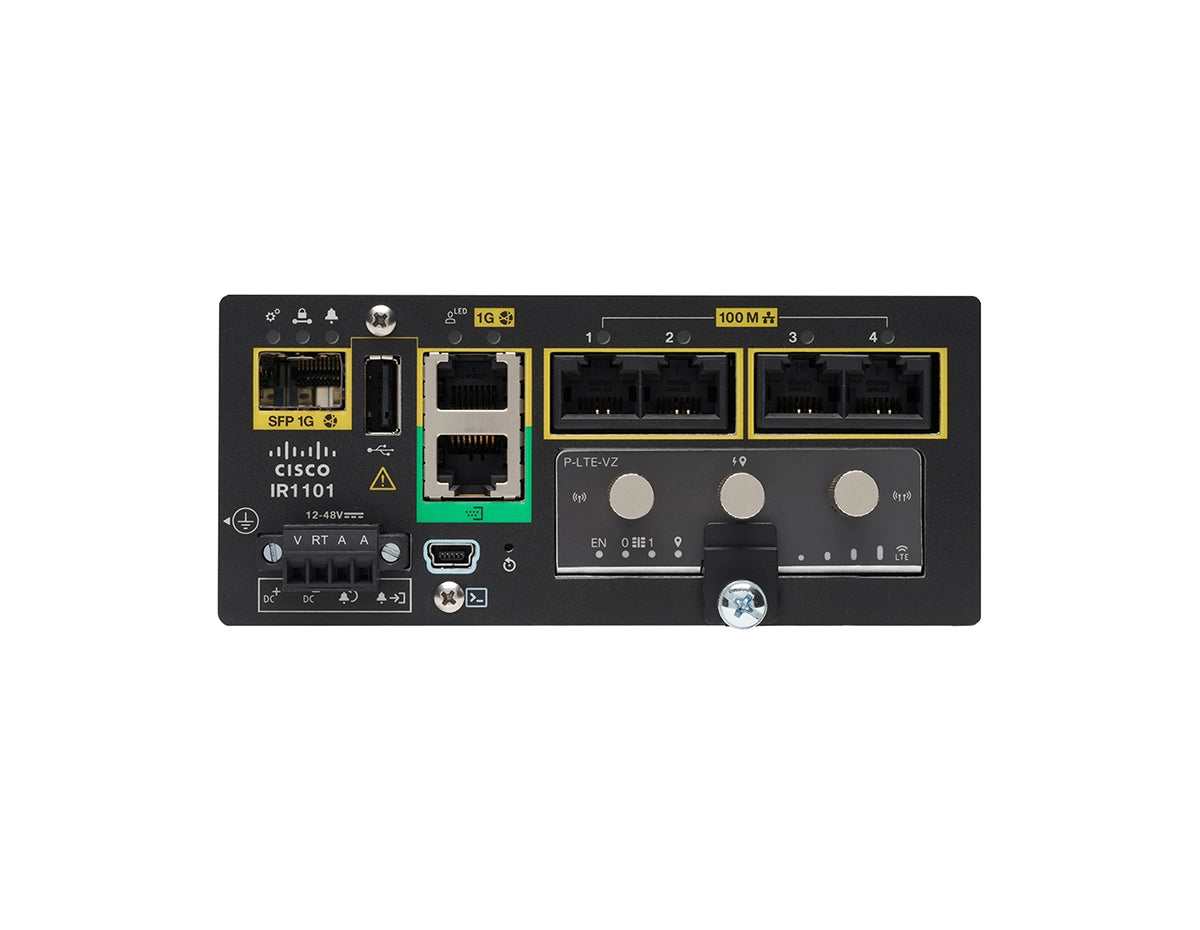

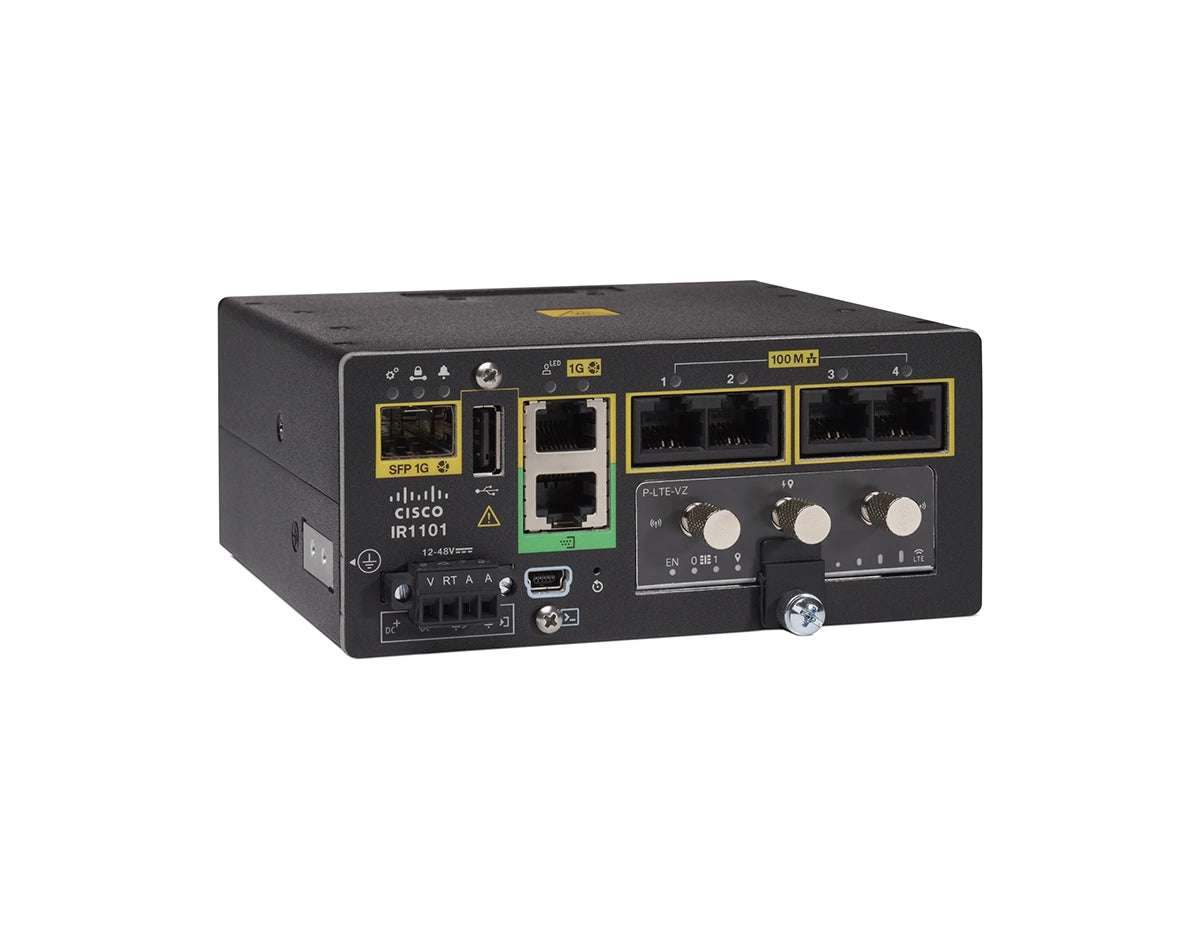

Cisco IR1101-K9 Router
The Cisco IR1101-K9 is a specialized 6-Port Industrial Integrated Services Router designed for industrial deployment that demands high levels of reliability, stability, and uninterrupted connectivity. Specifically engineered to cater to the distinct networking requirements of sectors such as manufacturing, utilities, and transportation, this router is constructed to endure the rigors of industrial environments. Its robust industrial-grade construction enables it to function effectively in challenging conditions characterized by extreme temperatures, humidity, and vibrations. Noteworthy features of this product include secure and dependable data transmission facilitated by functionalities such as VPN support, firewall capabilities, and authentication protocols.
Quick Specs:
- 4GB RAM
- IP30 standards
- Form Factor: Wall Mountable
- Total Number of Ports: 5
Please see the related tabs for the IR1101-K9 datasheet and compatible accessories.
Properties
| Properties | Cisco IR1101-K9 Router |
| Description | The Cisco IR1101-K9 Router is a rugged networking solution for industrial and outdoor use, featuring advanced security, LTE/Wi-Fi connectivity, dual SIM slots, and support for various protocols. It is easy to deploy and manage and supports PoE and optional cellular/GPS modules. |
| Product Family | Cisco Catalyst IR1101 Rugged Series Router |
| Product Type | Router |
| Features | • Compact and rugged design • Advanced security features • Integrated LTE and Wi-Fi • Dual SIM slots • Wide operating temperature range • Support for IPv4, IPv6, and DHCP • Easy deployment with Cisco IOS XE Software • DIN rail and wall-mount options • Power over Ethernet (PoE) support • Optional cellular and GPS modules |
Specifications
| Specifications | Cisco Catalyst IR1101 Rugged Series Router |
| Memory | |
| Default and maximum DRAM | 4 GB |
| Default and maximum Flash memory | 8 GB (physical) / 4 GB (usable) |
| Ingress protection rating | IP30 |
| Physical characteristics | |
| Physical dimensions (H x W x D) Chassis Expansion Module (IRM-1100-SP or IRM-1100-SPMI) Expansion Module (IRM-1100- 4A2T) |
2.36 in. x 5.22 in. x 4.92 in. (60 x 132.5 x 124.9 mm) 1.3 in. x 5.2 in. x 4.9 in. (33 x 132 x 124 mm) 0.9 in. x 5.2 in. x 4.9 in. (23 x 132 x 124 mm) |
| Weight Chassis Expansion Module ● IRM-1100-SPMI: ● IRM-1100-SP: ● IRM-1100-4A2T: |
2.25 lbs (1.02 kg) 1.65 lbs (0.75 kg) 1.45 lbs (0.66 kg) 0.94 lbs (0.43 kg) |
| Mounting options | Panel, wall, and din rail (vertical and horizontal) mount |
| Power specifications | Nominal voltage: +/-12V to +/-48V DC Minimum and maximum input voltage: 9.6-60V DC Maximum and minimum input current: 1.24A (9.6V DC) and 0.26A (60V DC) |
| Power consumption | At idle: 6.6W Typical: 9.8W Maximum: 12W Additional 10W (typical) with expansion module and 2nd cellular |
| Interfaces on the base platform | |
| Console | Mini type-B USB |
| WAN interfaces | ● Combo 10/100/1000 Gigabit Ethernet port (RJ45 and SFP) on the base platform ● An additional 10/100/1000 Gigabit Ethernet SFP on the expansion module. Refer to Table 8 for supported SFPs ● LTE: Modular with options for single and dual active LTE and LTE-Advanced |
| LAN interfaces | ● Four 10/100BASE-T Fast Ethernet ports |
| Input and output | ● ALARM input port |
| Interfaces on Serial and Ethernet Expansion Module | |
| Serial Interfaces | ● 4 x Isolated asynchronous serial ports (RS232/RS485/RS422)(DCE) |
| Ethernet Interfaces | ● 2 x GE RJ45 LAN ports |
| LEDs | ● System OK ● Link for Ethernet WAN ports ● VPN ● Tricolor user-configurable LED ● ALARM |
| Serial interface | ● Isolated RS-232 RJ45 DTE port ● Support for asynchronous mode with speeds up to 115,200 baud |
| Serial protocols | SCADA, DNP3, T101-104, Raw Socket TCP, and UDP |
| Environmental characteristics | |
| Environmental operating temperature range |
–40 to 140°F (–40 to 60°C) in a sealed NEMA cabinet with no airflow –40 to 158°F (–40 to 70°C) in a vented cabinet with 40 Linear Feet per Minute (LFM) of air –40 to 167°F (–40 to 75°C) in a forced air enclosure with 200 LFM of air Type tested at 85°C for 16 hours |
| Operating altitude | 40°C up to 13,800 ft (operating) per IEC 68-2-41 |
| Non-operating shock and vibration | ● 50-60G (3.76 m/s minimum) ● 3-500Hz at 1.12 GRMS (BP at 10 and 100 Hz) |
| Standard safety certifications | ● UL 60950-1, 2nd edition ● CAN/CSA C22.2 No. 60950-1, 2nd edition ● EN 60950-1, 2nd edition ● CB to IEC 60950-1, 2nd edition with all group differences and national deviations |
| Hazardous locations standards | ● ANSI/ISA 12.12.01 (Class 1, Div 2 A-D) ● CSA 213 (Class 1, Div 2 A-D) ● IEC 60079-0 and -15 IECEx test report (Class I, Zone 2, gas groups IIC) ● EN 60079-0 and -15 ATEX certification (Class I, Zone 2, gas groups IIC) |
| Industry standards | Public Safety: ● FirstNet Ready™ ● Verizon Frontline Smart Grid: ● IEC 61850-3 ● IEEE 1613 Security: ● FIPS 140-2 ● Common Criteria Department of Defense ● DoDIN APL IPv6 ● USGv6 |
| EMC emissions CLASS A | ● 47 CFR Part 15 B ● EN 55032:2015 ● CISPR 32 Edition 2 ● CNS13438: 2006 ● EN 300 386 V1.6.1 ● ICES-003 Issue 6: 2016 ● KN 32: 2015 ● TCVN 7189: 2009 ● V-2/2015.04 ● V-3/2015.04 ● AS/NZ CISPR32 |
| EMC immunity | ● EN 61000-4-2, 3, 4, 5, 6, 8, 9, 16, 17, 18, and 29 ● CISPR24: 2010 + A1: 2015 ● EN 300 386 V1.6.1 ● EN 55024: 2010 + A1: 2015 ● EN 55035:2017 ● KN35: 2015 ● TCVN 7317:2003 ● QCVN 18:2014 |
Accessories
| Optional Accessories | |
| Cellular module | |
| P-5GS6-GL(=) | 5G Sub 6 GHZ module for North America, Europe and Asia Pacific |
| P-LTEAP18-GL(=) | Category 18 LTE module for North America, Europe and Asia Pacific |
| P-LTEA-EA(=) | Category 6 LTE module for North America, Europe and Middle East |
| P-LTEA-LA(=) | Category 6 LTE module for Asia Pacific and Latin America |
| P-LTE-MNA(=) | Category 4 LTE module for AT&T, FirstNet™ Ready and Verizon, US |
| P-LTE-US(=) | Category 4 LTE module for AT&T, U.S |
| P-LTE-VZ(=) | Category 4 LTE module for Verizon, U.S |
| P-LTE-GB(=) | Category 4 LTE module for Europe |
| P-LTE-IN(=) | Category 4 LTE module for India |
| P-LTE-JN(=) | Category 4 LTE module for Japan |
| LoRaWAN modules | |
| P-LPWA-900 | Cisco Interface Module for LoRaWAN operating on the frequency subset of 902 – 928 MHz ISM band, applicable to LoRaWAN regional profile for Americas, Asia, and Pacific |
| P-LPWA-800 | Cisco Interface Module for LoRaWAN operating on the frequency subset of 863 – 870 MHz ISM band, applicable to LoRaWAN regional profile for Europe, Middle East, Africa, and India |
| Mounting | |
| IR1101-DINRAIL(=) | Din-rail clip for vertical or horizontal mounting |
| IR1101-WALLMNT(=) | Wall-mount kit |
| IRM-1100-DINRAIL(=) | Din-rail kit for Expansion Module |
| Power supply | |
| PWR-IE50W-AC-L= | AC power adapter for 110/220V AC and 88-300V DC input (temperature profile: -40C to 60C) |
| PWR-IE50W-AC= | Expansion power module: Input AC 100-240V/1.25A or DC 125-250V/1A, Output DC 24V/2.1A, DIN-Rail Mount. |
| PWR-IE50W-AC-IEC= | Power Module supporting input AC 100-240V/1.25A 50-60Hz, Output DC 24V/2.1A, IEC Plug, DIN-Rail Mount |
| Antenna and lightening arrestors | |
| Notes | Antennas and other accessories are not included automatically with the IR1101 Network Advantage license required for use of LoRaWAN modules Refer to Cisco LoRaWAN Ordering Guide for deployment options |
