Call for Price
SwitchL3managed2 x 10/100/1000 + 2 x Gigabit SFPDIN rail mountableDC power
Description

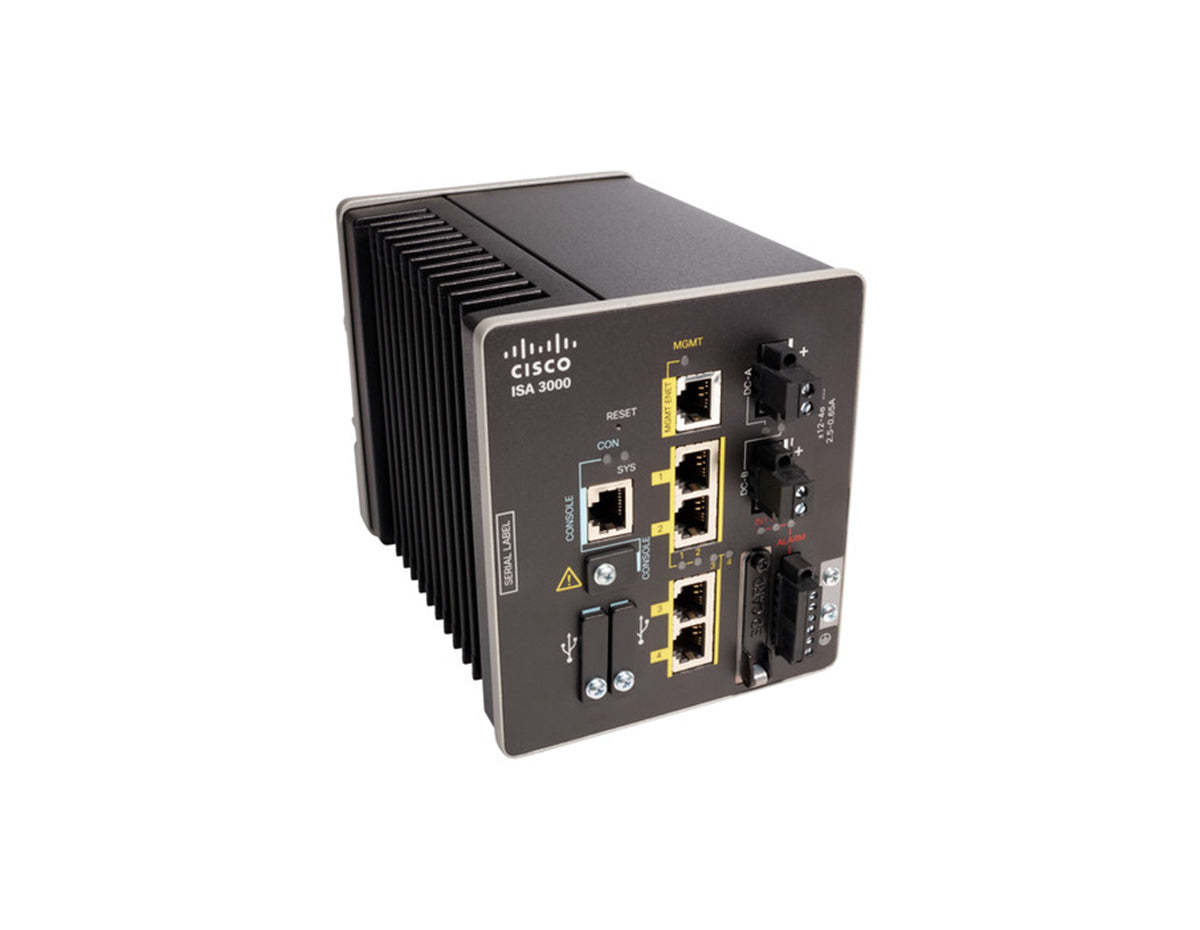

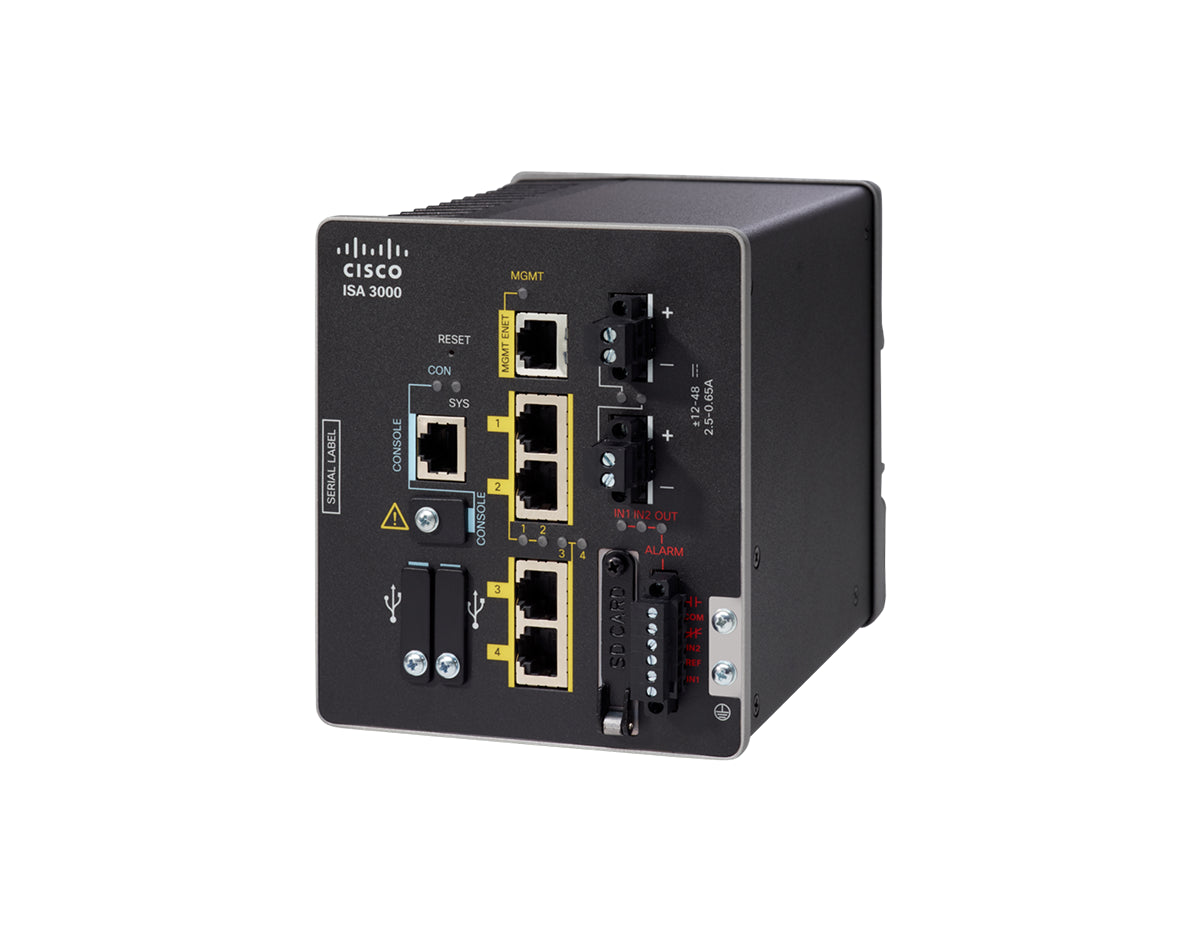

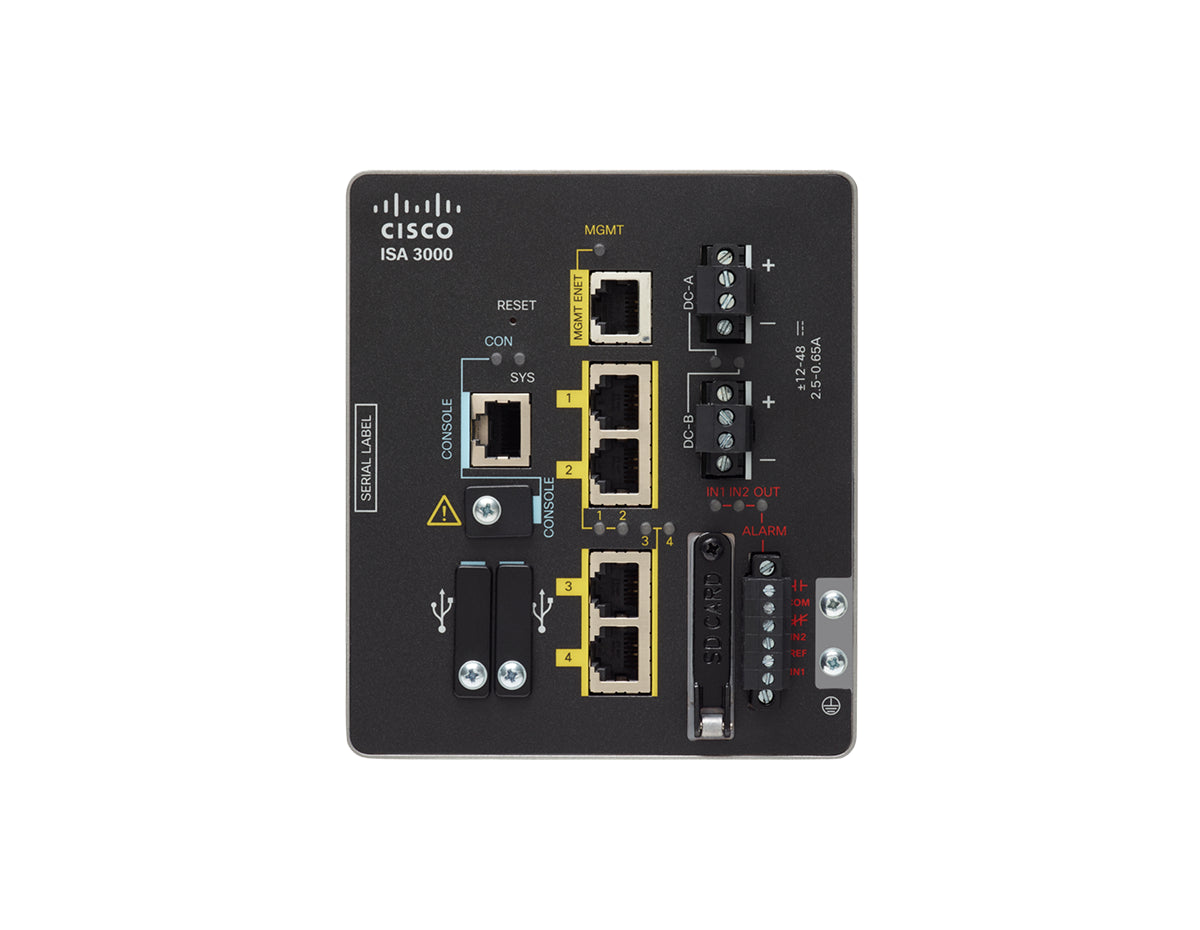

Cisco ISA-3000-2C2F-K9 Industrial Security Appliance
The Cisco Secure Firewall ISA3000 is an industrial firewall with OT-targeted protection. It is Ideal for segmenting industrial networks, protecting OT assets, and ensuring compliance with industrial standards and regulations. The ISA-3000-2C2F-K9 delivers 2 Copper 10/100/1000 and 2 SFP fiber ports.
Key Features:
- Cisco Firepower Management Center
- DMZ firewall
- Layer 3 routing
The tabs contain the Cisco ISA-3000-2C2F-K9 datasheet with all the specifics you need.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
| Properties | ISA-3000-2C2F-K9 |
| Description | The Cisco ISA-3000-2C2F-K9 is an industrial security appliance safeguarding critical infrastructure in harsh environments. It features 2 copper Gigabit Ethernet (GbE) ports and 2 copper Fast Ethernet (FE) ports and provides advanced security capabilities, including firewall and intrusion prevention. |
| Product Family | ISA3000 |
| Product Type | Firewall |
| Copper 10/100/1000 (all bypass enabled) | 2 |
| SFP Fiber Ports | 2 |
| PoE (RJ-45) Port | No |
| Interface Provided |
1 x console (mini-USB), 1 x console RJ-45, 1 x management RJ-45, 2 x 1000Base-T RJ-45, 2 x 1000Base-X SFP
|
| Ports | 2 x 10/100/1000 + 2 x Gigabit SFP |
| Voltage | DC 12/24/48 V |
| Maximum Range | 9.6 Vdc to 60 Vdc |
| Power Consumption | 24 Watts |
| Form Factor | DIN Rail Mountable |
| Dimensions (HxWxD) Inches | 5.1″ x 4.4″ x 6.3″ |
| Features |
Flow control
Firewall protection IP-routing DHCP support NAT support BOOTP support ARP support DiffServ support IPv6 support Full duplex mode Surge protection Rapid Spanning Tree Protocol (RSTP) support Multiple Spanning Tree Protocol (MSTP) support Access Control List (ACL) support Quality of Service (QoS) Fanless LLDP support DHCP relay Link Aggregation Control Protocol (LACP) Static routing 802.1x authentication Precision Time Protocol (PTP) MACsec support Shock resistant Vibration proof VLAN Trunking Protocol (VTP) Internet Control Message Protocol (ICMP) |
Specifications
| Specifications | ISA-3000-2C2F-K9 |
| Processor | 4-core Intel Atom |
| DRAM | 8 GB |
| Flash Memory | 16 MB |
| Built-in Devices | 64 GB mSATA |
| Throughput: NGIPS (1024B) | 500 Mbps |
| Throughput: Firewall (FW) + Application Visibility and Control (AVC) (1024B) | 375 Mbps |
| Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B) | 350 Mbps |
| Maximum concurrent sessions, with AVC | 50 |
| Maximum new connections per second, with AVC | 2700 |
| IPsec VPN throughput (1024B TCP with Fastpath) |
50 Mbps |
| Maximum VPN peers | 25 |
| Application Visibility and Control (AVC) | Standard, supporting more than 4000 applications as well as geo locations, users, and websites |
| URL filtering | More than 80 categories More than 280 million URLs categorized |
| Defined interfaces | 200, 400 (with SecPlus license on ASA), 400 (FTD) |
| VLAN counts | 5, 100 (with SecPlus license on ASA), 100 (FTD) |
| IPv4 MACsec Access Control Entries (ACEs) | 1000 with default TCAM template |
| NAT |
Bidirectional, 128 unique subnet NAT entries, which can expand to tens of thousands of translated entries if designed properly
|
| Mean Time Between Failure (MTBF) | 376,58 |
| Clock synchronization | ● IEEE 1588 (hardware-enabled PTP) |
| Operating Temperature | -40C to +70C |
| IP | IP30 |
| Safety Certifications | Information technology equipment:
● UL/CSA 60950-1 ● UL 508 ● ANSI/ISA 12.12.01 (Class I, Div 2 A-D |
| EMI Emissions and Immunity Compliance | FCC 47 CFR Part 15 Class A EN 55022A Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 22 Class A ICES 003 Class A CNS13438 Class A KN22 EN55024 CISPR 24 AS/NZS CISPR 24 KN24 EN 61000-4-2 Electro Static Discharge EN 61000-4-3 Radiated RF EN 61000-4-4 Electromagnetic Fast Transients EN 61000-4-5 Surge EN 61000-4-6 Conducted RF EN 61000-4-8 Power Frequency Magnetic Field EN 61000-4-9 Pulse Magnetic Field EN 61000-4-18 Damped Oscillatory Wave EN-61000-4-29 DC Voltage Dips and Interruptions IEC/AS/NZS 62368.1 |
Accessories
| GLC-SX-MM-RGD= | 1000 BASE-SX Ruggedized |
| GLC-LX-SM-RGD= | 1000 BASE-LX/LH Ruggedized |
| GLC-FE-100FX-RGD= | 100 BASE-FX Ruggedized |
| GLC-FE-100LX-RGD= | 100 BASE-LX Ruggedized |
| PWR-IE50W-AC |
AC to DC 24V/2.1A DIN Rail power supply, input 100-240VAC/1.25A or 125-250VDC/1A, output 24VDC
|
| PWR-IE50W-AC-IEC |
AC to DC 24V/2.1A DIN Rail power supply, input 100-240VAC/1.25A 50-60Hz, output 24VDC/2.1A, IEC Plug
|
| Included Accessories | 1 GB SD card |
