Managed, Rack-mountable, 48 x 1G PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (370W), Layer 2
Description

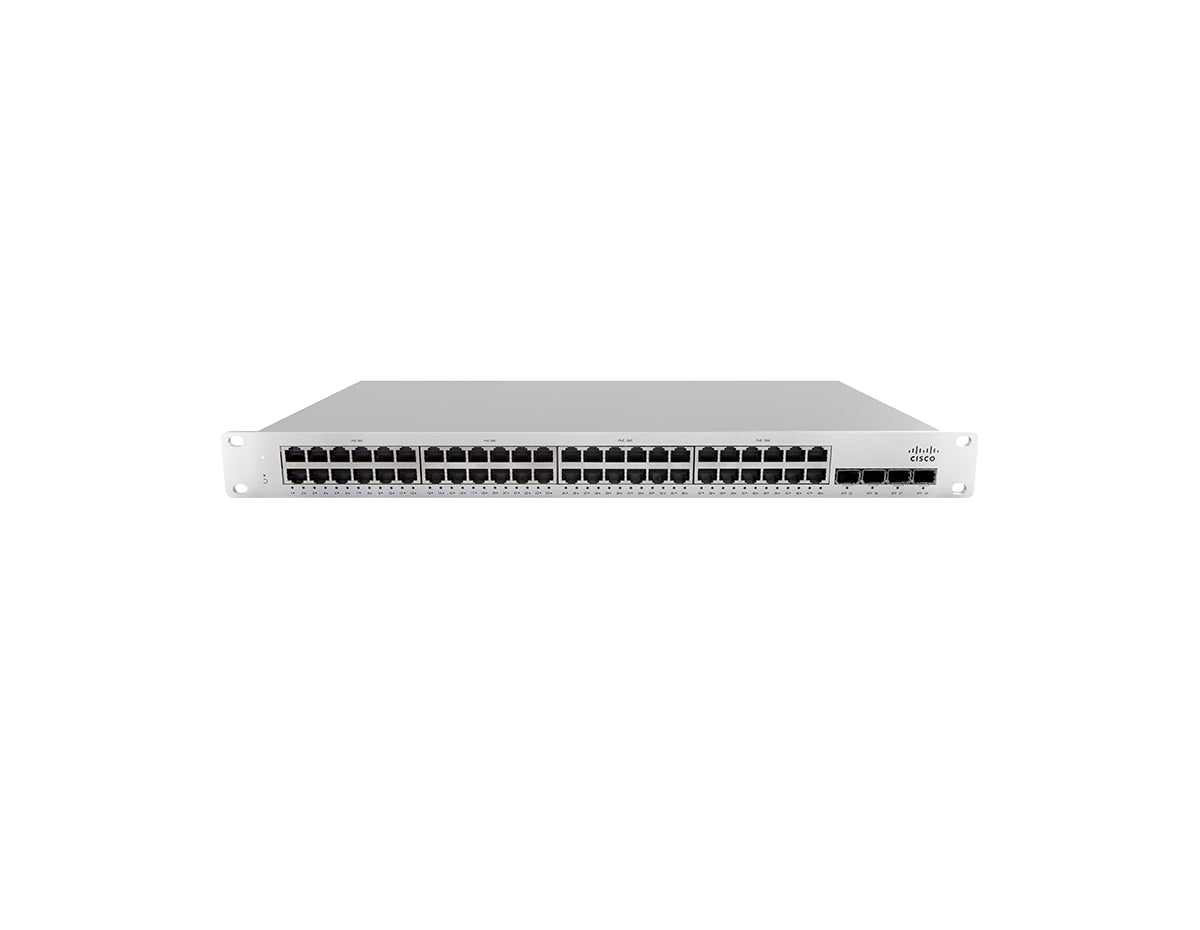

Cisco MS210-48LP-HW Switch
The Cisco MS210-48LP-HW is a cloud-managed, 48-port Gigabit Ethernet switch designed for small to medium-sized businesses seeking reliable and scalable networking. Equipped with 48 Gigabit Ethernet ports, including PoE+ support with a power budget of 370W, and 4 SFP uplink ports, this switch is ideal for powering devices such as IP phones, cameras, and wireless access points. The MS210-48LP-HW integrates seamlessly with Meraki’s cloud-based dashboard, enabling easy provisioning, monitoring, and management from anywhere.
Key Features:
- 48 x Gigabit Ethernet PoE+ Ports: Provides power and connectivity for devices like IP phones and cameras with a total PoE budget of 370W.
- 4 x Gigabit SFP Uplinks: Ensures high-speed uplinks for seamless network expansion.
- Cloud-Based Management: Simplifies network management with Meraki’s centralized dashboard, offering monitoring, configuration, and troubleshooting tools.
- Layer 2+ Capabilities: Supports VLANs, QoS, and Link Aggregation for enhanced traffic management and optimized network performance.
- Energy-Efficient Design: Complies with IEEE 802.3az standards for reduced power consumption during low-traffic periods.
Technical Overview:
- Recommended for: Small to medium-sized businesses, retail environments, and branch offices.
- Ports: 48 x 10/100/1000 Ethernet PoE+ ports, 4 x 1G SFP uplinks.
- PoE Power Budget: 370W.
- Switching Capacity: 104 Gbps.
- Forwarding Rate: 77.38 Mpps.
You can check the related tab for the MS210-48LP-HW datasheet.
Properties
| Product Name | MS210-48LP-HW |
| Description | Cisco Meraki MS210-48LP, a cloud-managed 48-port Gigabit Ethernet switch with 370W PoE+ power budget, designed for enterprise networks with stacking capabilities. |
| Switch Type | Cloud-managed Layer 2 switch with stacking |
| Total Ports | 48 x Gigabit Ethernet (PoE+) |
| PoE Power Budget | 370W (802.3af/at PoE+) |
| Uplink Ports | 4 x 1G SFP |
| Management | Cloud-based via Meraki dashboard |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 44.0 cm x 36.9 cm x 4.4 cm (17.3 in x 14.5 in x 1.7 in) |
| Weight | 5.8 kg (12.8 lb) |
| Mounting Options | Rack-mountable (1U), mounting brackets included |
| Power Supply | Internal power supply |
| Cooling | Two internal fans for active cooling |
| Usage | Ideal for mid-sized to large enterprise networks |
| Durability | Designed for continuous operation in demanding environments |
Specifications
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Latency | 0.9 microseconds for 64-byte packets |
| Certifications | CE, FCC, RoHS compliant |
| Environmental Safety | Complies with global environmental standards, low-halogen design |
| EMC Compliance | Meets international EMC standards for network equipment |
| Power Consumption | Maximum 450W (with PoE load) |
| Stacking Support | Supports physical and virtual stacking up to 8 switches |
| MTBF | 1,200,000 hours |
| Security Features | 802.1X authentication, MAC-based port security, DHCP snooping |
| Management Features | Cloud-based monitoring, configuration, and automated alerts |
| VLAN Support | Supports up to 4,094 VLANs |
| QoS | Layer 2 Quality of Service for traffic prioritization |
| Deployment | Optimized for enterprise, branch, and campus deployments |
| Monitoring | Real-time network monitoring and troubleshooting via Meraki dashboard |
| Firmware Compatibility | Automatic firmware updates and security patches via cloud |
