Call for Price
Power supplyRedundant (rack-mountable)1Ufor Cisco 28XX28XX V3PN38253825 V3PN; Catalyst 29XX
Description
The Cisco Redundant Power System 2300 (RPS 2300) increases availability for converged data, voice, and video networks. The system delivers power supply redundancy and resiliency for a variety of power requirements, including Power over Ethernet (PoE). It helps ensure uninterrupted operation and protection against device power supply failures by providing seamless failover for Cisco switches like the Cisco Catalyst 3750-E Series Switches and routers like the Integrated Services Routers.
The Cisco RPS 2300 supplies redundant power for up to two of six connected 48-port PoE devices in a convenient, 1-rack-unit form factor. When attached to Cisco Catalyst 3750-E or 3560-E Series Switches, the Cisco RPS 2300 offers additional intelligent management capabilities.
Properties

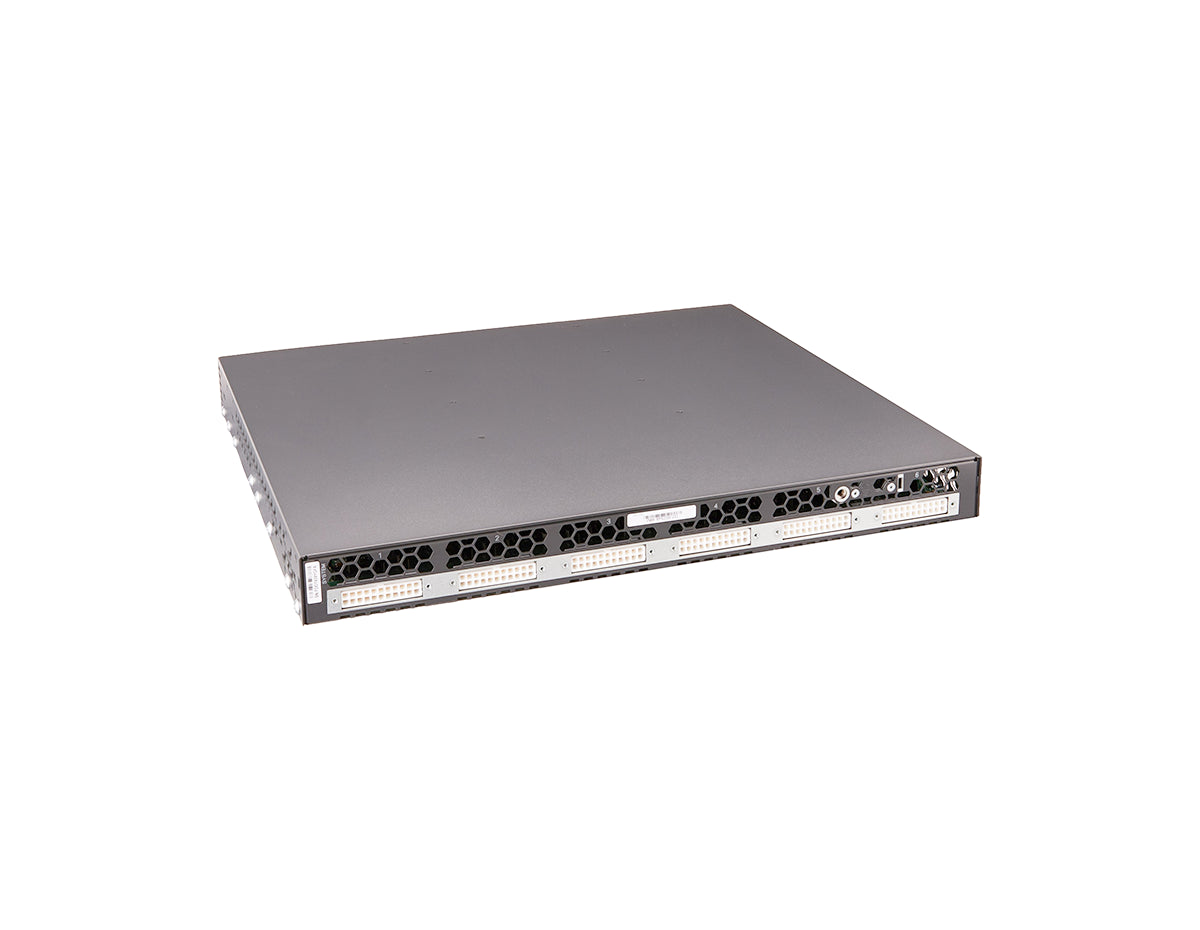

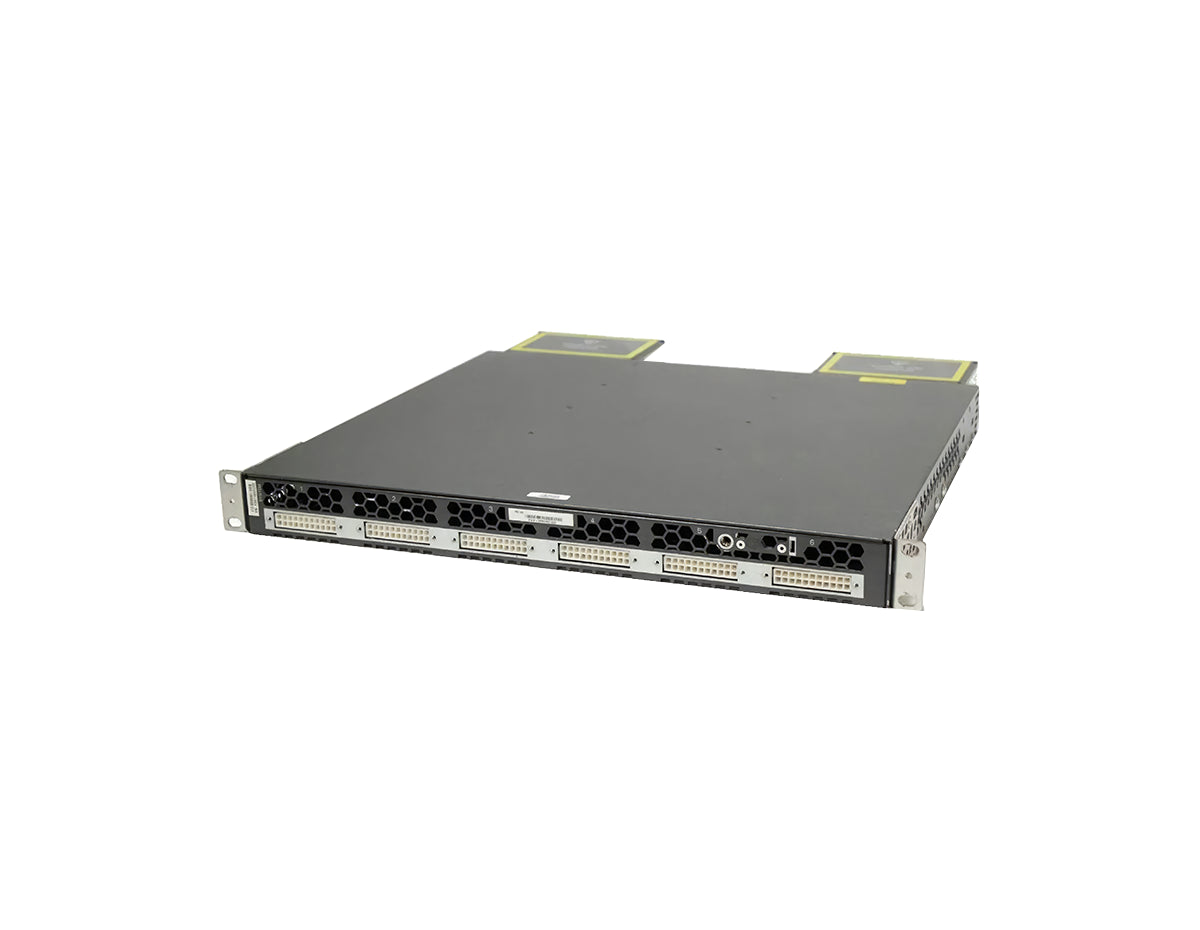

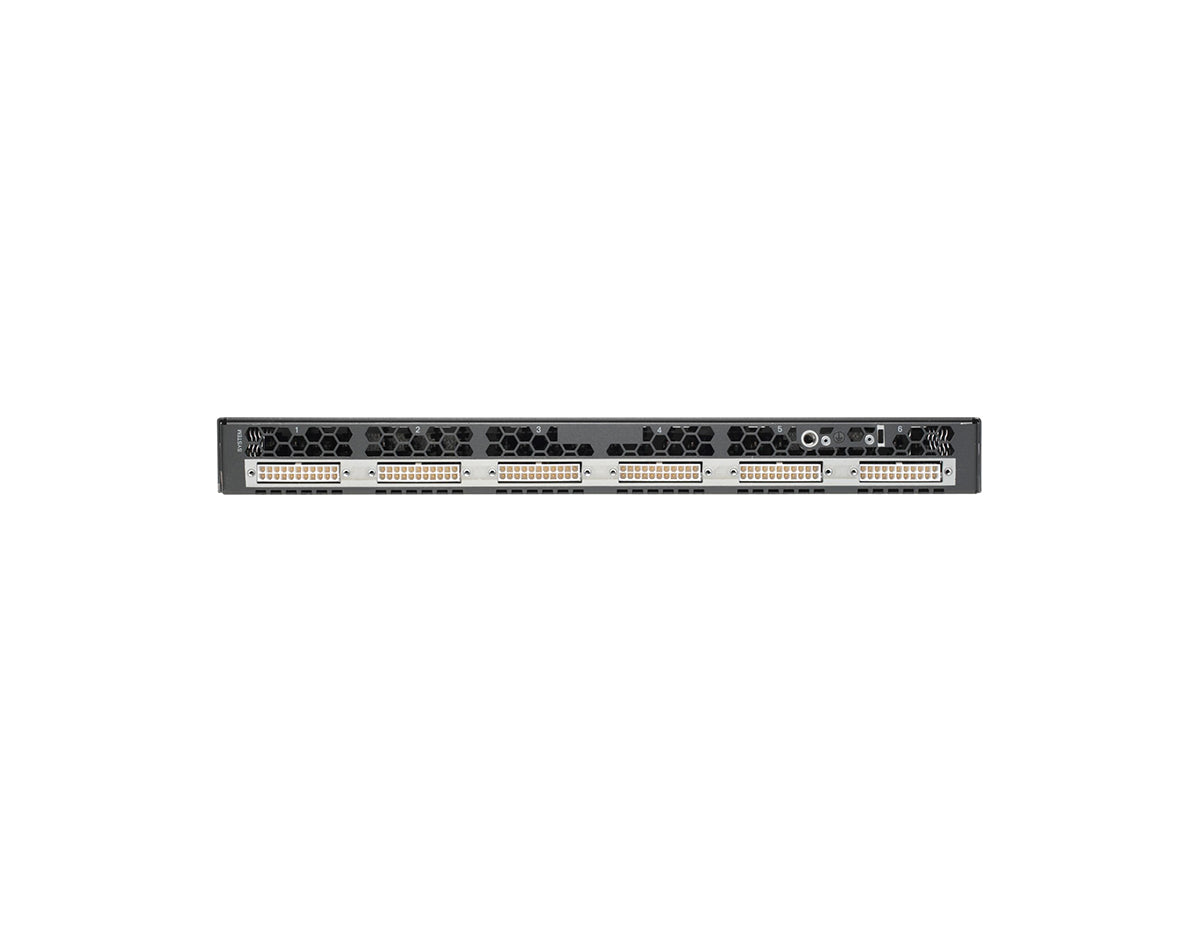

| Properties | Cisco PWR-RPS2300 Redundant Power System Chassis |
| Description | Provides power supply redundancy for up to two devices among six connected Cisco switches or routers |
| Product Type | External Redundant Power System (1 RU) |
| Compatibility | Cisco Catalyst 2960-X/S/Plus, 3750-E, 3560-E/v2, 3550, 2950 Series; Cisco Meraki MS220; Cisco ISR 2800/3800 Series |
| Mount Type | Rack-mountable (1 RU) |
Specifications
| Power Supply Bays | 2 (supports 750W or 1150W AC modules) |
| Input Voltage | 100–240 VAC, 50–60 Hz |
| Supported Modules | C3K-PWR-750WAC, C3K-PWR-1150WAC |
| Backup Capacity | Supports up to 2 active devices simultaneously |
| Management | CLI, Cisco Network Assistant, CiscoWorks CiscoView |
| Form Factor | 1.75 x 17.5 x 17.15 in. (without PSU) |
| Operating Temp | -5°C to 45°C |
| Heat Dissipation | Max 1963 BTU/hr (with 2 x 1150W PSU) |
| MTBF | 170,000 hrs (with PSU and blower) |
| Indicators | LEDs for system, PSU, DC output, temperature, fan status |
Accessories
| Included Items | Chassis, one RPS cable, accessory kit with brackets, fan module (included in the box) |
| Compatible Devices | Cisco Catalyst & Meraki switches, Cisco ISR routers listed in datasheet |
| Optional Accessories | Additional RPS cables (CAB-RPS2300-E= / CAB-RPS2300=), spare power supplies, bay inserts |
