Call for Price
Direct-attach cableSFP+ to SFP+10 fttwinaxialSFF-8436/IEEE 802.3aefor Catalyst 29602960-242960-482960G-242960G-482960S-242960S-48; UCS 6140
Description
Reliable 10G Short-Reach Connectivity

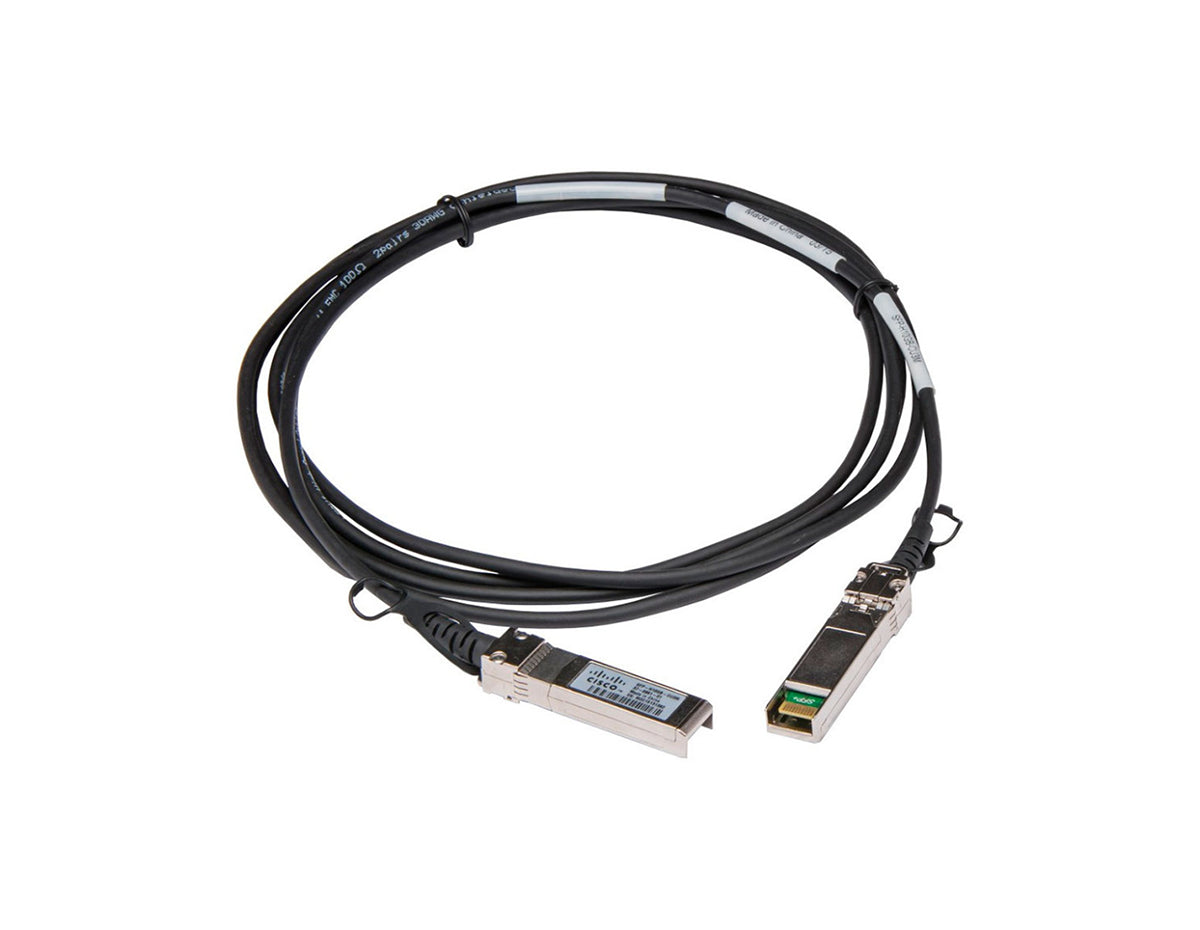

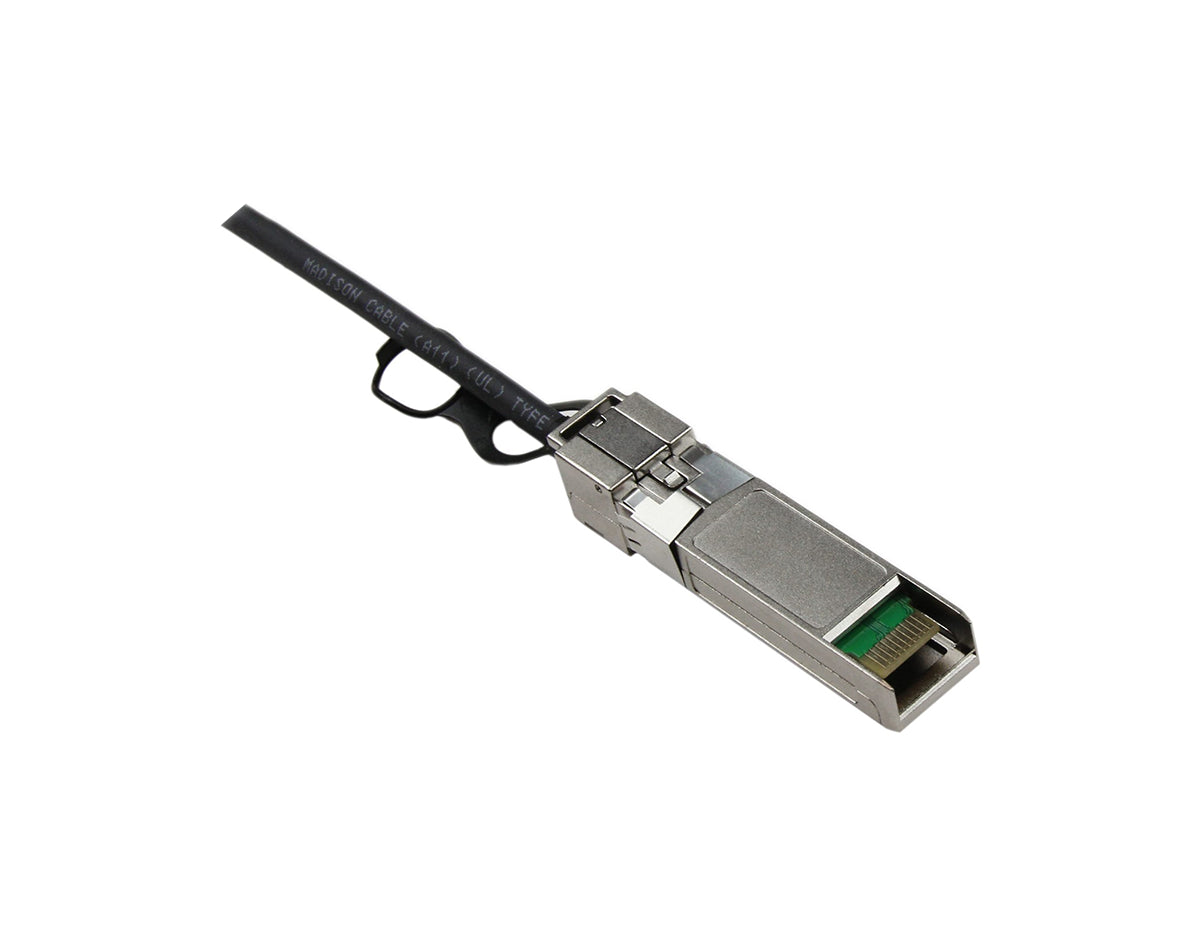

The Genuine Cisco SFP-H10GB-CU3M is a factory-sealed, passive Direct Attach Copper (DAC) cable that connects two 10G SFP+ ports with high reliability and ultra-low latency. At 3 meters in length, it’s the perfect choice for in-rack or adjacent-rack connections in data centers and enterprise networks.
This pre-terminated Twinax cable delivers plug-and-play 10 Gigabit Ethernet performance while eliminating the need for separate optical transceivers and patch cables.
Why Choose the SFP-H10GB-CU3M?
- Low Power Consumption: Passive DAC draws less than 0.1W—ideal for energy-efficient racks.
- Cost-Effective: Avoid transceiver + fiber costs with a single integrated solution.
- Perfect Length: 3m reach gives flexibility across adjacent server racks without excess slack.
- Genuine Compatibility: Designed, tested, and supported by Cisco for seamless integration.
Technical Features:
- Form Factor: SFP+ to SFP+
- Cable Type: Passive Direct Attach Copper (DAC), Twinax
- Length: 3 meters (10 feet)
- Data Rate: Up to 10.3 Gbps
- Gauge: 30 AWG
- Power Consumption: < 0.1W (passive)
- Connector Type: SFP+
- Hot-Swappable: Yes
- Compliance: SFF-8431, SFF-8432, RoHS
For full technical specifications, check the Specifications tab above.
Specifications
| Properties | SFP-H10GB-CU3M |
| Description | Cisco 10GBASE-CU SFP+ Cable 3 Meter, passive |
| Product Type | Twinaxial Cables |
| Length | 3m |
| AWG | 30AWG |
| Operating temperature | 0 to 70°C (32 to 158°F) |
| Max Power Consumption | 0.1W |
| Data rate | 10.5 Gb/s |
| Power Supply | 3.3V |
