Call for Price
Managed, Rack-mountable, 12 x 10G 10GBase-T copper ports, 2 x 10G SFP+ Uplinks, No PoE (Data Only), Layer 3
Description

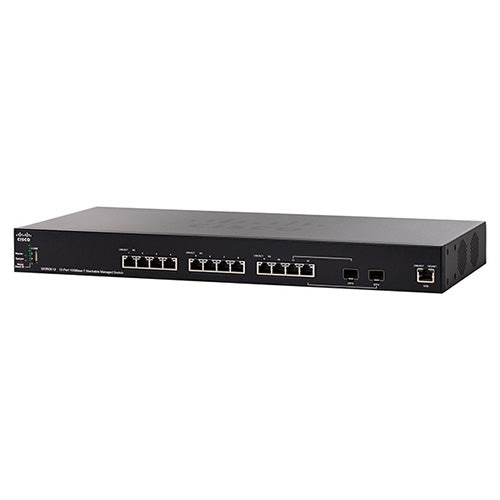

Cisco SX350X-12-K9 Switch
The Cisco SX350X-12-K9 is a compact, stackable managed switch designed for businesses that require a flexible and reliable network solution. Offering 12 Gigabit Ethernet ports and 10 Gigabit uplinks, this switch provides high-speed connectivity and advanced Layer 3 traffic management features, making it perfect for smaller networks or satellite offices that need efficient and scalable networking solutions.
Key Features:
- 12 x Gigabit Ethernet Ports: Provides reliable 10/100/1000 Mbps connectivity, ideal for smaller networks or satellite offices.
- 10 Gigabit Uplinks: Includes 2x 10GBase-T/SFP+ combo uplinks for flexible and high-speed network expansion.
- Layer 3 Traffic Management: Supports VLANs, static routing, and access control lists (ACLs) for enhanced traffic management and security.
- Stacking Capability: True stacking enables simplified management of multiple switches, ensuring easy network scalability.
- Energy Efficiency: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining optimal performance.
- Comprehensive Security: Features such as DHCP snooping, IP Source Guard, and dynamic ARP inspection protect the network from unauthorized access and attacks.
Technical Overview:
- Recommended for: Small to medium-sized businesses requiring compact, high-performance networking with advanced Layer 3 features.
- Ports: 12 x 10/100/1000 Mbps Gigabit Ethernet ports.
- Uplink Modules: 2x 10GBase-T/SFP+ combo uplinks.
- Switching Capacity: 88 Gbps.
- Forwarding Rate: 65.48 Mpps.
- Layer 3 Features: VLANs, static routing, and ACLs for efficient network control.
- Management: Web-based GUI, CLI, and SNMP for comprehensive network management.
- Licensing: Network Essential.
- Security: Includes DHCP snooping, IP Source Guard, and dynamic ARP inspection.
- Energy Efficiency: Supports IEEE 802.3az for energy-efficient operation.
You can check the related tab for the Cisco SX350X-12-K9 datasheet.
| <div class=”tab-content collapse” id=”product_tabs_specifications”><div class=”product-tabs-content-inner clearfix”><h3 class=”tab-inner-title specs-title”><span>Specifications</span></h3><p></p><table border=”0″ cellpadding=”0″ cellspacing=”0″ style=”border-collapse: collapse; width: 1043pt;” width=”1390″><colgroup> <col style=”width: 526pt;” width=”701″/> <col style=”mso-width-source: userset; mso-width-alt: 24064; width: 517pt;” width=”689″/> </colgroup><tbody><tr height=”25″ style=”height: 18.5pt;”><td class=”xl67″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>Specifications</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>SX350X-12-K9</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>Capacity in millions of packets (mpps)</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>178.56</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>Switching capacity (Gbps)</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>240</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>Flash Memory</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>256 MB</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>CPU</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>1.3-GHz and 800-MHz (dual-core) ARM</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>CPU Memory</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>512MB</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>Packet Buffer</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>3 MB</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>MAC addresses</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>32K</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>Head-of-line (HOL) blocking</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>Head-Of-Line (HOL) blocking</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>Quality of Service (QoS)</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>8 hardware queues, Strict priority and Weighted Round-Robin (WRR), Port based; 802.1p VLAN priority based</td></tr><tr data-mce-fragment=”1″ height=”251″ style=”height: 188.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”251″ style=”height: 188.5pt; width: 526pt;” width=”701″>Standards</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3bz 2.5GBase-T and 5GBase-T, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbit/s Ethernet over fiber for LAN, IEEE 802.3an 10GBase-T 10 Gbit/s Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet, NBASE-T, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 826, RFC 879, RFC 896, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3176, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>Operating Temperature</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>32° to 122°F (0° to 50°C)</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>Operating humidity</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>10% to 90%, relative, noncondensing</td></tr><tr data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt;”><td class=”xl67″ data-mce-fragment=”1″ height=”25″ style=”height: 18.5pt; width: 526pt;” width=”701″>Certification</td><td class=”xl67″ data-mce-fragment=”1″ style=”width: 517pt;” width=”689″>UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A</td></tr></tbody></table><p><span style=”font-size: 0.875rem;”></span></p></div></div> |
Accessories
| Hardware | |
| LEDs | System, master, stack ID, link/speed per port |
| Cabling type | UTP Category 5 or better; fiber options (Single-Mode Fiber [SMF] and Multimode Fiber [MMF]); coaxial SFP+ |
| Accessories | There is no additional accessory other than the mounting kit and power cord included in the product package. |
| Supported SFP modules | |
| SKU | Media |
| MGBSX1 | Multimode fiber |
| MGBLX1 | Single-mode fiber |
| MGBLH1 | Single-mode fiber |
| MGBT1 | UTP cat 5e |
| GLC-SX-MMD | Multimode fiber |
| GLC-LH-SMD | Single-mode fiber |
| GLC-BX-U | Single-mode fiber |
| GLC-BX-D | Single-mode fiber |
| GLC-TE | UTP cat 5e |
| SFP-H10GB-CU1M | Copper coax |
| SFP-H10GB-CU3M | Copper coax |
| SFP-H10GB-CU5M | Copper coax |
| SFP-10G-SR | Multimode fiber |
| SFP-10G-LR | Single-mode fiber |
| SFP-10G-SR-S | Multimode fiber |
| SFP-10G-LR-S | Single-mode fiber |
| Package contents | — Cisco 350X Series Stackable Managed Switch — Power cord — Mounting kit included with all models — Console cable — Quick Start Guide |
| Minimum requirements | — Web browser: Mozilla Firefox version 34 or later, Microsoft Internet Explorer version 9 or later, Chrome version 40 or later, Safari version 5 or later — Category 5e Ethernet network cable for Gigabit Ethernet speeds at up to 100m; Category 6a Ethernet network cable for 10 Gigabit Ethernet speeds at up to 100m — TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed |
