Description

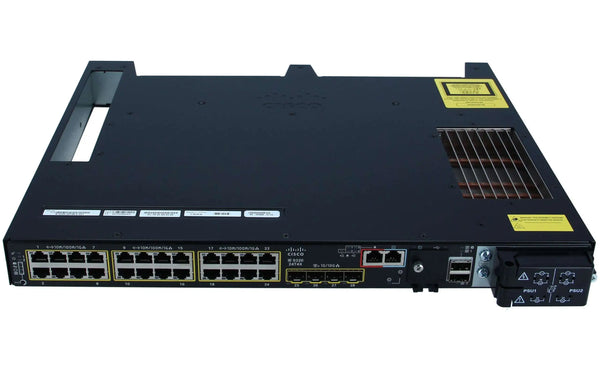

Cisco IE-9320-24T4X-E Catalyst Industrial Switch 24xGE 4xSFP+

The Cisco IE-9320-24T4X-E is a high-performance Layer 3 industrial Ethernet switch built for mission-critical networks in sectors like energy, transportation, smart cities, and manufacturing. It features 24 Gigabit copper ports and 4 10G SFP+ uplinks for high-speed backbone integration. With a rugged 1RU rack-mount design and a wide operating temperature range (-40°C to 75°C), it is ideal for deployment in extreme environments.

Powered by Cisco IOS XE, the switch supports Secure Boot, MACsec encryption, and Cisco Trust Anchor for end-to-end security. The IE-9320-24T4X-E enables advanced network segmentation, zero-touch provisioning, and traffic visibility through WebUI, Cisco Catalyst Center, or open APIs. Its robust hardware is built to endure shock, vibration, and electromagnetic interference, delivering long-term reliability in industrial applications.

Key Features:

• 24 x Gigabit Copper Ports: Full 10/100/1000 Mbps access for industrial devices and sensors.
• 4 x 10G SFP+ Uplinks: High-speed fiber connectivity for demanding backbone applications.
• Ruggedized Design: Fanless and certified for -40°C to 75°C operation, with industrial shock and surge resistance.
• Secure and Intelligent: Features Secure Boot, MACsec-128, Trust Anchor, and threat visibility with Full Flexible NetFlow.
• Layer 2 & Layer 3 Capabilities: Supports VLANs, QoS, static routing, OSPF, RIP, PBR, and advanced multicast protocols.
• WebUI & Cisco Catalyst Center: Simple management, remote provisioning, and real-time monitoring.
• Resilient Topologies: Includes REP, PRP, MRP, HSR, EtherChannel, and high-availability stacking.
• Industrial Protocols: Supports EtherNet/IP (CIP), PROFINET, GOOSE, Modbus TCP, and IEEE 1588v2 PTP timing.

Technical Specifications:

• Total Ports: 28 (24 x 10/100/1000 Mbps RJ45, 4 x 1/10G SFP+)
• Switching Bandwidth: 128 Gbps
• Forwarding Rate: 76 Gbps (line-rate)
• MAC Addresses: 16,000
• VLANs Supported: 1024
• Routing: Static routing, OSPF, RIP, Policy-Based Routing (PBR)
• Power Input: Dual AC/DC (PWR-RGD-AC-DC-H supported)
• Power Consumption: 35W typical
• Memory: 4 GB DRAM, 8 GB flash (2.5 GB user accessible)
• Form Factor: 1RU rack-mountable
• Dimensions: 1.72 x 17.5 x 14.0 in
• Weight: 9.5 lb (4.3 kg)
• Operating Temperature: -40°C to 75°C (-40°F to 167°F)
• Certifications: IEC 61850-3, IEEE 1613, EN 50121, UL 61010-2-201, Class I Div 2
• Software License: Cisco IOS XE – Network Essentials
