Description

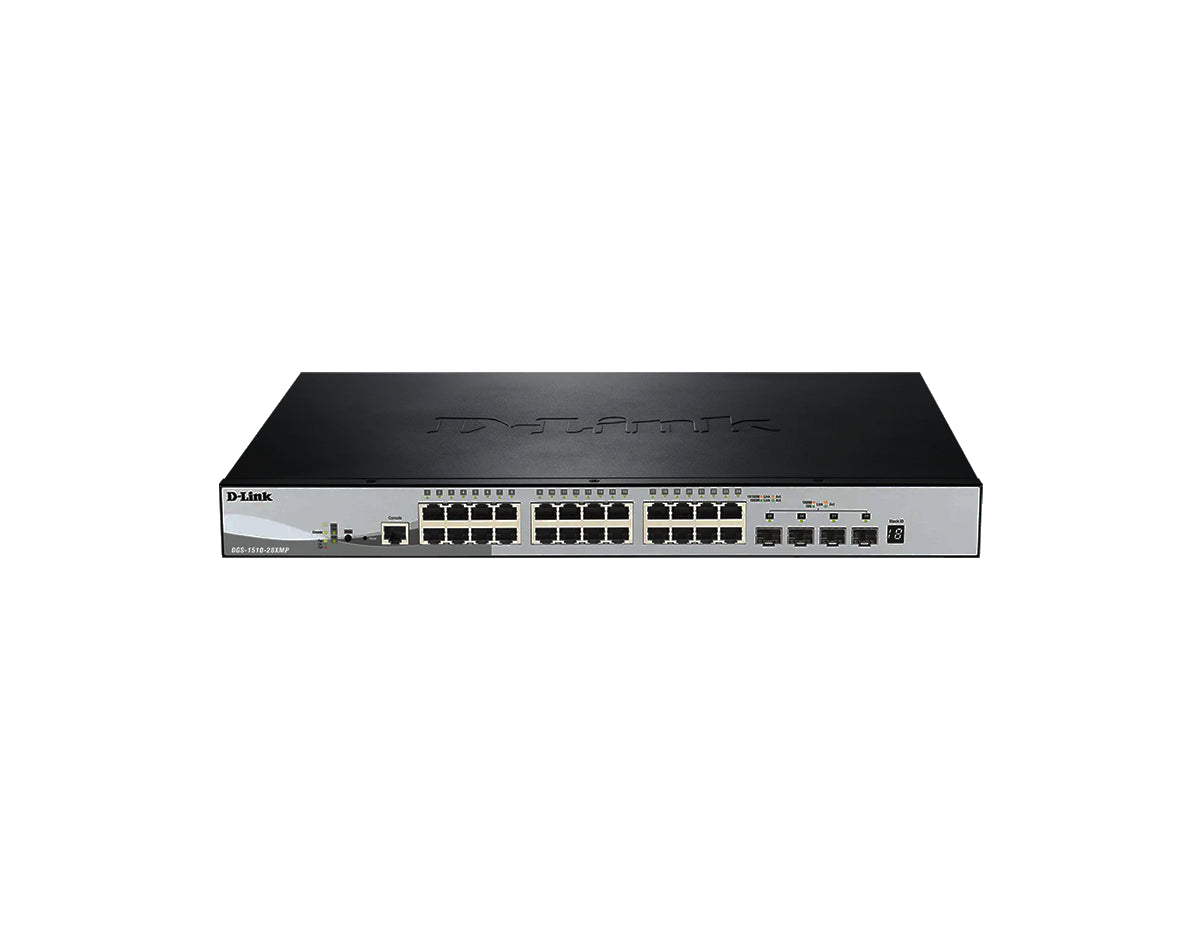

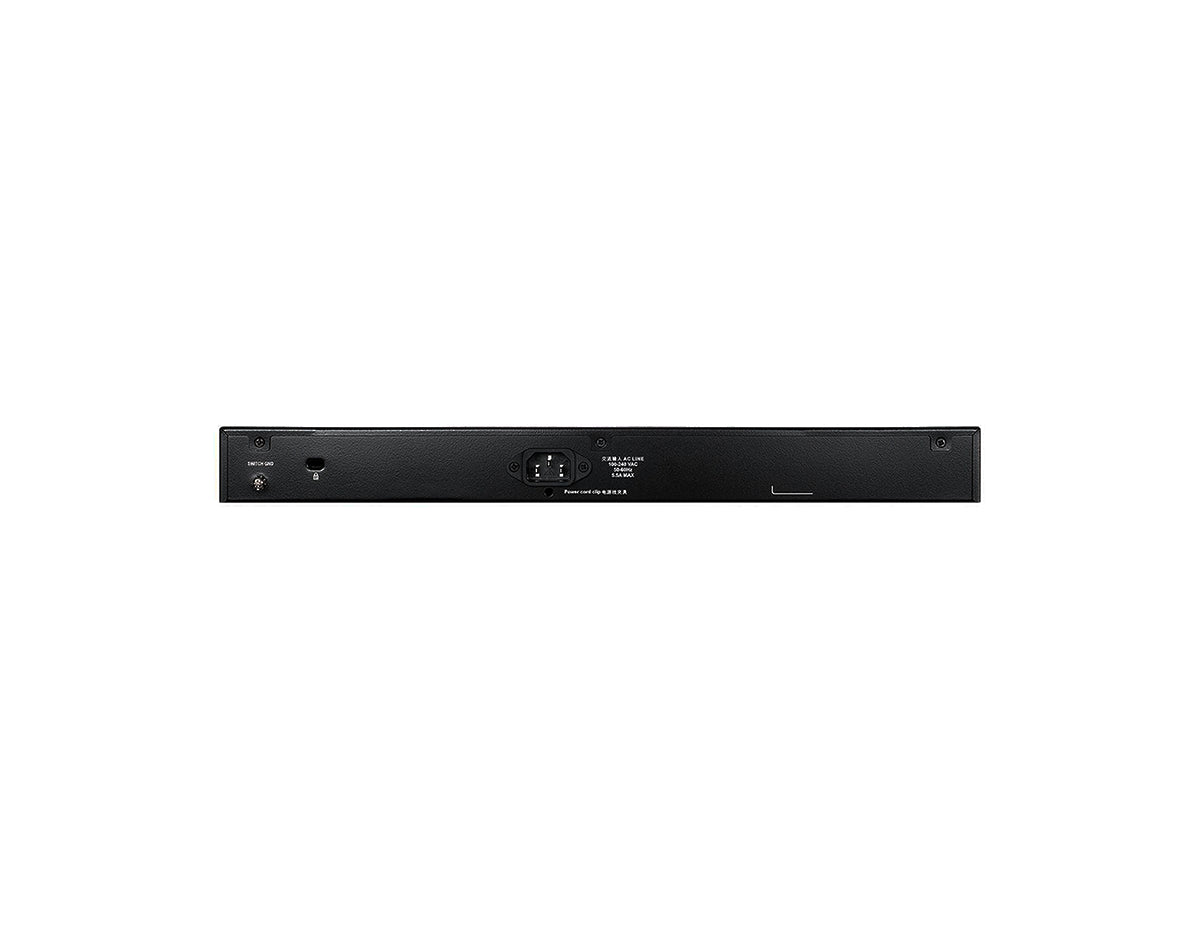

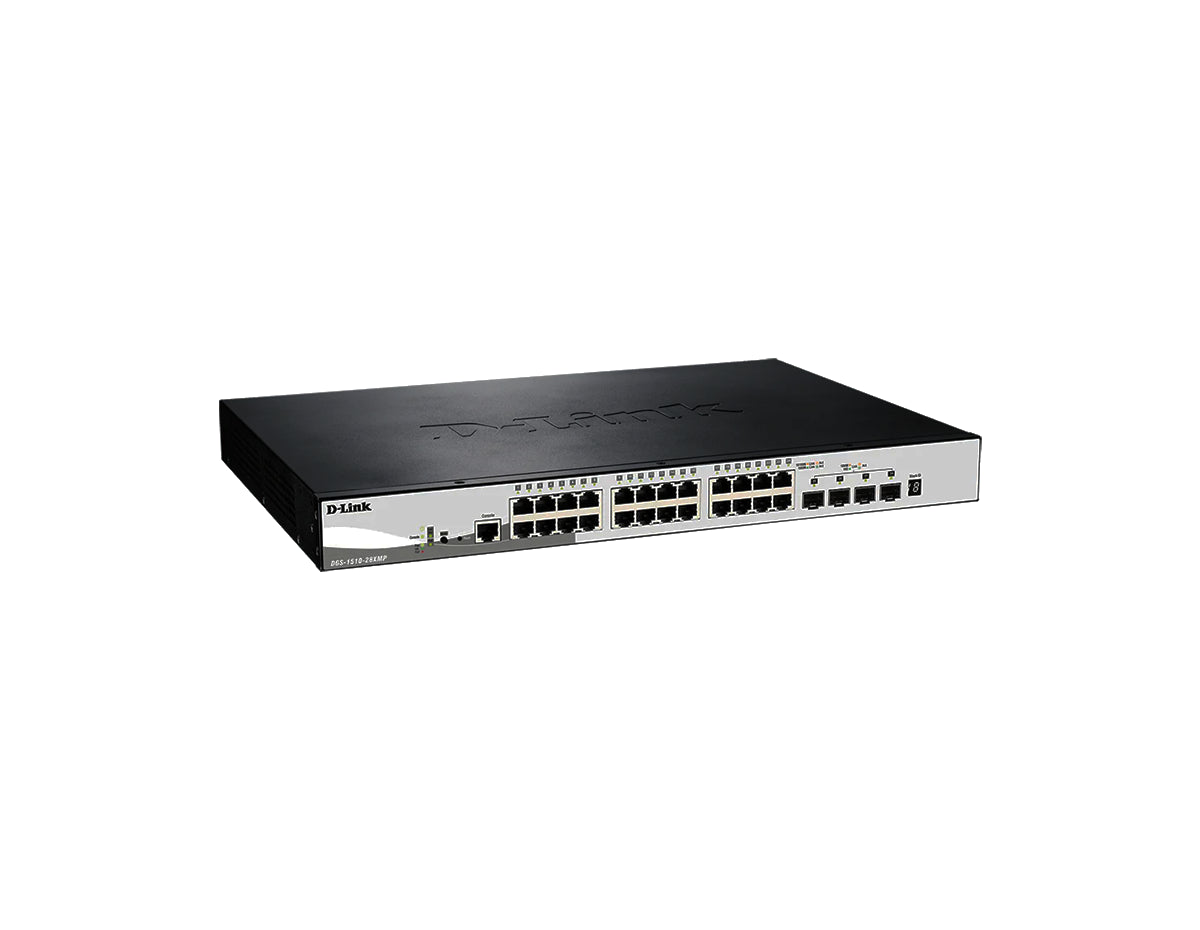

D-Link DGS-1510-28XMP Switch
The D-Link DGS-1510-28XMP is a high-capacity 28-port Web Smart switch designed to meet businesses’ power and performance requirements. It has Power over Ethernet Plus (PoE+) capability across all 24 Gigabit ports. This switch can provide up to 370 watts of power to accommodate various PoE devices. Additionally, the DGS-1510-28XMP offers advanced functionalities such as VLAN, QoS, and Link Aggregation, making it an optimal solution for overseeing multiple network segments and high-bandwidth applications. Furthermore, it includes support for IPv6 and an innovative web management interface to facilitate straightforward setup and administration.
Quick Specs:
- 24x 10/100/1000 Mbps PoE capable ports
- 4x 10G SFP+ uplink
- Switching capacity: 128 Gbps
- Layer 2 management and security with Layer 3 capabilities
Please see the related tabs for the DGS-1510-28XMP datasheet and compatible accessories
Properties
| Properties | DGS-1510-28XMP |
| Description | The PoE-capable DGS-1510-28XMP switch provides flexibility for businesses looking to power IP phones, wireless access points, or IP cameras using existing network infrastructure. The ideal combination of high bandwidth connections and PoE support. |
| Product Family | The DGS-1510 Series |
| Product Type | Switch |
| Interfaces | 24 x 10/100/1000 Mbps PoE-capable 4 x 10G SFP+ |
| Duplex Mode | Full/half-duplex for 10/100 Mbps and full-duplex for 1000 Mbps speed |
| Port Standards & Functions | • IEEE 802.3 10BASE-T Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • IEEE 802.3ab 1000BASE-T Gigabit Ethernet • IEEE 802.3ae 10 Gigabit Ethernet • IEEE 802.3x Flow Control for full-duplex mode, auto-negotiation |
| PoE Power Budget | Max. 370 W |
| AC Input | 100 to 240 VAC 50/60 Hz internal universal power supply |
| Maximum Power Consumption | • 436.3 W (PoE on) • 38.4 W (PoE off) |
| Fans | 2 x smart fans |
| Chassis + FEP + Fan Dimensions (HxWxD) Inches |
440 x 308 x 44 mm (17.36 x 12.12 x 1.73 in) |
| Network Cables | UTP Cat. 5, Cat. 5e (100 m max.); EIA/TIA-568 100-ohm STP (100 m max.) |
Specifications
| Specifications | DGS-1510-28XMP |
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.24 Mpps |
| Packet Buffer Memory | 1.5 MB per device |
| MAC addresses | 16000 |
| Stacking bandwidth support | 40 Gbps |
| Number of members |
6 |
| MTBF | 274,796 hours |
| Operating Temperature | -5 to 50 ˚C (23 to 122 ˚F) |
| Certifications | CE, FCC, C-Tick, VCCI, BSMI, CCC, IPv6 Ready Logo Phase 2, cUL, CB |
| Green Technology | • IEEE 802.3az Energy Efficient Ethernet (EEE) • D-Link Green 3.0 power-saving features |
Accessories
| DEM-310GT | 1000BASE-LX, single-mode, 10 km |
| DEM-311GT | 1000BASE-SX, multi-mode, 550 m |
| DEM-312GT2 | 1000BASE-SX, multi-mode, 2 km |
| DEM-314GT | 1000BASE-LHX, single-mode, 50 km |
| DEM-315GT | 1000BASE-ZX, single-mode, 80 km |
| DGS-712 | 1000BASE-T to SFP transceiver |
| DEM-331T | 1000BASE-LX, wavelength Tx: 1550 nm, Rx: 1310 nm, single-mode, 40 km |
| DEM-331R | 1000BASE-LX, wavelength Tx: 1310 nm, Rx: 1550 nm, single-mode, 40 km |
| DEM-330T | 1000BASE-LX, wavelength Tx: 1550 nm, Rx: 1310 nm, single-mode, 10 km |
| DEM-330R | 1000BASE-LX, wavelength Tx: 1310 nm, Rx: 1550 nm, single-mode, 10 km |
| DEM-302S-BXD | 1000BASE-LX, wavelength Tx: 1550 nm, Rx: 1310 nm, single-mode, 2 km |
| DEM-302S-BXU | 1000BASE-LX, wavelength Tx: 1310 nm, Rx: 1550 nm, single-mode, 2 km |
| DEM-431XT | 10GBASE-SR SFP+ transceiver (without DDM), 33 m: OM1 MMF, 82 m: OM2 MMF, 300 m: OM3 MMF |
| DEM-CB100S | 10G SFP+ 1 m Direct Attach Cable |
| DEM-CB300S | 10G SFP+ 3 m Direct Attach Cable |
| DEM-CB700S | 10G SFP+ 7 m Direct Attach Cable |
| DEM-431XT-DD | 10GBASE-SR SFP+ transceiver (with DDM), 33 m: OM1 MMF, 82 m: OM2 MMF, 300 m: OM3 MMF |
| DEM-432XT | 10GBASE-LR SFP+ transceiver (without DDM), 10 km |
| DEM-432XT-DD | 10GBASE-LR SFP+ transceiver (with DDM), 10 km |
| DEM-433XT | 10GBASE-ER SFP+ transceiver (without DDM), 40 km |
| DEM-433XT-DD | 10GBASE-ER SFP+ transceiver (with DDM), 40 km |
| DEM-434XT | 10GBASE-ZR SFP+ transceiver (without DDM), 80 km |
| DEM-436XT-BXD | 10GBASE-LR BiDi SFP+ transceiver (without DDM), wavelength Tx: 1330 nm, Rx: 1270 nm, 20 km |
| DEM-436XT-BXU | 10GBASE-LR BiDi SFP+ transceiver (without DDM), wavelength Tx: 1270 nm, Rx: 1330 nm, 20 km |
