Call for Price

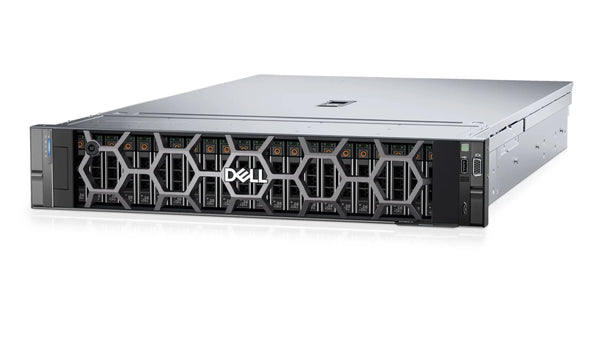

Dell PowerEdge R760 Server, with dual 8-core Intel® Xeon® Silver 4509Y processors, 64GB DDR5 memory, 600GB SAS hard drive, is optimized for demanding enterprise applications and data-intensive workloads
Description
Dell R760 Server 2x Xeon Silver 4509Y 4x16GB 1x600GB PER760-2x4509Y-4x16G-600GB
The Dell PowerEdge R760 Server is engineered for robust enterprise performance, ideal for multi-tasking environments and data-intensive workloads. Powered by dual Intel® Xeon® Silver 4509Y processors, each with 8 cores and 16 threads, this server provides solid processing capabilities. It includes 64GB of high-speed DDR5 memory and a 600GB SAS hard drive, making it a powerful solution for managing demanding applications and data operations.
Key Features:
- Processor: Dual Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads per processor, 22.5M Cache
- Memory: 64GB (4 x 16GB) RDIMM, 5600MT/s, Single Rank
- Storage: 600GB 10K RPM SAS hard drive, 12Gbps, 2.5-inch with 3.5-inch hybrid carrier, Hot-Plug
- RAID Controller: PERC H755 Adapter LP for flexible storage configurations
- Power Supply: Non-redundant 600W power supply, performance optimized
- Network: No OCP 3.0 mezzanine NIC card, Blank Filler Only
- Management: iDRAC9 Express with factory-generated password
Technical Specifications:
- Chassis: PowerEdge R760 Server
- Trusted Platform Module: Not included
- CPU Heatsink: Heatsink for 2 CPU configuration (greater than 165W)
- Memory Configuration: Performance optimized with 5600MT/s RDIMMs
- BIOS: Performance BIOS setting, UEFI Boot Mode with GPT Partition
- Power Cord: NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (North America)
- Embedded Management: iDRAC9, Express 16G with iDRAC Service Module disabled
For Configuration:
- If you have specific requirements for the server components, reach out to us for assistance. We can customize the configuration to meet your needs with your desired parts.
Properties
| Product Name | Dell PowerEdge R760 Server |
| Description | Rack server designed for essential business applications, featuring dual Intel® Xeon® Silver 4509Y processors, 32GB DDR5 memory, and a 600GB SAS hard drive |
| Processor | Dual Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads per processor, 22.5MB Cache |
| Memory | 32GB (2 x 16GB) RDIMM, 5600MT/s, Single Rank |
| Storage | 600GB 10K RPM SAS hard drive, 12Gbps, 2.5-inch with 3.5-inch hybrid carrier, Hot-Plug |
| RAID Controller | PERC H755 Adapter LP for flexible storage configurations |
| Power Supply | Non-redundant 600W power supply, performance optimized |
| Network Adapter | No OCP 3.0 mezzanine NIC card, Blank Filler Only |
| Management | iDRAC9 Express with factory-generated password |
| Chassis | 2U rack-mountable |
| Dimensions | Height: 8.73 cm (3.44 inches), Width: 44.45 cm (17.5 inches), Depth: 71.75 cm (28.25 inches) |
| Operating System | Supports Windows Server, Red Hat Enterprise Linux, VMware ESXi (OS not included) |
Specifications
| Processor | Dual Intel® Xeon® Silver 4509Y, 2.6GHz, 8 cores, 16 threads per processor, 22.5MB Cache |
| Memory | 32GB (2 x 16GB) RDIMM, 5600MT/s, Single Rank |
| Storage | 600GB 10K RPM SAS hard drive, 12Gbps, 2.5-inch with 3.5-inch hybrid carrier, Hot-Plug |
| RAID Controller | PERC H755 Adapter LP |
| Power Supply | Non-redundant 600W power supply, performance optimized |
| Network Adapter | No OCP 3.0 mezzanine NIC card, Blank Filler Only |
| Management | iDRAC9 Express with factory-generated password |
| Chassis | 2U rack-mountable |
| Additional Features | Heatsink for 2 CPU configuration, Performance BIOS setting, Hot-plug drive support, Expandable memory and storage options |
| Embedded Management | iDRAC9, Express 16G with iDRAC Service Module disabled |
