Detail:Dell WD22TB4 Thunderbolt Dock The Dell WD22TB4 Thunderbolt Docking Station (WD22TB4) can be connected to your computer via its male Thunderbolt 4 connector. Once connected, you will have access to…
Description

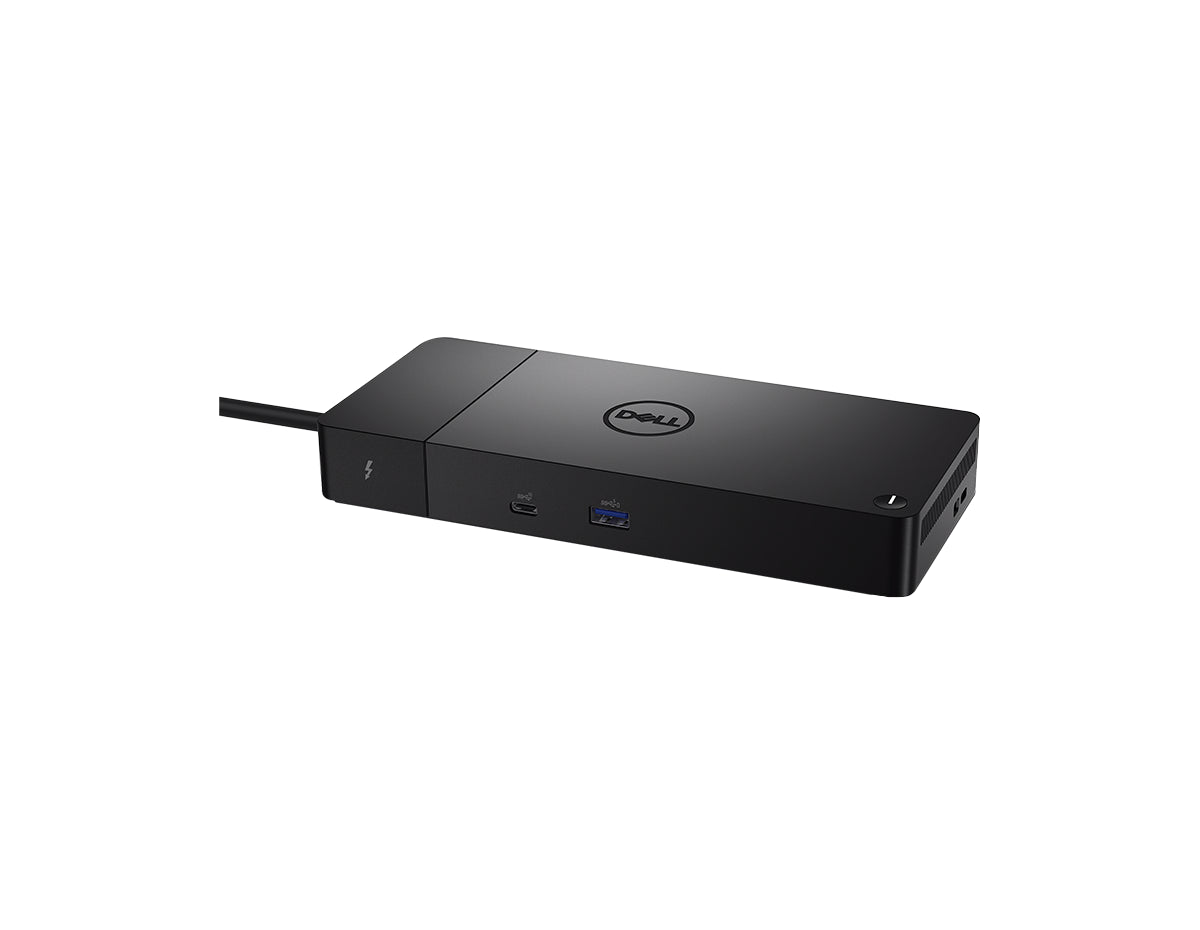

Dell WD22TB4 Thunderbolt Dock

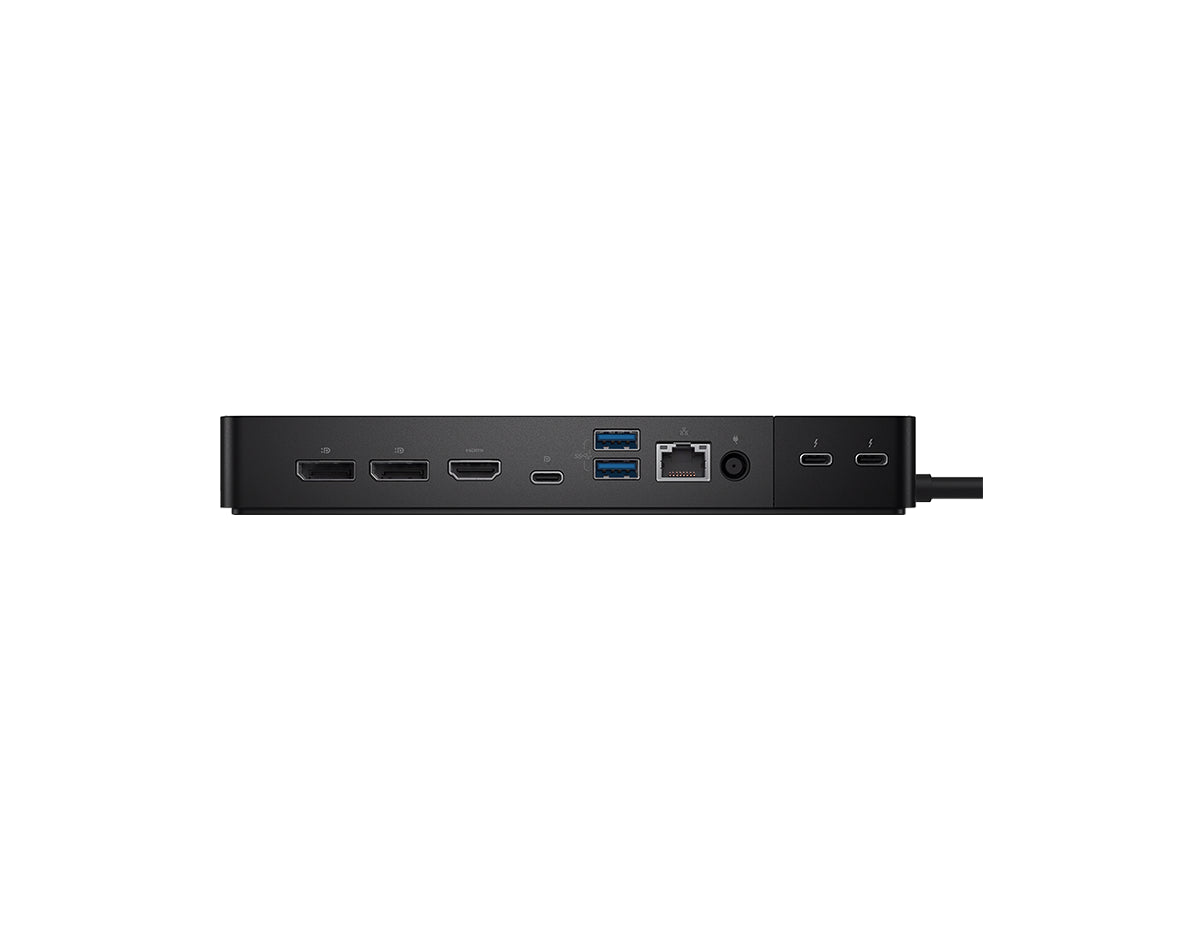

The Dell WD22TB4 Thunderbolt Docking Station (WD22TB4) can be connected to your computer via its male Thunderbolt 4 connector. Once connected, you will have access to a host of ports, including two Thunderbolt 4 ports, one USB 3.2 Gen 2 Type-C port, one USB Type-C multifunction DisplayPort port, three USB 3.2 Gen 1 Type-A ports, two DisplayPort 1.4, one HDMI 2.0, and one Gigabit Ethernet port. The dock has the capacity to deliver up to 130W of power to Dell systems and 90W to non-Dell systems. Moreover, its modular design allows for easy module swapping and upgrades.
Quick Specs:
- Provides up to 130W of Power Delivery
- 2x Thunderbolt 4 Port
- 3x USB 3.2 Gen1 Type-A Ports
- 1x USB 3.2 Gen2 Type-C Port
Please see the related tabs for the WD22TB4 datasheet and compatible accessories.
GUARANTEED to Exceed Expectations.
When purchasing from AMNET Global, rest assured that your information technology equipment is covered for a lifetime. When you receive your order, your unit is already covered by our Lifetime Warranty and Advance Replacement.
Coverage That Never Ends.
In the event of a product malfunction, we fully understand that downtime is not an option. If you experience a product malfunction or failure, we will send you a replacement the same day, fully expedited and at our cost.
Please see our full Terms and Conditions of Warranty here.
QUESTIONS ABOUT THIS PRODUCT OR AVAILABILITY?
You have come to the right place!
If you have an immediate question, please click here and we will be glad to speak with you right away!
To speak to one of our technicians about this product, please call our technical support team at 1.888.428.6677 Option 3 and we will get you taken care of right away!
Properties
Specifications
| Technical Specifications | WD22TB4 |
| Product Type | Docking Station |
| Display Support with Dual USB-C input | For a HBR2* PC (3) FHD @ 60Hz (3) QHD @ 60Hz (2) 4K @ 60Hz For a HBR3 PC (4) FHD @ 60Hz (4) QHD @ 60Hz (2) 4K @ 60Hz For HBR3 PC supporting Display Stream Compression (4) 4K @60Hz |
| Max Resolution | 5K @ 60Hz with HBR2/HBR3 ThunderboltTM systems 8K @ 60Hz with HBR3 ThunderboltTM systems supporting Display Stream Compression |
| Video interfaces | (2) Full size DP1.4 HDMI 2.0 USB-C Multi-function DisplayPort (2) Thunderbolt™ 4 USB-C |
| USB Ports | USB-A: (3) USB 3.2 Gen 1 (1 with PowerShare) USB-C: (2) USB 3.2 Gen 2 (1 with DisplayPort 1.4 Alt Mode) |
| Networking | Gigabit Ethernet (RJ-45) |
| Security Slot Type (cable lock sold separately | Kensington lock slot Noble Wedge lock slot |
| LED Indicators | Power Adapter LED Power Button LED RJ45 LEDs Cable LED Indicators |
| Power | Power Adapter 180 Watt AC with up to 130 Watt power delivery to Dell Commercial Notebooks Up to 90 Watts power delivery to non-Dell systems |
| Dimensions | 8.07 in. x 3.54 in. x 1.14 in. |
| Dock Weight (without power adapter) | 650 g 1.43 lbs |
| Operating Systems | Windows 10 Windows 11 Ubuntu 20.04 and later version Certified by Apple® to work with Mac devices |
| Systems Management | Wireless vPro supported by the notebook, tablet, or workstation Kernel Direct Memory Access (DMA) protection |
| Docking Interface | Thunderbolt™ 4 (Type-C Connector) |
| MAC Address | Pass-Through MAC Address |
| Management Features | PXE Boot Wake-On-LAN MAC address pass-through Port Disablement Wake-On-Dock button Dell Command Update (DCU) Error messages and dock event notifications |
