Call for Price
Fast scan speeds up to 35 ppm/70 ipm, Ultrasonic Double Feed Detection
Description

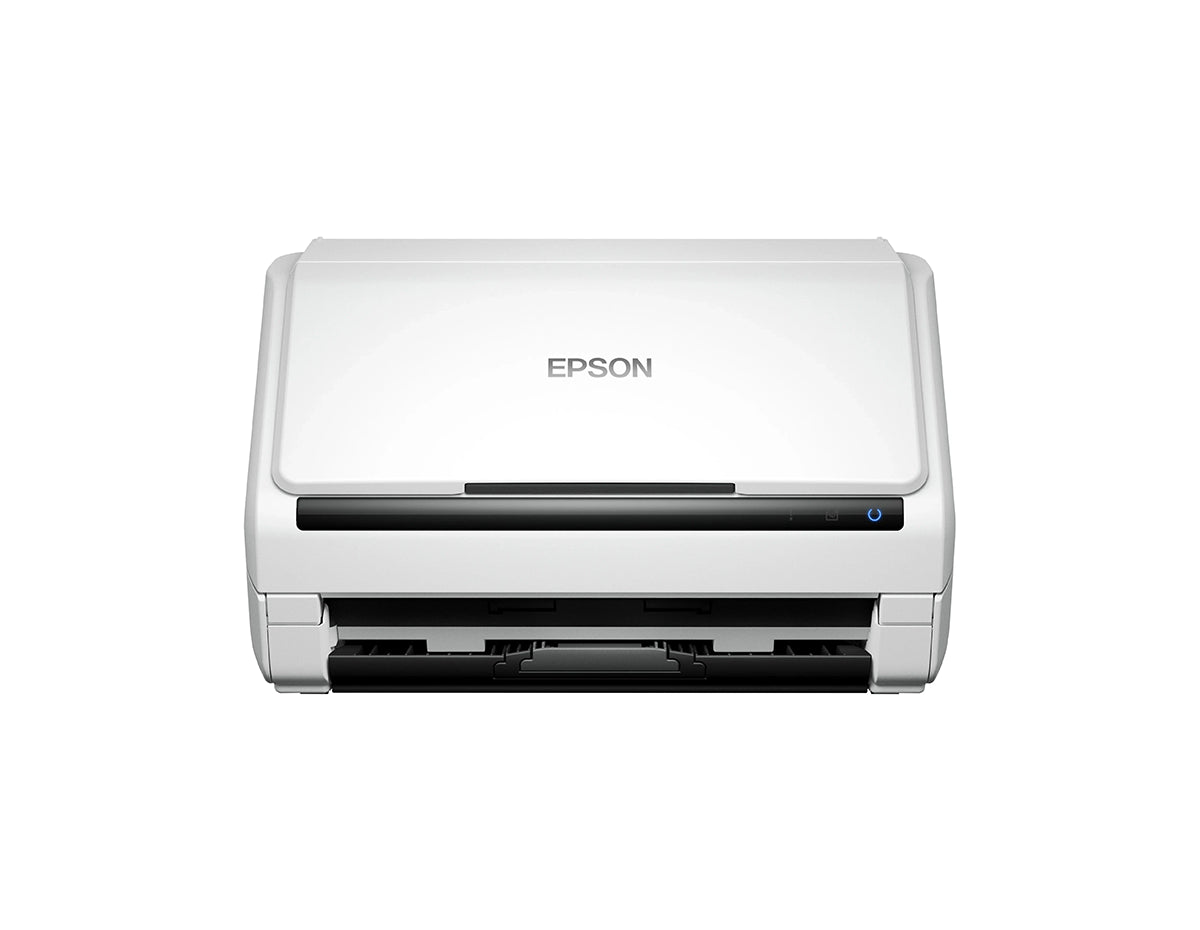

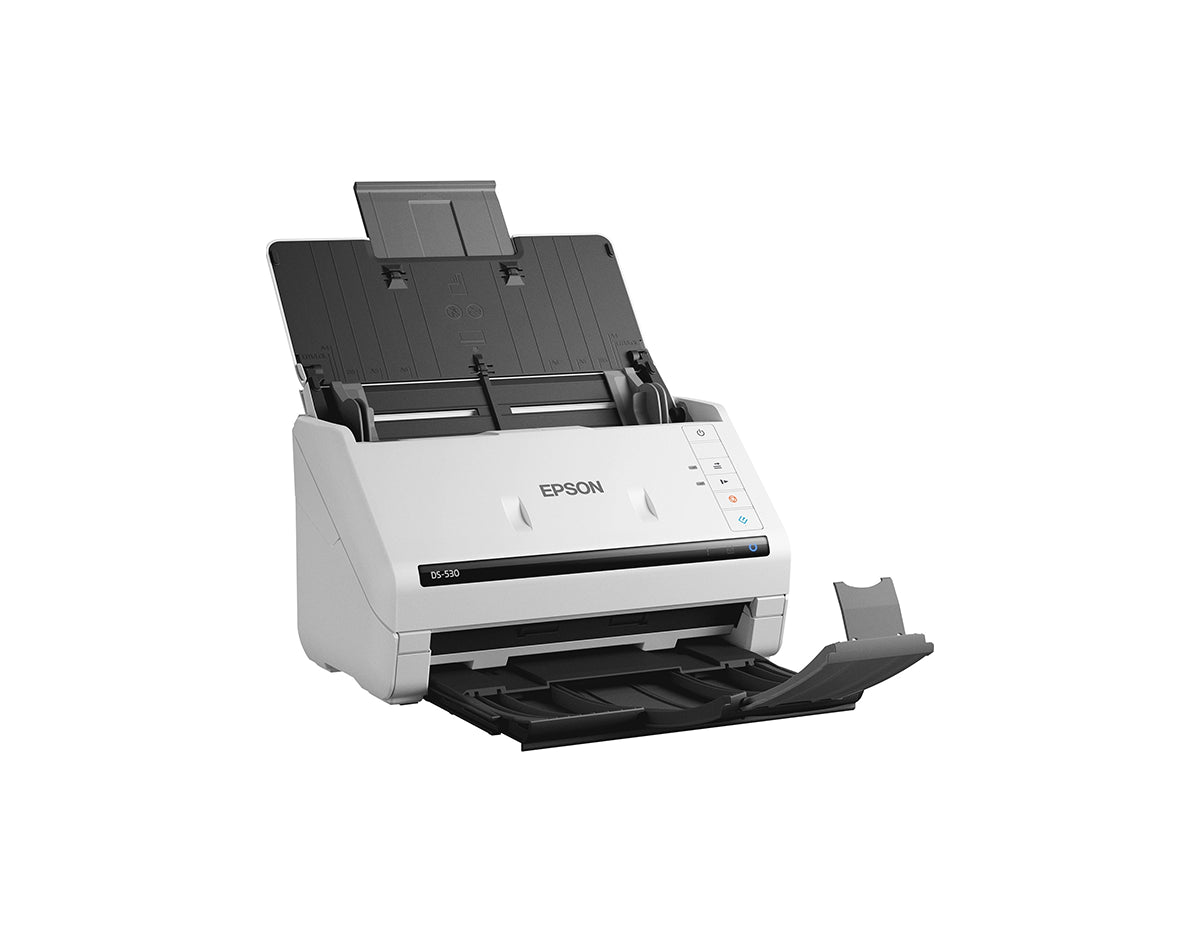

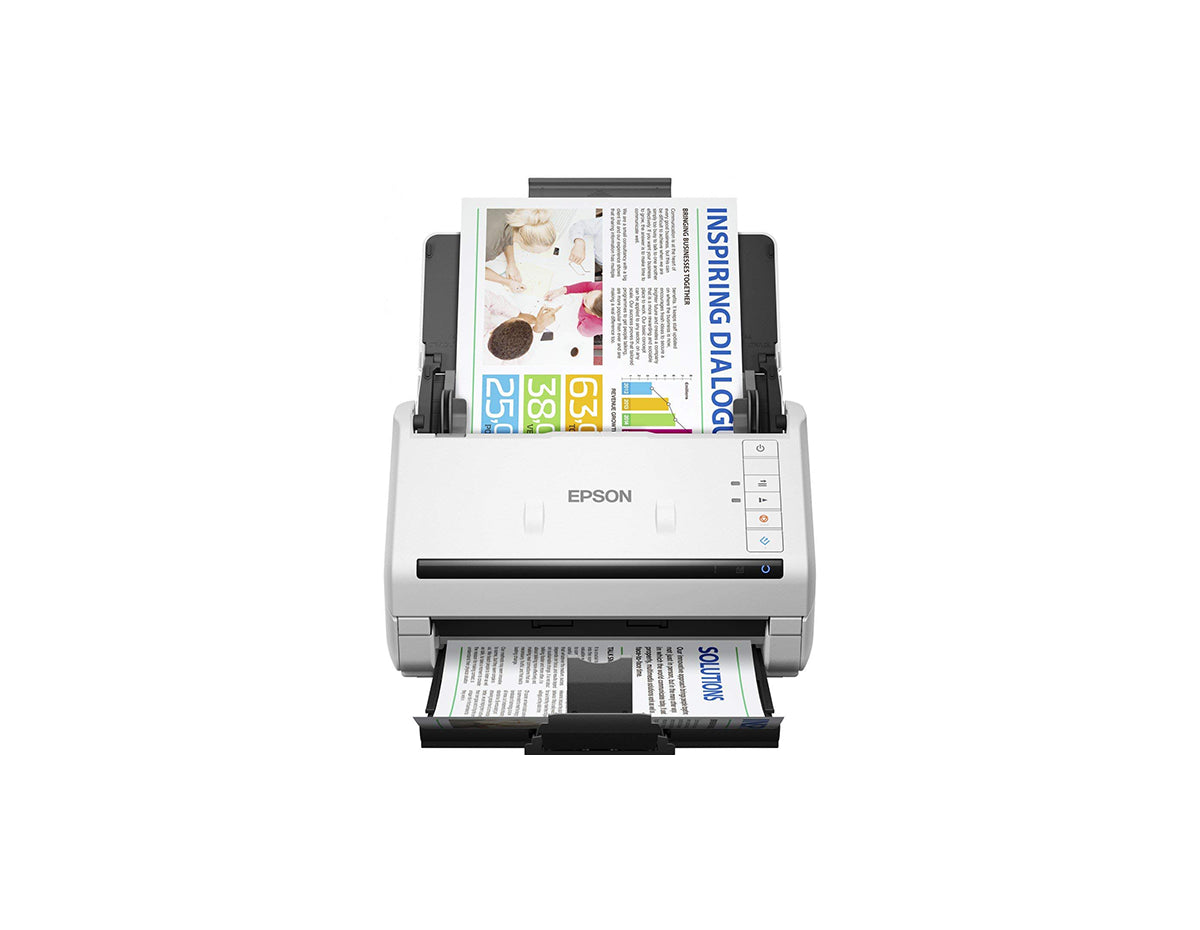

Epson DS-530 Color Duplex Document Scanner
The Epson DS-530 Color Duplex Document Scanner is a high-performance document scanner designed for efficient document management. With fast scan speeds of up to 35 ppm/70 ipm and seamless compatibility with document management systems, this scanner is an ideal choice for businesses looking for reliable and intelligent scanning solutions.
Product Highlights
- Fast scan speeds up to 35 ppm/70 ipm
- One-pass duplex scanning
- Seamless compatibility with TWAIN and ISIS drivers
- Dynamic Skew Correction with three sets of rollers
- Ultrasonic Double Feed Detection
- 50-page Auto Document Feeder (ADF)
- Enhanced features including Slow Speed Mode and programmable jobs
- Daily duty cycle of up to 4,000 sheets
- Scan to editable Word and Excel files or searchable PDF files
- Intelligent color and image adjustments
- Versatile paper handling for business and ID cards, single sheets, and extra-long pages
Specifications
| Category | Specifications |
|---|---|
| Type | Sheet-fed, one pass duplex color scanner |
| Sensor Type | Color Contact Image Sensor (CIS) |
| Light Source | RGB LED |
| Optical Resolution | 600 dpi |
| Maximum Interpolated Resolution | 1200 dpi |
| Color Scan Mode (Bit Depth) | 30-bit input/24-bit output |
| Grayscale Scan Mode | 10-bit input/8-bit output |
| Buttons | Double Feed Detect Skip, Slow Scan Mode, Scan, Stop |
| Auto Document Feeder | Capacity: 50 sheets paper; Document Size: 8.5″ x 240″ max., 2″ x 2″ min.; Paper Weight: 27 – 413 g/m² |
| Scan Speed (Letter-size) | 35 ppm/70 ipm: 300 dpi Black & White, Color, Gray |
| Connectivity | SuperSpeed USB 3.0, optional Network Interface Unit (RJ-45, 10BaseT/100BaseTX) |
| Daily Duty Cycle | Up to 4,000 sheets scanned per day |
| Consumables | Roller assembly kit: 200,000 cycles |
| System Requirements | Windows® 7, 8/8.1, 10; Mac OS® X 10.6.8 – 10.11.x; Software requires Internet connection for download and installation. |
| Environmental Conditions | Temperature (Operating): 41 ° to 95 °F (5 ° to 35 °C); Storage: -13 ° to 140 °F (-25 ° to 60 °C); Humidity (Operating): 15 – 80% (no condensation) |
| Power Requirements | Voltage: AC 100-240 V; Power Consumption: Operation: 17 W; Sleep: 1.2 W; Ready: 9.2 W; Off: 0.1 W |
| Warranty | 1-year on-site |
| Country of Origin | Indonesia |
| Weight and Dimensions (W x D x H) | Product only: 296 x 169 x 176 mm; 3.7 kg |
| Software Included | Epson Scan 2, Document Capture Software, NewSoft® Presto! BizCard® OCR, EMC® Captiva® ISIS (software requires Internet connection for download and installation) |
| Driver Support | TWAIN, ISIS |
| What’s in the Box | DS-530 Color Document Scanner, SuperSpeed USB cable, AC adapter and power cable |
| Eco Features | RoHS compliant |
| Ordering Information | DS-530 B11B226502; Network Interface Unit B12B808461; Carrier Sheets (5) B12B819051; Roller Assembly Kit B12B819031; Flatbed Scanner Dock B12B819011; Cleaning Kit B12B819291 |
Properties
| Category | Details |
| Scanner Type | Sheetfed Scanner |
| Optical Resolution | 600 DPI x 600 DPI (Horizontal x Vertical) |
| ADF Minimum Document Size | 50.8 mm x 50.8 mm (Horizontal x Vertical) |
| ADF Maximum Document Size | 215.9 mm x 609.6 mm (Horizontal x Vertical) |
| Paper Formats | A4 (21.0×29.7 cm), A5 (14.8×21.0 cm), A6 (10.5×14.8 cm), B5, B6, Letter, Postcard, Business cards, Plastic cards, Legal, Executive, A3 with stitching function |
| Scanning Color Depth | Input: 30 Bits Color / 10 Bits Monochrome, Output: 24 Bits Color / 8 Bits Monochrome |
| Ultrasonic Sensor | Yes |
| Category | General Office |
| Scanner Light Source | ReadyScan LED technology |
| Output Resolution | 1200 DPI |
| Scan Speed | Scanning Speed: Monochrome: 35 pages/min; Color: 35 pages/min (A4, 200/300 dpi); Monochrome: 70 image/min; Color: 70 image/min (A4, 200/300 dpi) |
| Paper / Media Handling | |
| Paper Setting Capacity | 50 Sheets |
| Paper Weight | Auto loading: 27 – 413 g/m² |
| Automatic Document Feeder Type | Single pass dual scanning |
| Reliability Daily Duty Cycle | 4,000 pages |
| Automatic Document Feed | 50 pages |
| Duplex Scan | Yes |
Specifications
| Product Dimensions | 296 x 169 x 176 mm (Width x Depth x Height) |
| Product Weight | 3.7 kg |
| Drivers | TWAIN, ISIS (Web download), SANE (Linux), WIA (Windows) |
| Included Software | Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Scan 2, Presto! BizCard 5.6 |
| Compatible Operating Systems | Citrix XenApp 5.0, Citrix XenApp 6.0, Citrix XenApp 7.6 and above, Linux, Mac OS 10.7.x, 10.8.x, 10.9.x, Mac OS X, 10.6.8, Windows 10, 7, 7 x64, 8, 8 (32/64 bit), 8 RT, 8.1, 8.1 x64, Windows Server 2008 (32/64bit), R2, 2012 (64bit), R2, Vista, Vista x64, Server 2003 R2, XP Professional x64 Edition |
| Power Consumption | 17 Watt, 9.2 Watt (economy), 1.2 Watt (standby) |
| Noise Level | Operation (Roll): 6.4 dB (A) |
| Supported Humidity | Operation: 15% – 80%, Storage: 15% – 85% |
| Supported Temperature | Operation: 5° C – 35° C, Storage: -25° C – 60° C |
| Options | Roller Assembly Kit |
