Description

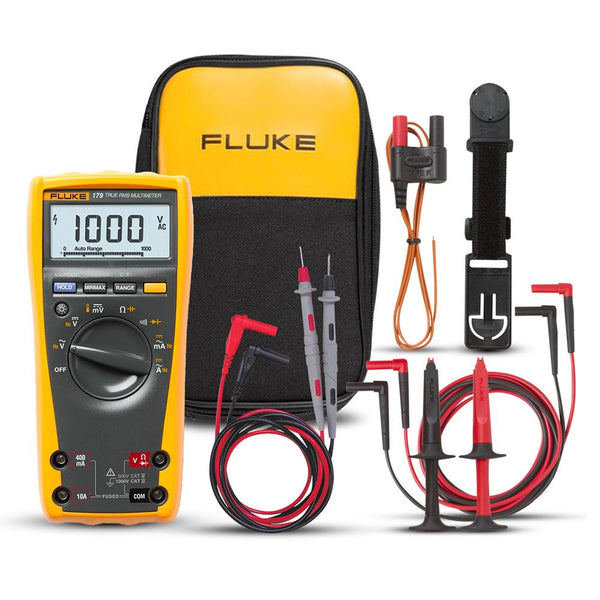

FLUKE-179/EDA2-KIT Digital Multimeter and EDA2 Accessories Kit

The Fluke 179/EDA2 Kit is a high-performance solution for professionals who require dependable and accurate digital measurement. This kit includes the Fluke 179 True-RMS Digital Multimeter along with the EDA2 accessories bundle, featuring SureGrip™ test leads, probes, alligator clips, and a ToolPak magnetic hanger for hands-free operation. Designed for both electrical and electronic systems, the Fluke 179 provides reliable True-RMS measurements, temperature sensing, and diagnostics, all backed by a lifetime warranty.

Key Features:

• True-RMS AC voltage and current for precise readings
• Built-in thermometer with -40°C to +400°C range (Fluke 179 only)
• Measures voltage (AC/DC) up to 1000 V, current up to 10 A
• Supports frequency, resistance, continuity, capacitance, and diode testing
• Analog bargraph, backlight display, and MIN/MAX/AVG recording
• Overvoltage protection: CAT III 1000 V, CAT IV 600 V
• Includes TL75 test leads, 80BK-A temperature probe, user manual, and installed 9V battery
• ToolPak magnetic hanger for easy and secure placement

Technical Specifications:

• DC Voltage: ±(0.09% + 2), max 1000 V, resolution 0.1 mV
• AC Voltage: ±(1.0% + 3), max 1000 V, True-RMS
• DC Current: ±(1.0% + 3), max 10 A, resolution 0.01 mA
• AC Current: ±(1.5% + 3), max 10 A, True-RMS
• Resistance: ±(0.9% + 1), up to 50 MΩ
• Capacitance: ±(1.2% + 2), max 10,000 µF
• Frequency: ±(0.1% + 1), max 100 kHz
• Temperature: ±(1.0% + 10), range -40°C to +400°C
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -30°C to +60°C
• Humidity (non-condensing): 0–90% (≤35°C), 0–70% (≤50°C)
• Battery Life: ~200 hours (alkaline, no backlight)
• Dimensions: 43 x 90 x 185 mm
• Weight: 420 g
• Warranty: Limited lifetime
