Call for Price
Fluke 62 MAX Infrared Thermometer Calibrated The Fluke 62 MAX Infrared thermometer offers similar functionalities to the Fluke 62 MAX+ but is equipped with a single laser and a 10
Description

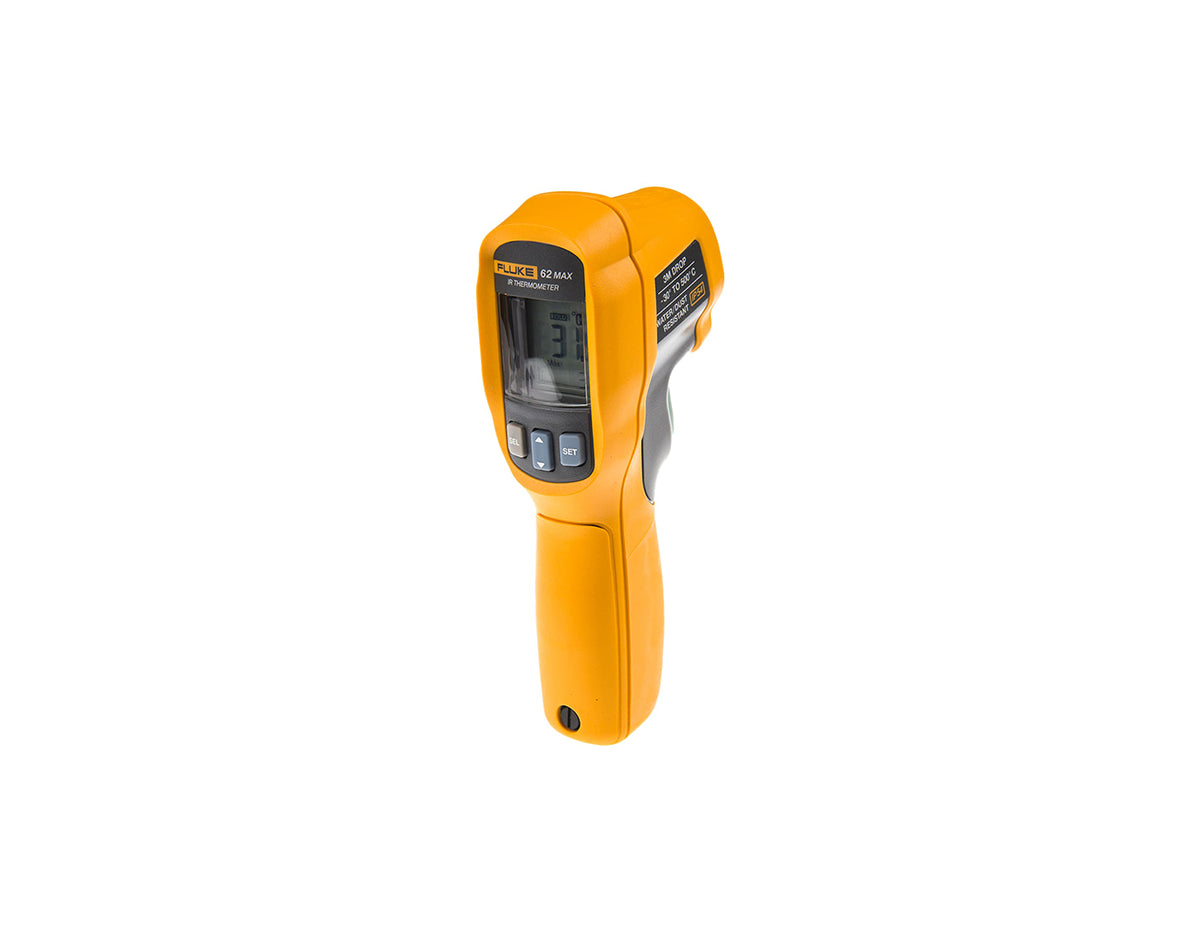

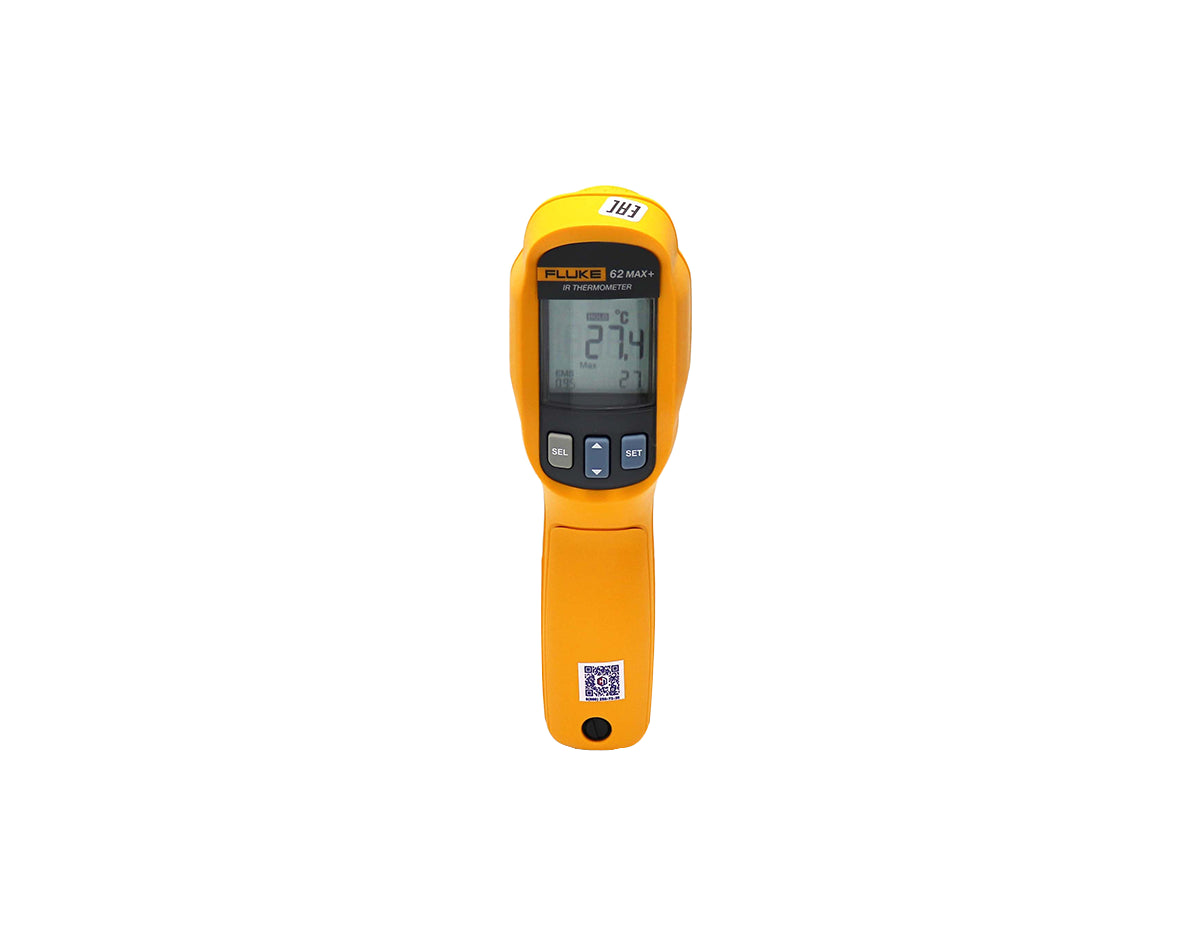

Fluke 62 MAX Infrared Thermometer Calibrated
The Fluke 62 MAX Infrared thermometer offers similar functionalities to the Fluke 62 MAX+ but is equipped with a single laser and a 10:1 distance-to-spot ratio. This device enables non-contact temperature measurements on various equipment such as transformers, motors, pumps, panels, breakers, compressors, ducts, steam lines, valves, and vents. Its compact size and user-friendly design make it convenient to operate. Additionally, the IP54 rating for dust and water resistance ensures reliable and consistent temperature readings in challenging industrial environments, regardless of weather conditions.
Quick Specs:
- Provides a 10:1 distance-to-spot ratio
- Highly accurate infrared thermometer for measuring temperatures from -30 to 500
- Offers single laser targeting for accurate and repeatable measurements
- Features IP54 rating against dust and moisture
Please see the related tabs for the FLUKE-62MAX datasheet and compatible accessories.
Properties
| Properties | Fluke 62 MAX Infrared Thermometer Calibrated |
| Description | Conduct non-contact temperature measurements on a variety of equipment including transformers, motors, pumps, panels, breakers, compressors, ducts, steam lines, valves, and vents using this infrared thermometer. It includes a single laser and boasts a durable design capable of withstanding drops of up to 9.8 feet (3 meters). |
| Product Family | Fluke Infrared Thermometer Calibrated |
| Product Type | Thermometer |
Specifications
| Specifications | |
| Temperature range | (-30 °C to 500 °C) (-22 °F to 932 °F) |
| Accuracy (Calibration geometry with ambient temperature 23 °C +/- 2 °C) | ± 1.5 °C or ± 1.5 % of reading, whichever is greater ± 2.0 °C at -10 °C to 0 °C ± 3.0 °C at -30 °C to -10 °C |
| Optical resolution | 10:1 (calculated at 90 % energy) |
| Response time (95 %) | < 500 ms (95 % of reading) |
| Spectral response | 8 to 14 microns |
| Emissivity | 0.10 to 1.00 |
| Display resolution | 0.1 °C (0.2 °F) |
| Repeatability (% of reading) | ± 0.8 % of reading or ± 1 °C (whichever is greater) |
| Auto Capture | (-) |
| Internal memory | (-) |
| Flashlight | (-) |
| Power | 1 AA alkaline battery |
| Battery life | 10 hours with laser and backlight on |
| Weight | 255 g (8.99 oz) |
| Size | (175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches |
| Operating temperature | 0 °C to 50 °C (32 °F to 122°F) |
| Storage temperature | (-20 °C to 60 °C) (-4 °F to 140 °F) (without battery) |
| Operating humidity | Non- condensing @ ≤ 10 °C (50 °F) ≤ 90 % RH @ 10 °C (50 °F) to 30 °C (86 °F) ≤ 75 % RH @ 30 °C (86 °F) to 40 °C (104 °F) ≤ 45 % RH @ 40 °C (104 °F) to 50 °C (122 °F) |
| Operating altitude | 2000 meters above mean sea level |
| Storage altitude | 12,000 meters above mean sea level |
| Drop test | 3 meters |
| Implement standard | Q/ASF01 |
