Fluke 772 Milliamp Process Clamp Meter measures 4-20 mA current without breaking the loop. Features include signal sourcing, simulation, and loop power, ideal for process control
Description

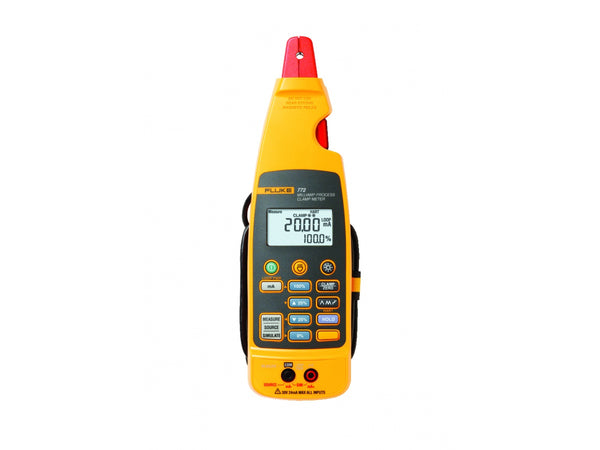

Fluke 772 Milliamp Process Clamp Loop Meter
The Fluke 772 Milliamp Process Clamp Loop Meter is a versatile tool designed for professionals working with 4 to 20 mA control systems. It provides a non-intrusive way to measure current without breaking the loop and includes advanced features like signal sourcing, simulation, and loop power testing, making it an essential instrument for troubleshooting and verifying process control systems.
Key Features:
- Non-Intrusive Measurement: Measures 4 to 20 mA signals without breaking the loop.
- Signal Sourcing: Sources 4 to 20 mA signals to test control system inputs.
- Simulation Capabilities: Simulates 4 to 20 mA signals for system diagnostics.
- Loop Power: Provides 24 V loop power to test transmitters in real-time.
- Min/Max Recording: Captures fluctuations in current for precise troubleshooting.
- Ergonomic Design: Compact and easy to use with a backlit display for low-light conditions.
- Durability: Rugged construction with IP40 rating and 1-meter drop test certification.
Technical Specifications:
- mA Measurement: 0 to 24 mA, accuracy ±0.2% + 2 counts
- mA Source/Simulate: 0 to 24 mA with accuracy ±0.2% + 2 counts
- Loop Power: 24 V for powering field devices
- Display: Backlit digital LCD
- Power: 4 x 1.5 V Alkaline (IEC LR6) batteries
- Operating Temperature: -10°C to 50°C
- Size: 248 x 76 x 41 mm
- Weight: 1 lb
Properties
| Product Name | Fluke 772 Milliamp Process Clamp Meter |
| Product Description | Measures 4-20 mA current without breaking the loop. Features include signal sourcing, simulation, and loop power, ideal for process control. |
| Type | Process Clamp Meter |
| Compatibility | 4 to 20 mA Control Systems |
| Media Type | Process Control Applications |
| Power | 4 x 1.5 V Alkaline (IEC LR6) batteries, 12 hours in mA source into 500 ohms |
| Size | 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in) |
| Weight | 410 g (14.4 oz) |
| Durability | Rugged construction with IP40 rating and 1-meter drop test certification (except the jaw) |
| Operating Conditions | -10°C to 50°C; < 90% humidity below 30°C, < 75% humidity at 30–55°C; 0 to 2000 m altitude |
| Storage Conditions | -25°C to 60°C |
| IP Rating | IP 40 |
| Vibration | Random 2 g, 5 to 500 Hz |
| Shock | 1 meter drop test (except the jaw) |
Specifications
| Diameter of measurable conductor | 0.177” (4.5 mm max) |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -25°C to 60°C |
| Operating humidity | < 90% @ <30°C; < 75% @ 30 to 55°C |
| Operating altitude | 0 to 2000 m |
| IP rating | IP 40 |
| Size | 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in) |
| Weight | 410 g (14.4 oz) |
| Vibration | Random 2 g, 5 to 500 Hz |
| Shock | 1 meter drop test (except the jaw) |
| EMI/RFI | Meets EN61326-1; for current measurement with jaw, add 1 mA to specification for EMC field strengths of 1 V/m up to 3 V/m |
| Temperature coefficient | 0.01%/°C (< 18°C or > 28°C) |
| Power | (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms |
| mA measurement (measured by clamp) | Resolution/Range: 0 to 20.99 mA; Accuracy: 0.2% + 5 counts |
| mA measurement (21.0 mA to 100.0 mA) | Resolution/Range: 21.0 mA to 100.0 mA; Accuracy: 1% + 5 counts |
| mA measurement (measured in series) | Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts |
| mA source | Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts |
| mA simulate | Resolution/Range: 0 to 24.00 mA; Accuracy: 0.2% + 2 counts |
| Loop power | 24 V for powering field devices |
| Signal Sourcing | Sources 4 to 20 mA signals to test control system inputs |
| Simulation Capabilities | Simulates 4 to 20 mA signals for system diagnostics |
| Min/Max Recording | Captures fluctuations in current for precise troubleshooting |
| Display | Backlit digital LCD |
