Call for Price
10 x GE RJ45 ports (including 2 x WAN Ports, 1 x DMZ Port, 7 x Internal Ports), 128GB SSD onboard storage.
Description

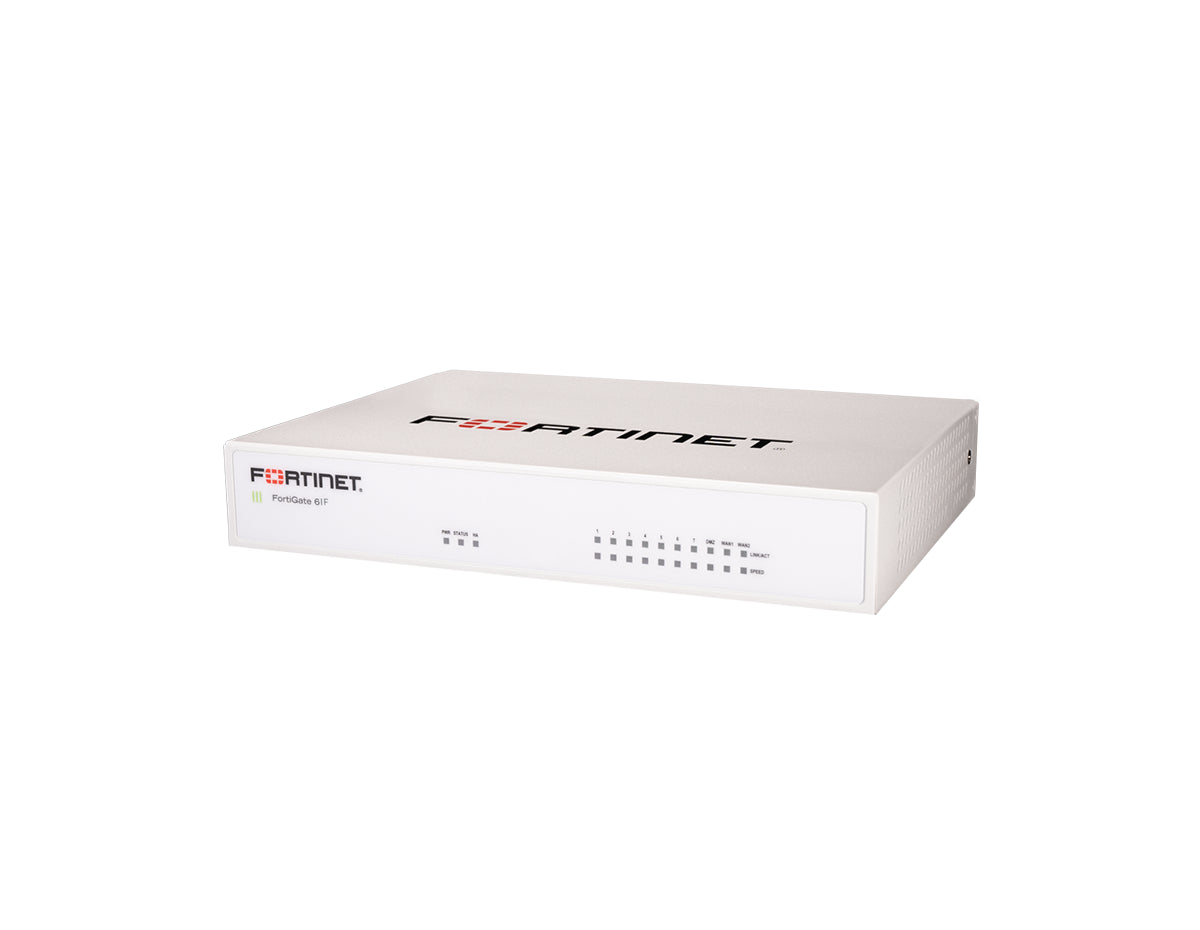

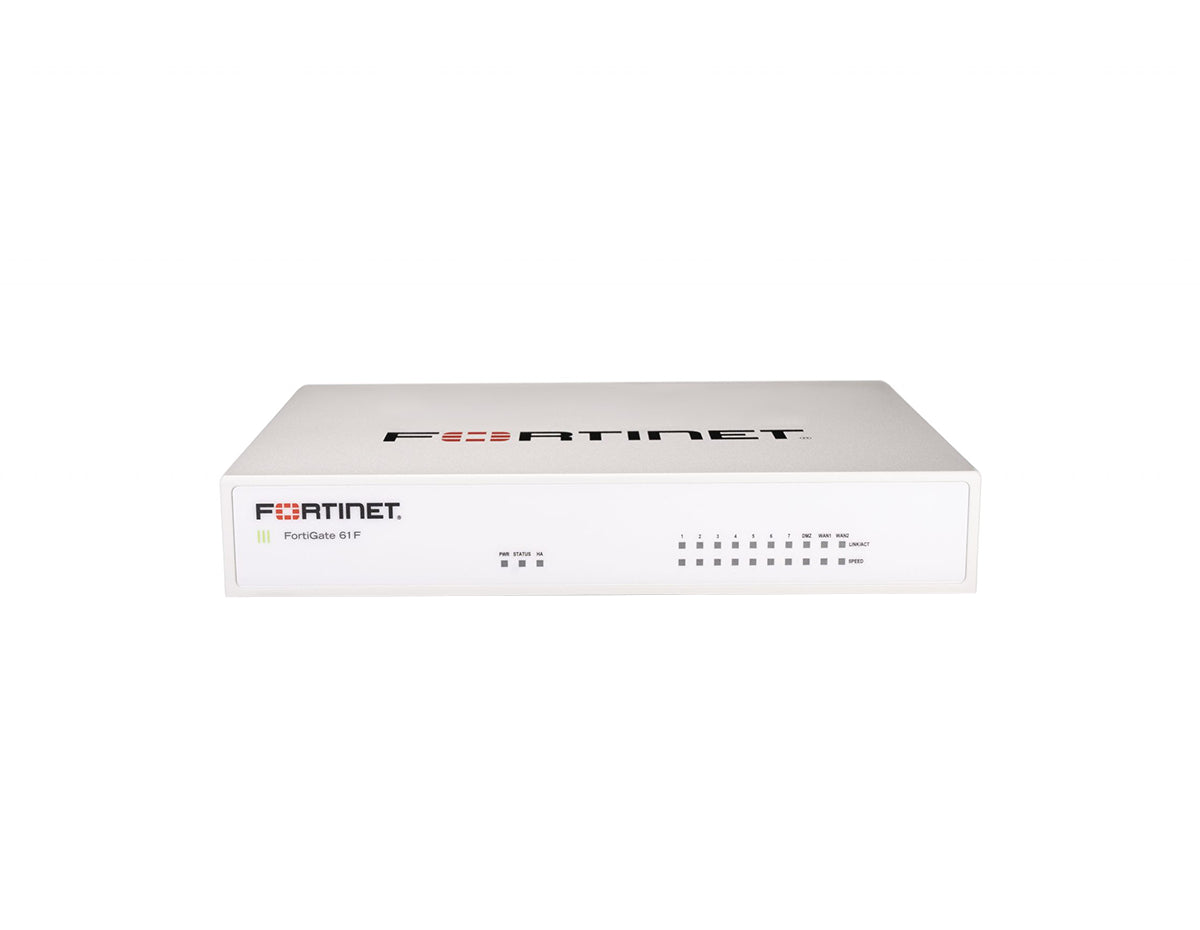

Fortinet FG-61F Firewall
The FortiGate Next-Generation Firewall 61F series is well-suited for small and medium-sized business (SMB) entities seeking enterprise-level security capabilities within budget constraints while maintaining the essential performance and functionality necessary for business expansion. Equipped with a diverse array of AI/ML-based FortiGuard security services and an integrated Security Fabric platform, the FortiGate FortiWiFi 61F series offers an assortment of integrated security services, such as firewall, Virtual Private Network (VPN), antivirus, intrusion prevention, web filtering, and application control. These services protect the network against diverse threats and provide detailed network traffic management.
Quick Specs:
- Recommended for 11-25 User Network
- Site-to-Site VPN Tunnels: 200
- 128 GB SSD
- Firewall Throughput: 9 Mpps
Please see the related tabs for the FG-61F datasheet and compatible accessories.
Properties
| Properties | FG-61F |
| Description |
10x GE RJ45 ports (including 7x Internal ports, 2x WAN ports, 1x DMZ port), 128 GB SSD onboard storage
|
| Product Family |
Early Level Fortigate Firewalls
|
| Product Type | Firewall |
| GE RJ45 Internal Ports | 5 |
| GE RJ45 WAN/DMZ Port | 2/1 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
| Internal Storage | 1 x 128 GB SSD |
| Form Factor | Desktop |
| Power Required |
100–240V AC, 60–50 Hz (External DC Power Adapter)
|
| Maximum Current |
100V AC / 1.0A, 240V AC / 0.6A
|
| Power Consumption (Average / Maximum) | 17.2 W / 18.7 W |
| Dimensions in. | 1.5 x 8.5 x 6.3 |
Specifications
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 10/10/6 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.3 μs |
| Firewall Throughput (Packets Per Second) | 9 Mpps |
| Concurrent Sessions (TCP) | 700 000 |
| New Sessions/Second (TCP) | 30.000 |
| Firewall Policies | 5.000 |
| IPsec VPN Throughput (512 byte packets) | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 500 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 |
| IPS Throughput | 1.4 Gbps |
| SSL Inspection Throughput | 630 Mbps |
| Application Control Throughput | 1.8 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 700 Mbps |
| CAPWAP Throughput | 890 Mbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Operating Temperature | 32–104°F (0–40°C) |
| Regulatory Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
| Certifications | USGv6/IPv6 |
Accessories
| SP-RACKTRAY-02 |
Rack mount tray for all FortiGate E series and F series desktop models are backwards compatible with SP-RackTray-01
|
| SP-FG60E-PDC-5 |
Pack of 5 AC power adaptors for FG/FWF 60E/61E, 60F/61F, and 80E/81E
|
| SP-FG60F-MOUNT-20 |
Pack of 20 wall mount kits for FG/FWF-60F and FG/FWF-80F series
|
