Call for Price

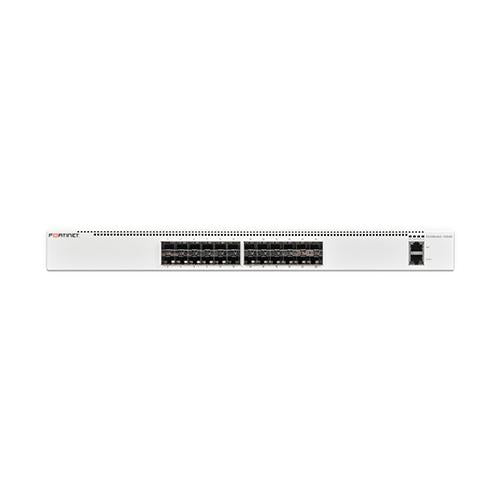

Layer 2/3 FortiGate switch controller compatible switch with 24 x SFP / SFP+ slots GE/10 GE capable with dual AC power supplies
Description
The FortiSwitch family delivers outstanding security, performance, and manageability. FortiSwitch is the right choice for threat conscious businesses of all sizes. Single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Properties
| Properties | FS-1024D |
| Description | Layer 2/3 FortiGate switch controller compatible switch with 24x GE/10 GE SFP/SFP+ slots. Dual AC power supplies. |
| Product Family | FortiSwitch |
| Product Type | Switch |
| Total Network Interfaces | 24x GE/10 GE SFP+ ports |
| Dedicated Management 10/100/1000 Ports |
1 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | – |
| PoE Power Budget (single/dual PSU) |
– |
| Mean Time Between Failures | > 10 years |
Specifications
| Switching Capacity (Duplex) | 480 Gbps |
| Packets Per Second (Duplex) | 714 Mpps |
| Mac Address Storage | 128 K |
| Network Latency | < 800ns |
| VLANs Supported | 4 K |
| IPv4/IPv6 Routing | Yes |
| Link Aggregation Group Size | Up to 24 |
| Total Link Aggregation Groups | Up to number of ports |
| Queues/Port | 8 |
| Packet Buffers | 9 MB |
| DRAM | 2 GB |
| NAND | 128 MB |
| Dimensions in. | 1.71 x 18.11 x 17.26 |
| Power Required | 100240V AC, 50-60 Hz |
| Power Supply | Dual hot swappable AC |
| Power Consumption (Average / Maximum) | -/ 140 W |
| Heat Dissipation | 369.87 BTU/h |
| Operating Temperature | 32°104°F (0°40°C) |
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
