Call for Price
L2+ managed POE switch with 24GE + 4SFP+, 12port POE with max 185W limit and smart fan temperature control
Description

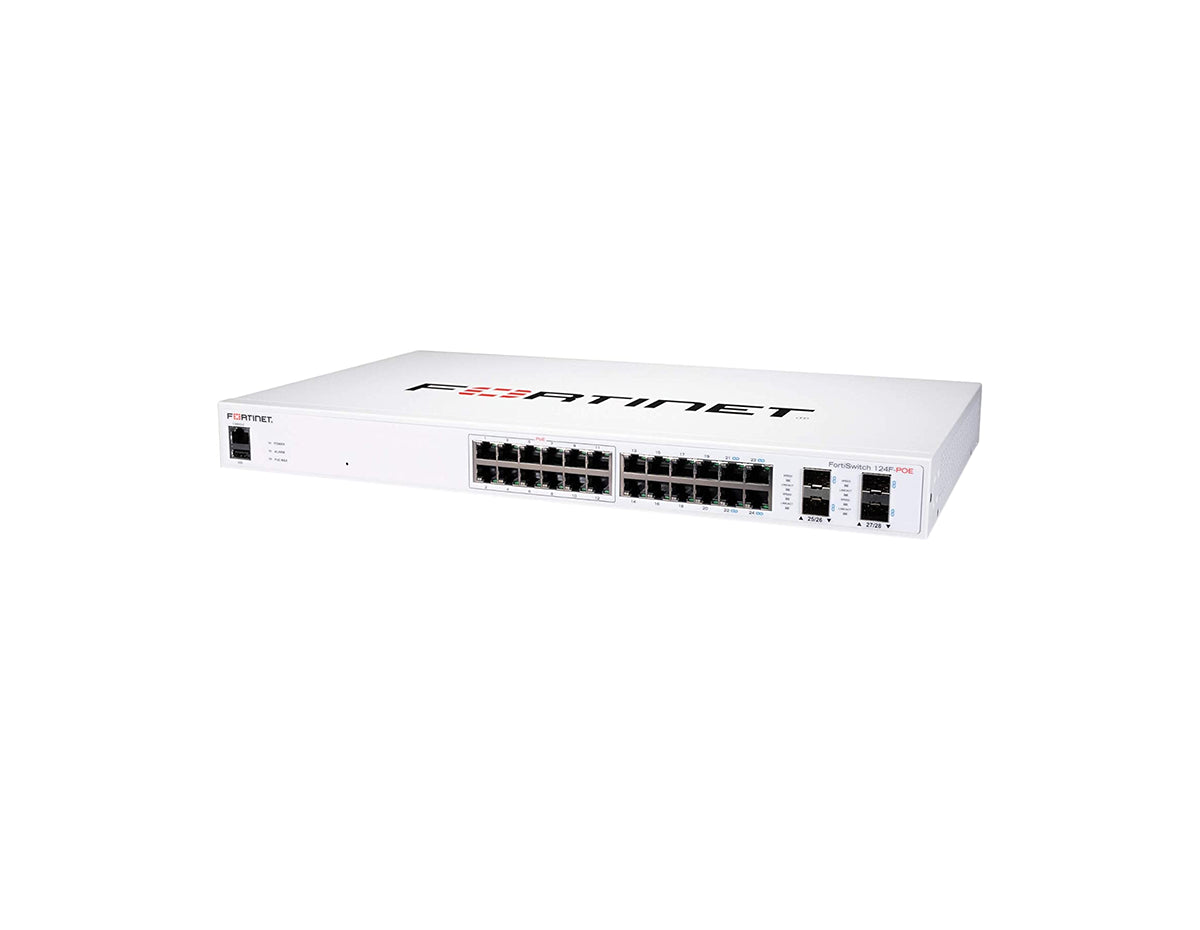

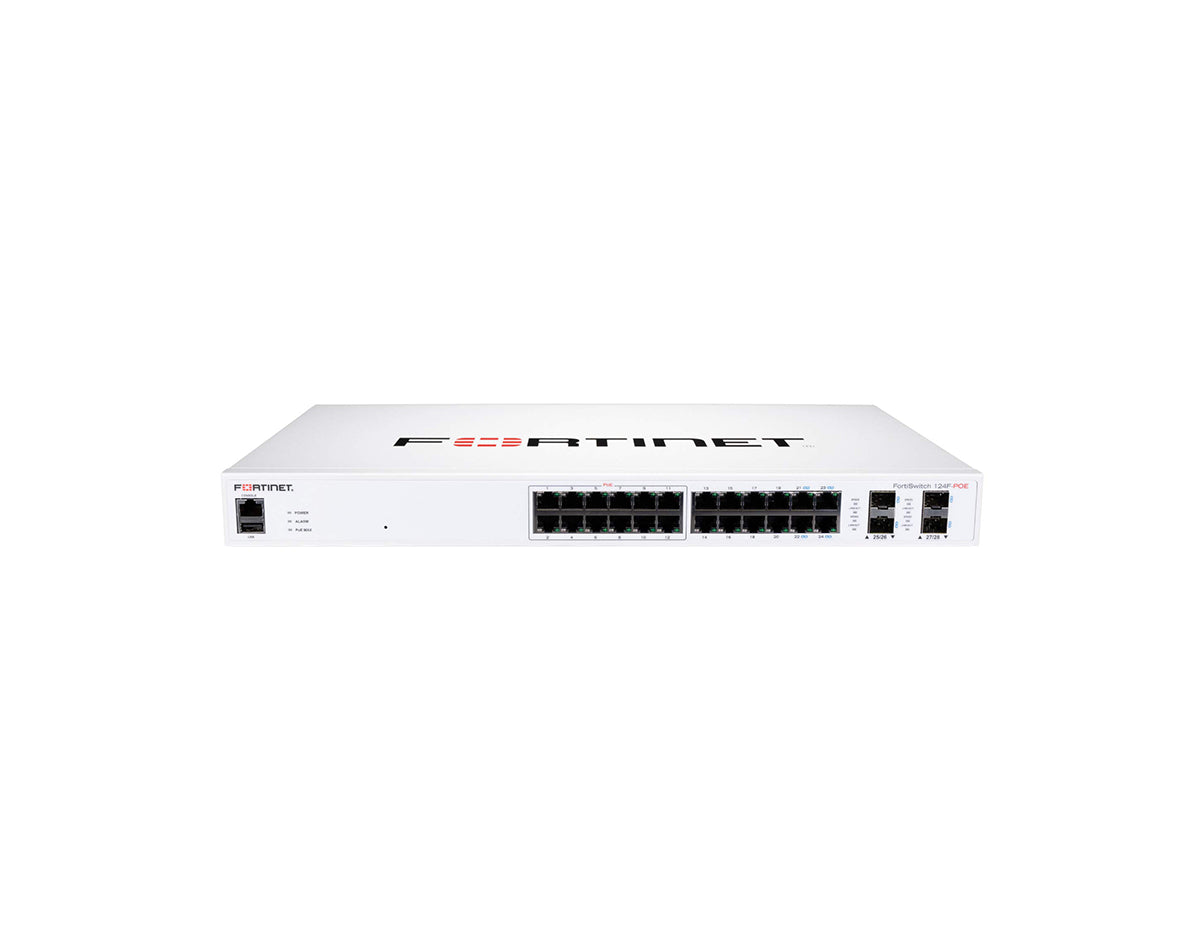

Fortinet FS-124F-POE Switch
The FS-124F-POE is a 24-port switch that supports PoE+ on 12 ports with maximum PoE+ budget of 185 W. It offers reliable connectivity and flexibility as it has 4 SFP+ uplinks. It can be integrated into the FortiGate NGFW security fabric via FortiLink. It offers centralized management and converged security. It is ideal for SD-Branch and campus deployments.
Quick Specs:
- 24x GE RJ45 ports
- 4x 10GE SFP+ uplinks
- 128 Gbps of switching capacity
- Rack-mountable
- Layer 2/3 functionalities
Please see the related tabs for the FS-124F-POE datasheet and compatible accessories.
Properties
| Properties | FS-124F-POE |
| Description | Layer 2 FortiGate switch controller compatible PoE+ switch with 24 GE RJ45 + 4 10G SFP+ ports, 12 port PoE with maximum 185 W limit. |
| Product Family | FortiSwitch |
| Product Type | Switch |
| Total Network Interfaces | 24x GE RJ45 and 4x 10GE SFP+ |
| Dedicated Management 10/100/1000 Ports |
0 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 12 (802.3af/at) |
| PoE Power Budget (single/dual PSU) |
185 W |
| Mean Time Between Failures | > 10 years |
Specifications
| Switching Capacity (Duplex) | 128 Gbps |
| Packets Per Second (Duplex) | 190 Mpps |
| MAC Address Storage | 32 K |
| Network Latency | < 1µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | 16 |
| Packet Buffers | 2 MB |
| DRAM | 512 MB DDR3 |
| FLASH | 64 MB |
| ACL | 768 |
| Spanning Tree Instances | 16 |
| Route Entries (IPv4/IPv6) | – |
| Multicast Route Entries | – |
| Host Entries | – |
| Dimensions in. | 1.73 x 10.24 x 17.32 |
| Power Required | 100240V AC, 50-60 Hz |
| Power Supply | AC built in |
| Redundant Power | No |
| Power Consumption (Average / Maximum) | 235.9 W / 237.4 W |
| Heat Dissipation | 102.982 BTU/h |
| Operating Temperature | 32°113°F (0°45°C) |
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
