Call for Price

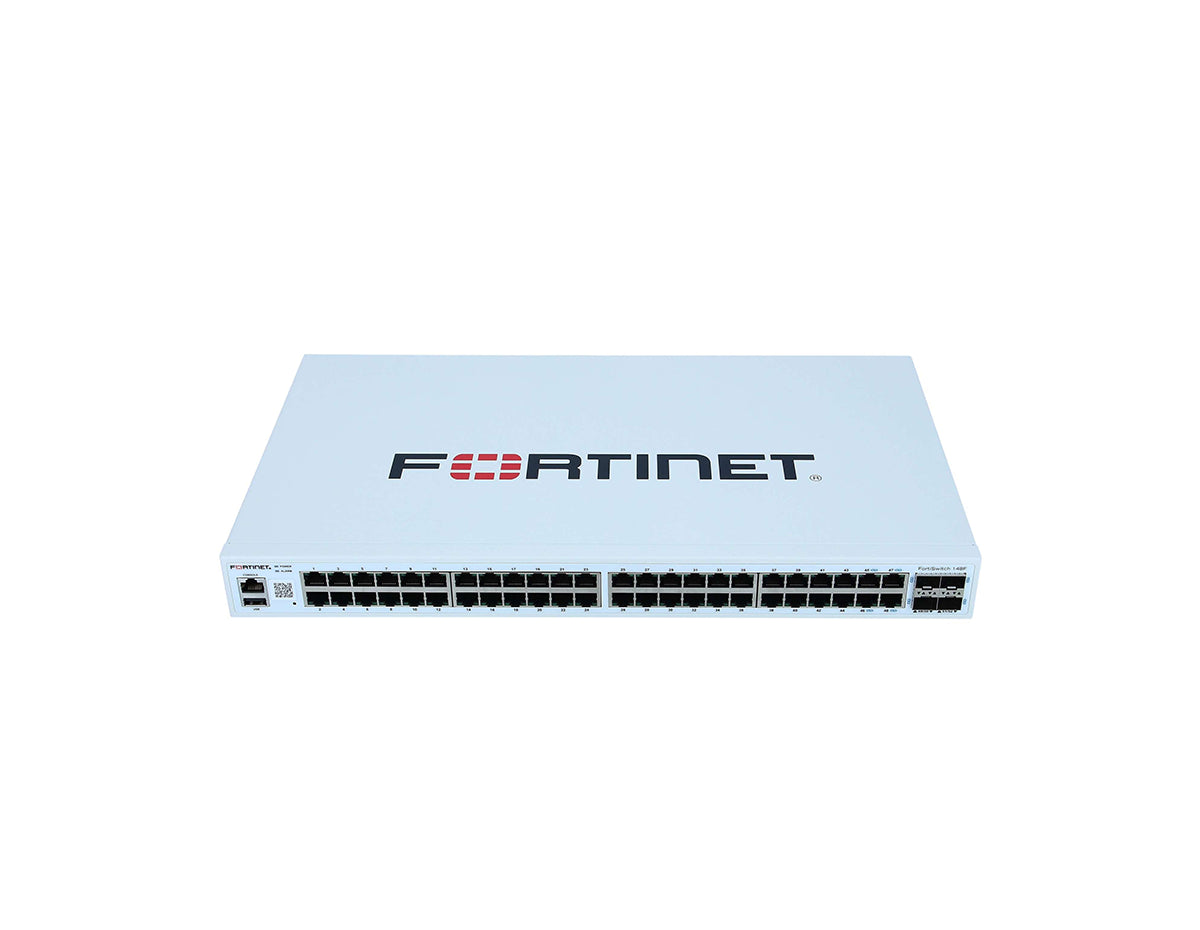

FortiSwitch-148F is a performance/price competitive L2+ management switch with 48x GE port + 4x SFP+ port + 1x RJ45 console
Description
The FortiSwitch family delivers outstanding security, performance, and manageability. FortiSwitch is the right choice for threat conscious businesses of all sizes. Single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Properties
| Properties | FS-148F |
| Description | Layer 2 FortiGate switch controller compatible switch with 48 GE RJ45 + 4 10G SFP+ ports. |
| Product Family | FortiSwitch |
| Product Type | Switch |
| Total Network Interfaces | 48x GE RJ45 and 4x 10GE SFP+ |
| Dedicated Management 10/100/1000 Ports |
0 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 0 |
| PoE Power Budget (single/dual PSU) |
0 |
| Mean Time Between Failures | > 10 years |
Specifications
| Switching Capacity (Duplex) | 176 Gbps |
| Packets Per Second (Duplex) | 260 Mpps |
| MAC Address Storage | 32 K |
| Network Latency | < 1µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | 16 |
| Packet Buffers | 2 MB |
| DRAM | 512 MB DDR3 |
| FLASH | 64 MB |
| ACL | 768 |
| Spanning Tree Instances | 16 |
| Route Entries (IPv4/IPv6) | – |
| Multicast Route Entries | – |
| Host Entries | – |
| Dimensions in. | 1.73 x 10.24 x 17.32 |
| Power Required | 100240V AC, 50-60 Hz |
| Power Supply | AC built in |
| Redundant Power | No |
| Power Consumption (Average / Maximum) | 55.8 W / 57 W |
| Heat Dissipation | 194.37 BTU/h |
| Operating Temperature | 32°113°F (0°45°C) |
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
