Call for Price
Fiber Mode
Description

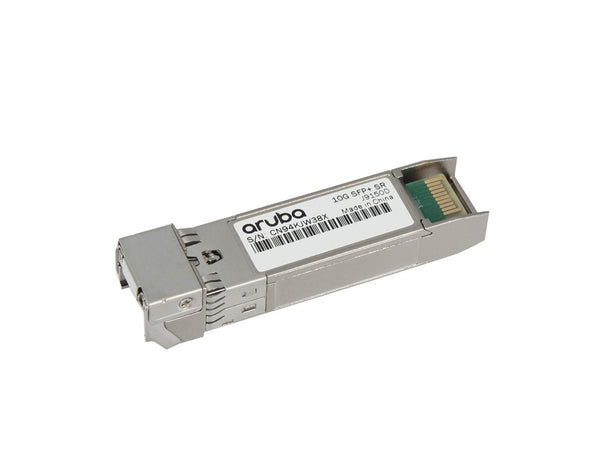

HPE Aruba J9150D 10G SFP+ LC SR Transceiver
The HPE Aruba J9150D is a 10G SFP+ LC SR 300m MMF transceiver designed for high-speed data transmission over multimode fiber. Ideal for various Aruba switches, it ensures reliable and efficient network performance.
Quick Specs:
- Product Name: Aruba 10G SFP+ LC SR 300m MMF XCVR (J9150D)
- Digital Optical Monitoring: Yes (1990-4391, 1990-4175)
- Central Wavelength: 850 nm
- Fiber Mode: MMF
- Fiber Diameter: 50/125 µm
- Transmission Distance:
- 4700 MHz*km (OM4): 400 m (1312.34 ft)
- 2000 MHz*km (OM3): 300 m (984.25 ft)
- 500 MHz*km (OM2): 82 m (269.03 ft)
- 400 MHz*km: 66 m (216.54 ft)
- 200 MHz*km (OM1): 33 m (108.27 ft)
- 160 MHz*km: 26 m (85.30 ft)
Supported Devices:
- Aruba 2530 Series
- Aruba 2920 Series
- Aruba 2930F Series
- Aruba 3810M Series
Optical Parameters:
- Transmit Power: –7.3 to –1 dBm
- Receive Power: –9.9 to +0.5 dBm
Physical Characteristics:
- Dimensions: 0.6 x 2.2 x 0.5 in
- Weight: 0.1 lb
Properties
| Product Name | J9150D |
| Description | HPE Aruba J9150D, a 10G SFP+ LC LR transceiver module designed for high-speed data transmission over single-mode fiber. |
| Transceiver Type | SFP+ (Small Form-Factor Pluggable Plus) |
| Data Rate | 10 Gbps |
| Connector Type | LC Duplex |
| Wavelength | 1310 nm |
| Maximum Distance | 10 km (6.2 miles) |
| Fiber Type | Single-mode fiber |
| Digital Diagnostic Monitoring | Yes |
| Hot-Swappable | Yes |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Power Consumption | 1W (maximum) |
| Dimensions | 5.6 cm x 1.4 cm x 1.2 cm (2.2 in x 0.55 in x 0.47 in) |
| Weight | 0.018 kg (0.04 lb) |
| Compatibility | Compatible with HPE Aruba networking equipment |
| Usage | Data centers, enterprise networks, and telecommunications |
| Durability | Designed for long-distance, high-speed data transmission |
Specifications
| Form Factor | SFP+ MSA compliant |
| Supported Standards | IEEE 802.3ae (10GBASE-LR) |
| Certifications | CE, FCC, RoHS compliant |
| Environmental Safety | Complies with environmental standards for electronic products |
| EMC Compliance | Meets international EMC standards for network equipment |
| Transmission Media | Single-mode optical fiber |
| Signal Integrity | Supports digital diagnostic monitoring for real-time performance tracking |
| Hot-Swappable | Yes, supports hot-swapping without network interruption |
| MTBF | 1,500,000 hours |
| Security | Supports encrypted communication with compatible devices |
| Power Supply | 3.3V DC |
| Monitoring | Includes real-time monitoring for temperature, power, and signal levels |
| Latency | Low latency for high-speed data transmission |
| Installation | Plug-and-play installation |
| Deployment | Ideal for extending network reach in large-scale enterprise or service provider environments |
| Firmware Compatibility | Firmware updates supported for enhanced functionality |
