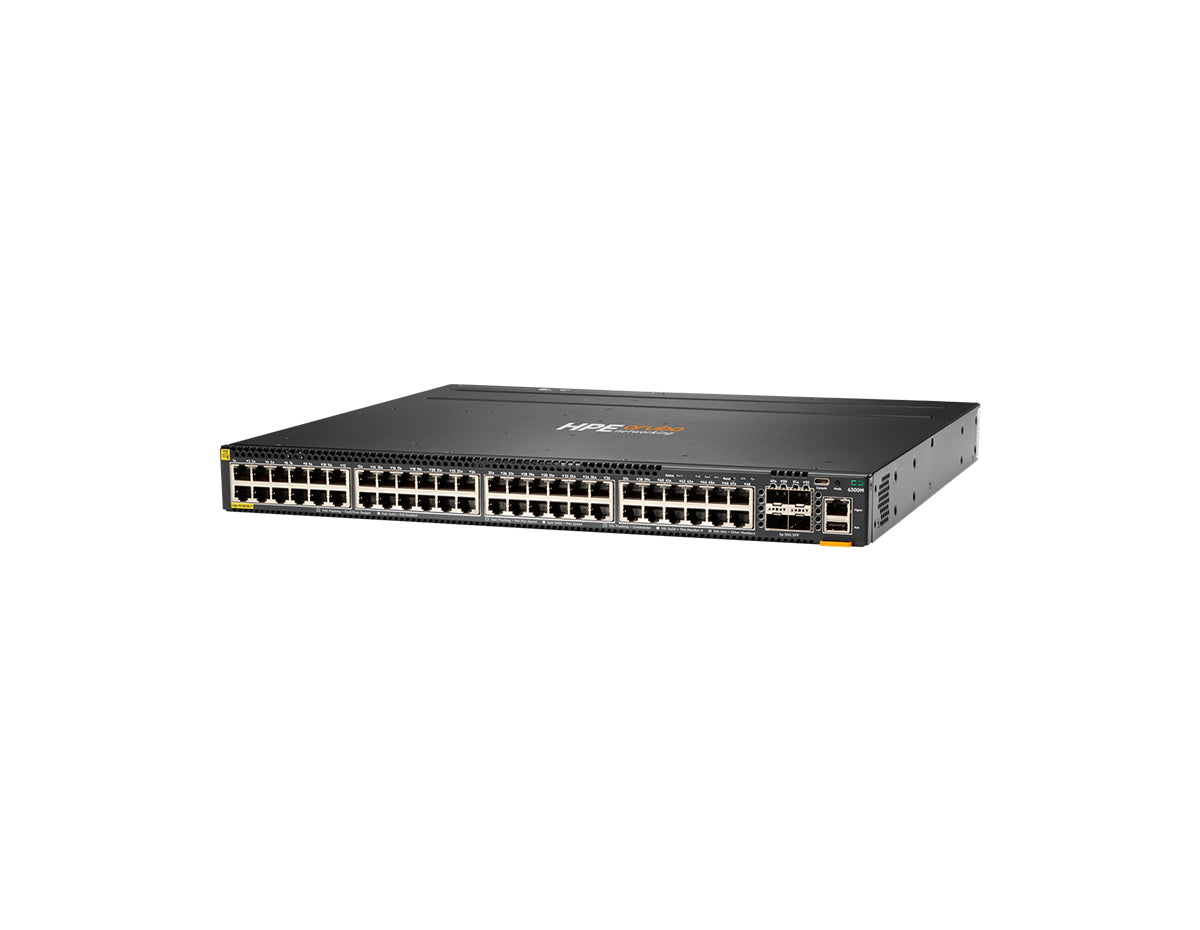

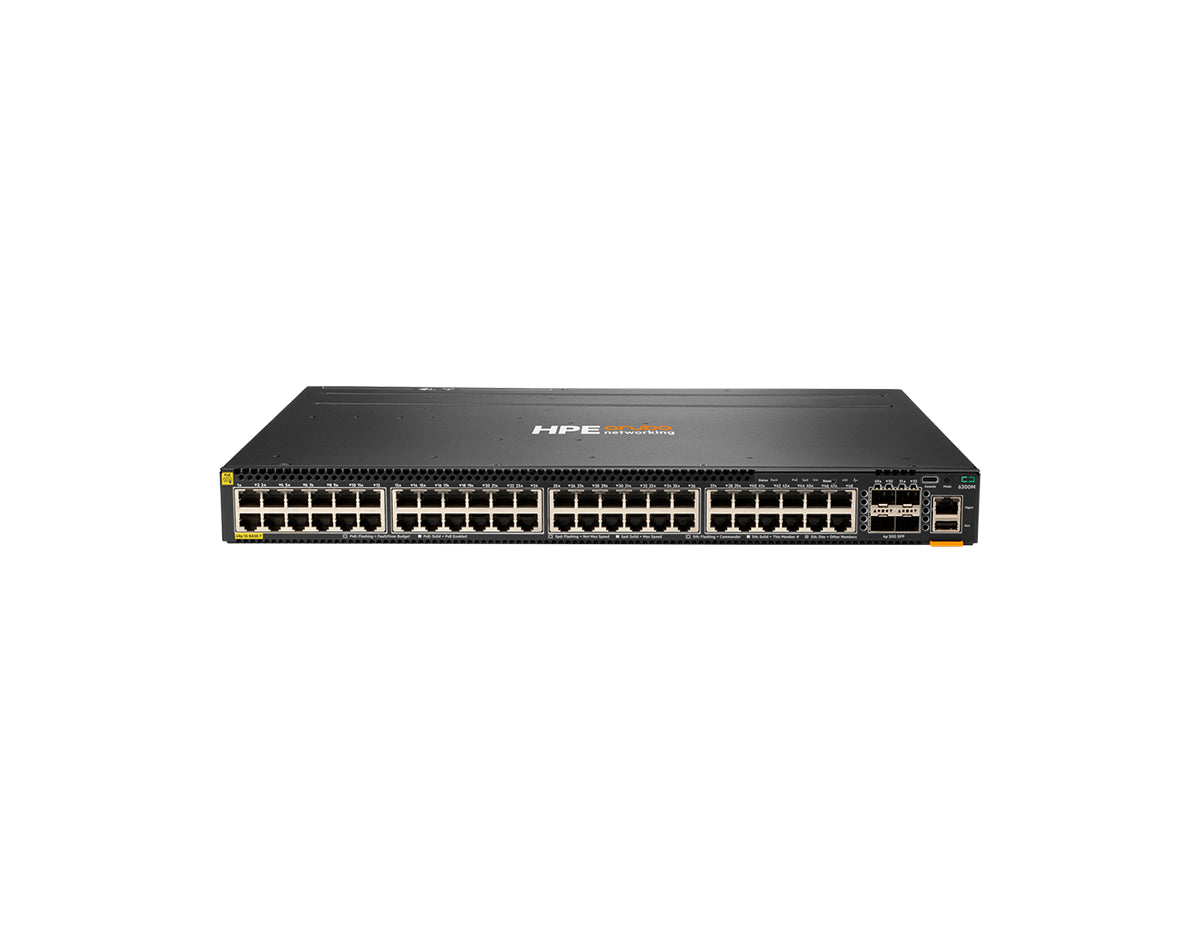

HPE Aruba CX 6300: High-Performance 48-Port PoE+ Switch (JL661A)
The HPE Aruba CX 6300 48-Port PoE+ Switch is designed for high-performance, scalable enterprise networks. Featuring 48 PoE+ Gigabit Ethernet ports and 4 SFP56 uplink ports, this switch ensures reliable connectivity for devices like IP phones, cameras, and access points. With advanced Layer 3 routing, this switch offers a robust solution for modern networking needs while supporting up to 30W per port for powering connected devices.
Key Features:
- 48 x 1GbE PoE+ Ports: Provides up to 30W per port, ideal for powering connected PoE devices.
- 4 x SFP56 Uplink Ports: Supports 1G, 10G, 25G, and 50G uplinks for scalable network expansion.
- Advanced Layer 3 Routing: Offers routing protocols like OSPF and BGP for enhanced traffic management.
- Energy-Efficient Design: Compliant with energy-saving standards, reducing power consumption during low activity periods.
- Secure Access Control: Features ACLs and 802.1X authentication for secure network access.
Technical Overview:
- Recommended for: Enterprise networks, branch offices, and educational institutions.
- Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports, 4 x 1G/10G/25G/50G SFP56 uplink ports.
- PoE Power Budget: 370W.
- Switching Capacity: 880 Gbps.
- Forwarding Rate: 654 Mpps.
- Management: Managed via Aruba Central, Web GUI, CLI, SNMP.
- Energy Efficiency: Compliant with IEEE 802.3az standards.
You can check the related tab for the HPE Aruba CX 6300: High-Performance 48-Port PoE+ Switch (JL661A) datasheet.
Properties
| Properties | JL661A 48-Port PoE+ Switch |
| Description | The JL661A is a 48-port PoE+ switch, offering 48 Gigabit Ethernet ports with PoE+ support for efficient power delivery to devices. |
| Product Family | CX6300 Series |
| Product Type | Ethernet Switch |
| Ports and Slots | 48x ports 10/100/1000 BaseT PoE+ ports supporting up to 30W per port 4x 1G/10G/25G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM port 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App |
| Power supplies | 2 field-replaceable, hotswappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs JL086A JL087A JL670A Max PoE Power: 1440W Max PoE Power: 1440W |
| Frequency | 50/60 Hz |
| Voltage | JL670A PSU: 110V-120V/208V-240V JL086A PSU: 100V-240V JL087A PSU: 110V-240V |
| Current |
JL670A PSU: 11A/8A JL086A PSU: 8A/3.5A JL087A PSU: 12A/5A
|
| Power Consumption (230 VAC) |
With JL086A PSU: Idle: 70W 100% Traffic Rate: 90W With JL087A PSU: Idle: 71W 100% Traffic Rate: 88W With JL670A PSU: Idle: 73W 100% Traffic Rate: 96W
|
| Fans | 2 replaceable and hotswappable |
| Dimensions | 1.73” x 17.4” x 15.2” |
| Weight | 5.72 kg (12.61 lbs) |
| Mounting and enclosure |
Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
|
Specifications
| Specifications | JL661A 48-Port PoE+ Switch |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Memory and Flash | 8 GB DDR4 32 GB eMMC |
| Packet Buffer | 8 MB Packet Buffer Memory |
| System Switching Capacity | 880 Gbps |
| System Throughput Capacity | 660 Gbps |
| Average Latency (LIFO-64-bytes packets) | 1Gbps: 2.28μSec 10Gbps: 1.46μSec 25Gbps: 1.90μSec 50Gbps1: 3.49μSec |
| Switched Virtual Interfaces (dual stack) | 1,024 |
| IPv4 Host Table (ARP) | 49,152 |
| IPv6 Host Table (ND) | 49,152 |
| IPv4 Unicast Routes | 61,000 |
| IPv6 Unicast Routes | 61,000 |
| IPv4 Multicast Routes | 8,192 |
| IPv6 Multicast Routes | 8,192 |
| MAC Table Capacity | 32,768 |
| IGMP Groups | 8,192 |
| MLD Groups | 8,192 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 20,480/5,120/20,480 |
| Stack Size | 10 members |
| Max. Stacking Distance | Up to 10 kms with long range transceivers |
| Stacking Bandwidth | 200 Gbps |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5,000 ft derate -1°C for every 1,000 ft from 5,000 ft to 10,000 ft.
|
| Primary Airflow | Front and side to back |
| Safety | US: UL 60950-1 2nd Ed. |
| Emissions | US: FCC part 15, Class A |
| Lasers |
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only)
|
| Immunity | CISPR 24 / CISPR 35 EN 55024:2010 / EN 55035:2017 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3 EN 61000-3-3 |
Accessories
| Accessories | |
| JL669B | • Aruba X751 Port to Power Fan Tray |
| JL761A | Aruba 6300M Power-to-Port Fan Tray |
| J9583A | • HPE X410 1U Universal 4-post Rack Mount Kit |
| J9583B | • Aruba X414 1U Universal 4-post Rack Mounting Kit |
| R9G48A | • Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A | • Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | • Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | • Aruba USB-C to USB-C PC-to-Switch Cable |
| S1H23A | • HPE Aruba Networking CX Switch Bluetooth Adapter |
| JL487A | Aruba 25G SFP28 to SFP28 0.65m Direct Attach Copper Cable |
| JL488A | Aruba 25G SFP28 to SFP28 3m Direct Attach Copper Cable |
| JL489A | Aruba 25G SFP28 to SFP28 5m Direct Attach Copper Cable |
| R0M46A | Aruba 50G SFP56 to SFP56 0.65m DAC Cable |
| R0M47A | Aruba 50G SFP56 to SFP56 3m DAC Cable |
| Cables | |
| J9281D | • Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable |
| J9283D | • Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| Power Supplies | |
| JL085A | • Aruba X371 12VDC 250W 100-240VAC Power Supply |
| JL086A | • Aruba X372 54VDC 680W 100-240VAC Power Supply |
| JL087A | • Aruba X372 54VDC 1050W 100-240VAC Power Supply |
| JL670A | • Aruba X372 54VDC 1600W 100-240VAC Power Supply |
| JL760A | • Aruba X371 12VDC 250W 100-240VAC Power-to-Port Power Supply |
| JL757A | • Aruba 6300M 250W 36-72VDC PSU |
| JL758A | • Aruba 6300M 1050W 36-72VDC |
| Transceivers | |
| J9054D | Aruba 100M SFP LC FX 2km MMF XCVR (J9054D) |
| J4858D | • Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | • Aruba 1G SFP LC LX 10km SMF Transceiver |
| J4860D | • Aruba 1G SFP LC LH 70km SMF Transceiver |
| J8177D | • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| JL745A | • Aruba 1G SFP LC SX 500m MMF TAA Transceiver |
| JL746A | • Aruba 1G SFP LC SX 500m SMF TAA Transceiver |
| JL747A | • Aruba 1G SFP LC SX 500m Cat5 TAA Transceiver |
| J9150D | • Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E | • Aruba 10G SFP+ LC LR 10km SMF Transceiver |
| J9153D | • Aruba 10G SFP+ LC ER 40km SMF Transceiver |
| JL563B | • Aruba 10GBASE-T SFP+ RJ-45 30m Cat6A Transceiver |
| J9152D | • Aruba 10G SFP+ LC LRM 220m MMF Transceiver |
| JL748A | • Aruba 10G SFP+ LC SR 300m MMF TAA Transceiver |
| JL749A | • Aruba 10G SFP+ LC SR 10km SMF TAA Transceiver |
| JL484A | Aruba 25G SFP28 LC SR 100m MMF Transceiver |
| JL485A | Aruba 25G SFP28 LC SR 400m MMF Transceiver |
| JL486A | Aruba 25G SFP28 LC SR 10km SMF Transceiver |
| R0M48A | Aruba 50G SFP56 LC SR 100m MMF XCVR |
