Description

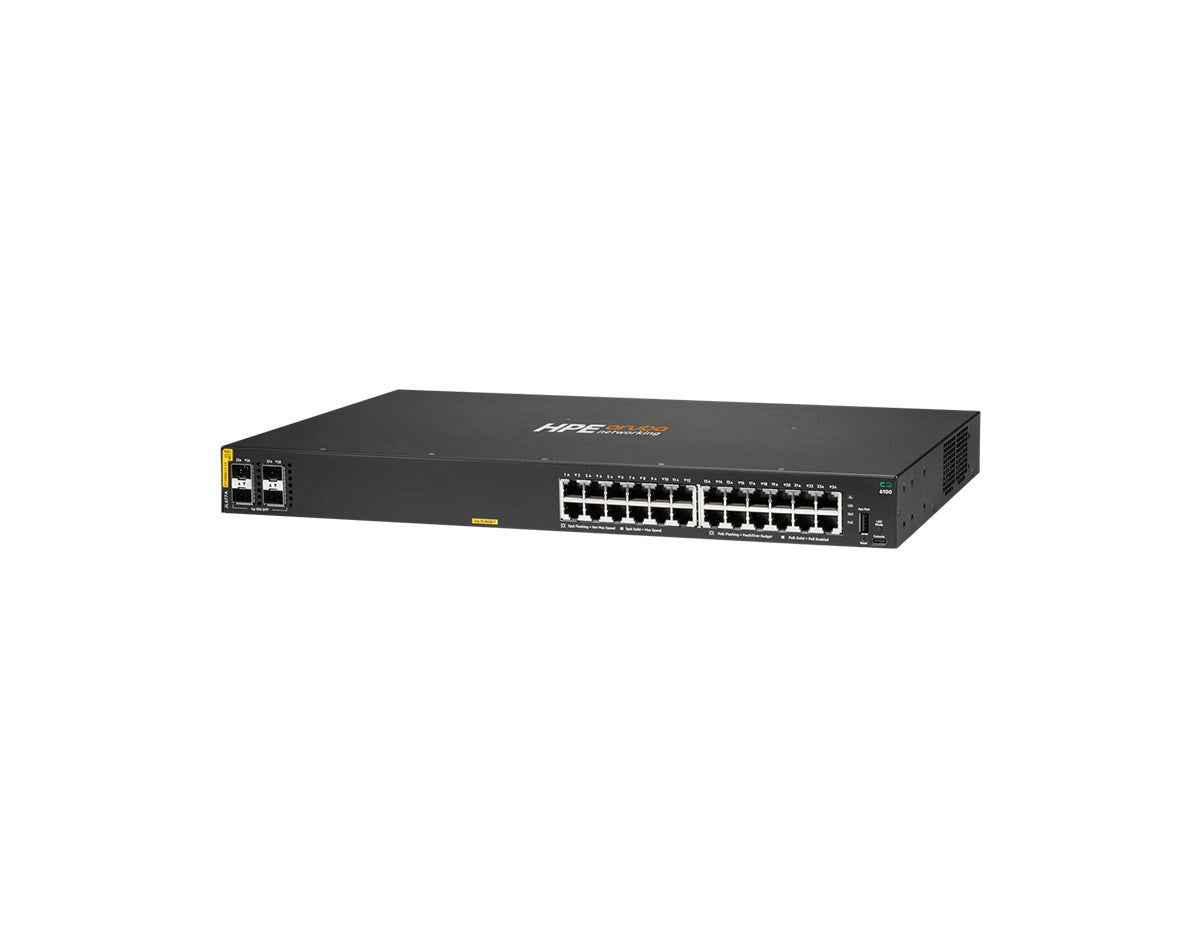

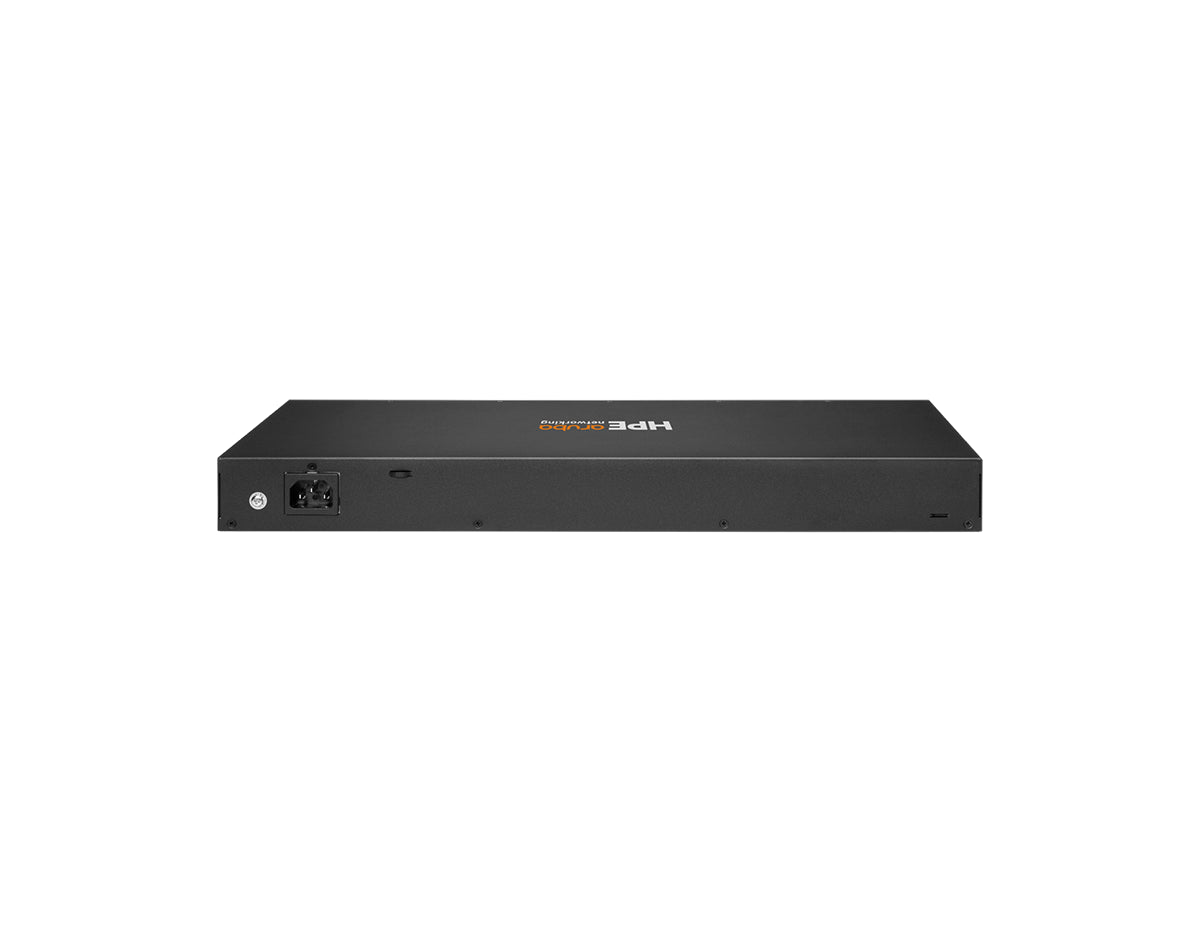

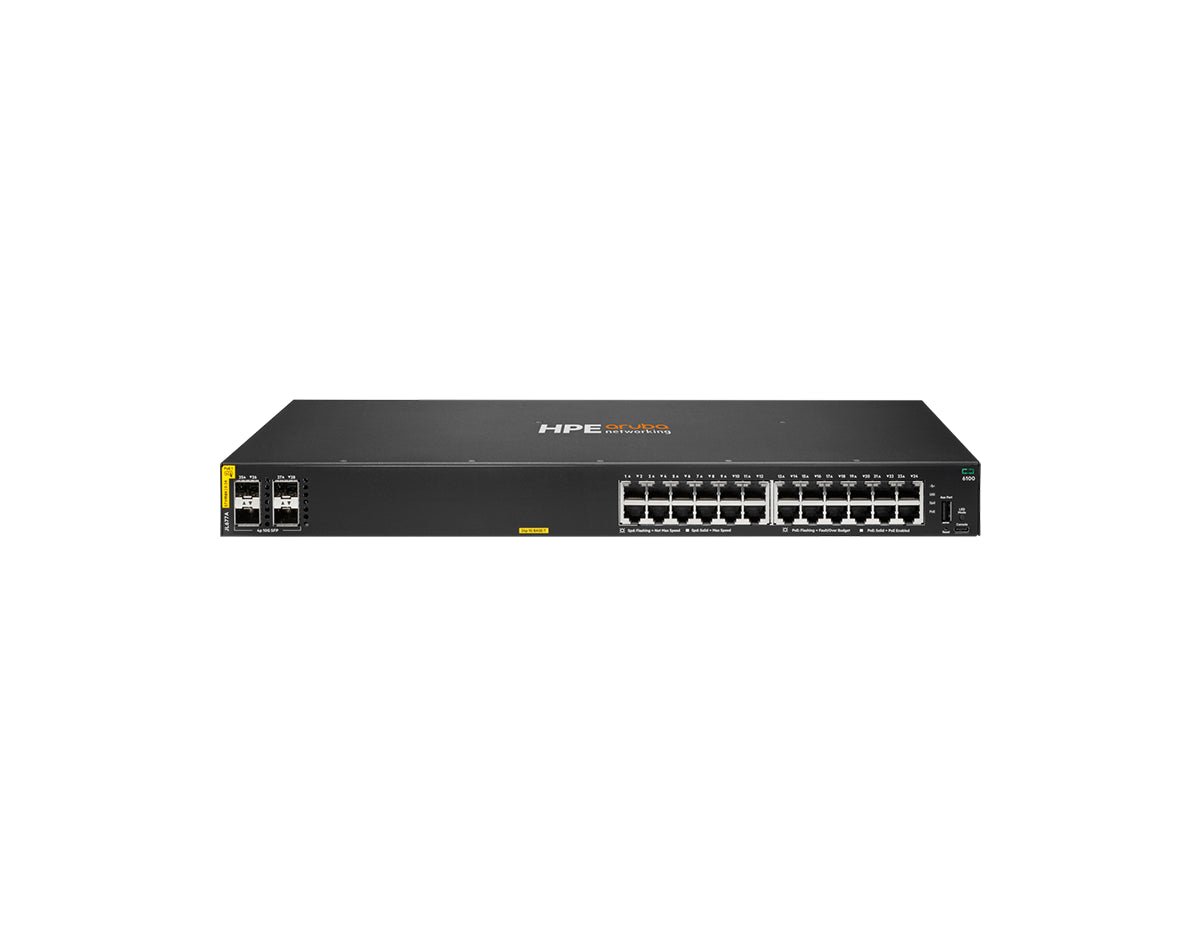

HPE Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)
The HPE Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch delivers reliable, high-performance networking with Power over Ethernet (PoE) support for small to medium-sized businesses. With 24 Gigabit Ethernet PoE ports, this switch provides up to 30W per port, ideal for powering IP phones, cameras, and access points. It also features 4 SFP+ uplinks for scalable 10GbE connectivity and a 370W PoE power budget, making it a robust choice for growing networks.
Key Features:
- 24 x Gigabit Ethernet PoE Ports: Supports up to 30W per port, perfect for powering connected devices such as IP phones and cameras.
- 4 x SFP+ Uplink Ports: Provides high-speed 10GbE fiber uplink options for flexible network expansion.
- Layer 2 Switching: Includes VLAN, QoS, and traffic management features for optimized network performance.
- 370W PoE Power Budget: Delivers sufficient power for multiple PoE-enabled devices across the network.
- Energy-Efficient Design: Compliant with energy-saving standards, reducing power consumption during periods of low activity.
Technical Overview:
- Recommended for: Small to medium-sized businesses, branch offices, and educational institutions.
- Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet PoE Class4 ports.
- Uplink Modules: 4 x SFP+ 10GbE uplinks for scalable fiber connectivity.
- PoE Power Budget: 370W.
- Switching Capacity: 128 Gbps.
- Forwarding Rate: 95.23 Mpps.
- Management: Managed via Aruba Central, Web GUI, CLI, SNMP.
- Energy Efficiency: Compliant with energy-saving standards.
You can check the related tab for the HPE Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) datasheet.
Properties
| Properties | 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) |
| Description | The Aruba 6100 24G PoE+ 4SFP+ Switch (JL677A) offers 24 Gigabit Ethernet ports with PoE+ support and 4 SFP+ uplink ports, providing reliable power and high-speed connectivity in a compact design. |
| Product Family | CX6100 Series |
| Product Type | Ethernet Switch |
| Ports and Slots | 24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port |
| Power supplies | Fixed power supply Up to 370W of Class 4 PoE Power |
| Frequency | 50/60 Hz |
| Voltage | 100-127 VAC / 200-240 VAC |
| Current | 4.6 A / 2.3 A |
| Power Consumption (230 VAC) | Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W |
| Fans | Fixed fans |
| Dimensions | 1.73” x 17.4” x 10.56” |
| Weight | 4.19kg (9.24 lbs) |
| Mounting and enclosure |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting.
|
Specifications
| Specifications | 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) |
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory and Flash | 4 GB DDR3 16 GB eMMC |
| Packet Buffer | 1 MB |
| Model Switching Capacity | 128 Gbps |
| Model Throughput Capacity | 95.2 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 1.5 μSec , 10 Gbps: 1.8 μSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
|
| Acoustic |
Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander) = 24.3 dB
|
| Primary Airflow | Side-to-side |
| Safety | EN 60950-1/IEC 60950-1 EN 60825 CAN/CSA C22.2 No. 60950, 2nd Edition UL 60950-1, 2nd Edition |
| Emissions | FCC Class A VCCI Class A EN 55022/CISPR 22 Class A |
| Lasers | EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only) |
| Immunity | EN 55024, CISPR 24 EN 55024, CISPR 24 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
Accessories
| Accessories | |
| JL742A | Aruba X511 12-port Cable Guard |
| J9583B |
• Aruba X414 1U Universal 4-post Rack Mounting Kit
|
| R9G48A | • Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A | • Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | • Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | • Aruba USB-C to USB-C PC-to-Switch Cable |
| Cables | |
| J9281D |
• Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
|
| J9283D |
• Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
|
| Transceivers | |
| J4858D | • Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | • Aruba 1G SFP LC LX 10km SMF Transceiver |
| J8177D | • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
| J9150D | • Aruba 10G SFP+ LC SR 300m MMF Transceiver |
| J9151E | • Aruba 10G SFP+ LC LR 10km SMF Transceiver |
